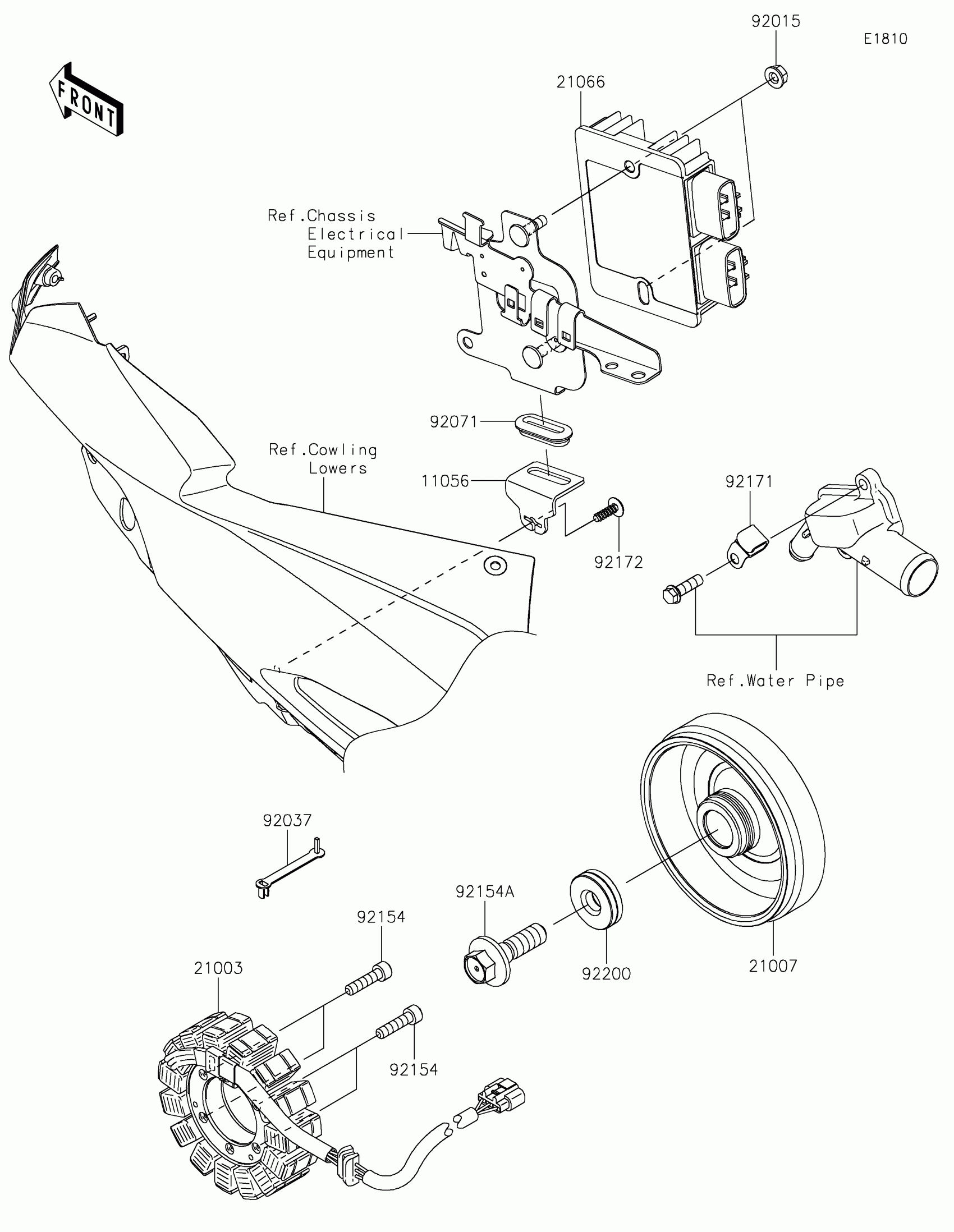

Kawasaki Ninja® ZX™-10R KRT EDITION Generator Diagram

Description

Price

11056

BRACKET,REGULATOR

11056-7812

$5.64

21003

STATOR

21003-0107

$380.78

21007

ROTOR

21007-0591

$627.09

21066

REGULATOR-VOLTAGE

21066-0748

$339.14

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92037

CLAMP,SPEED,L=43

92037-1290

$7.34

92071

GROMMET

92071-1187

$4.96

92154

BOLT,SOCKET,6X25

92154-0477

$1.94

92154A

BOLT,12X40

92154-1944

$32.29

92171

CLAMP

92171-0534

$6.38

92172

SCREW,TAPPING,5X16

92172-0175

$1.78

92200

WASHER,12X34X9

92200-0369

$11.93
