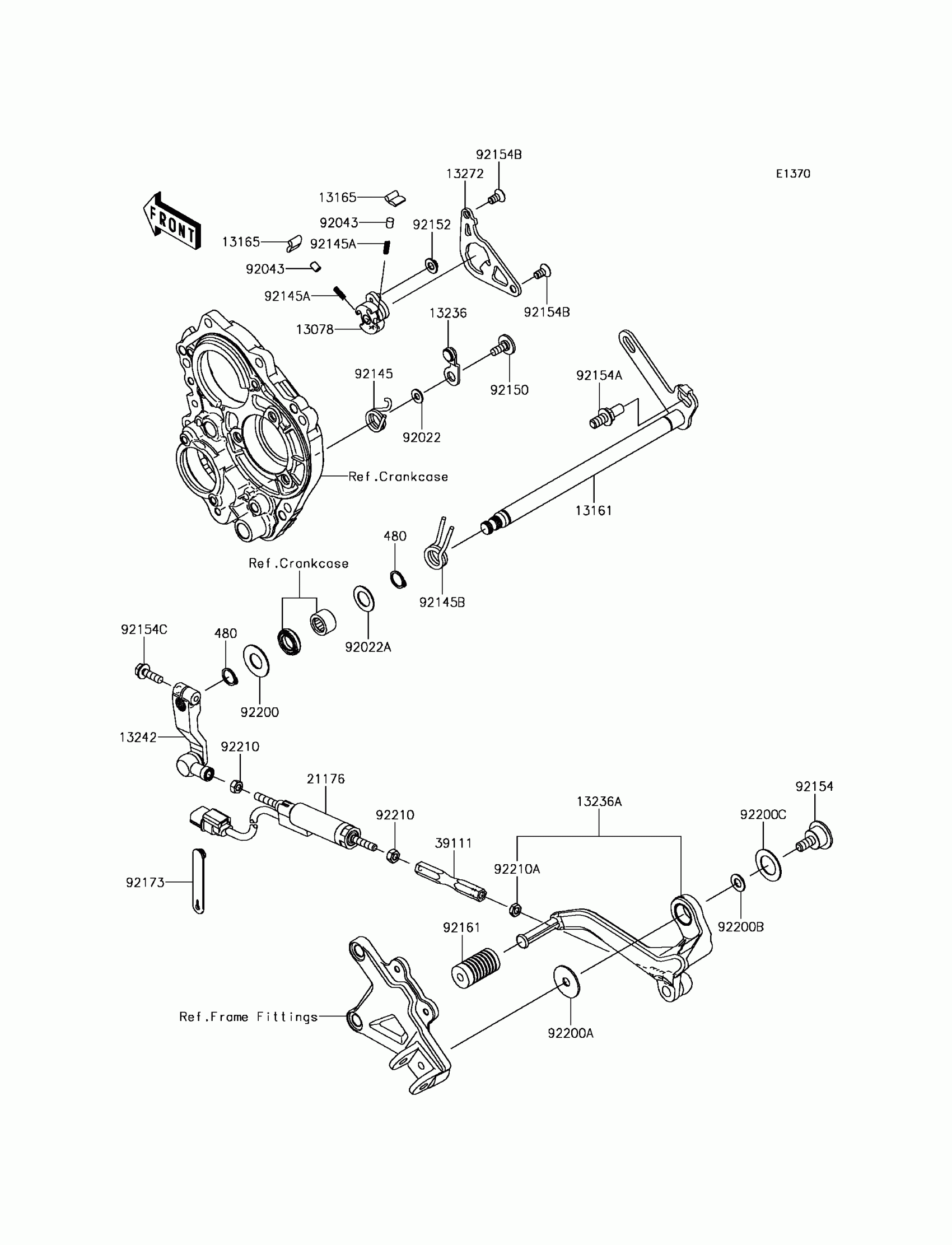

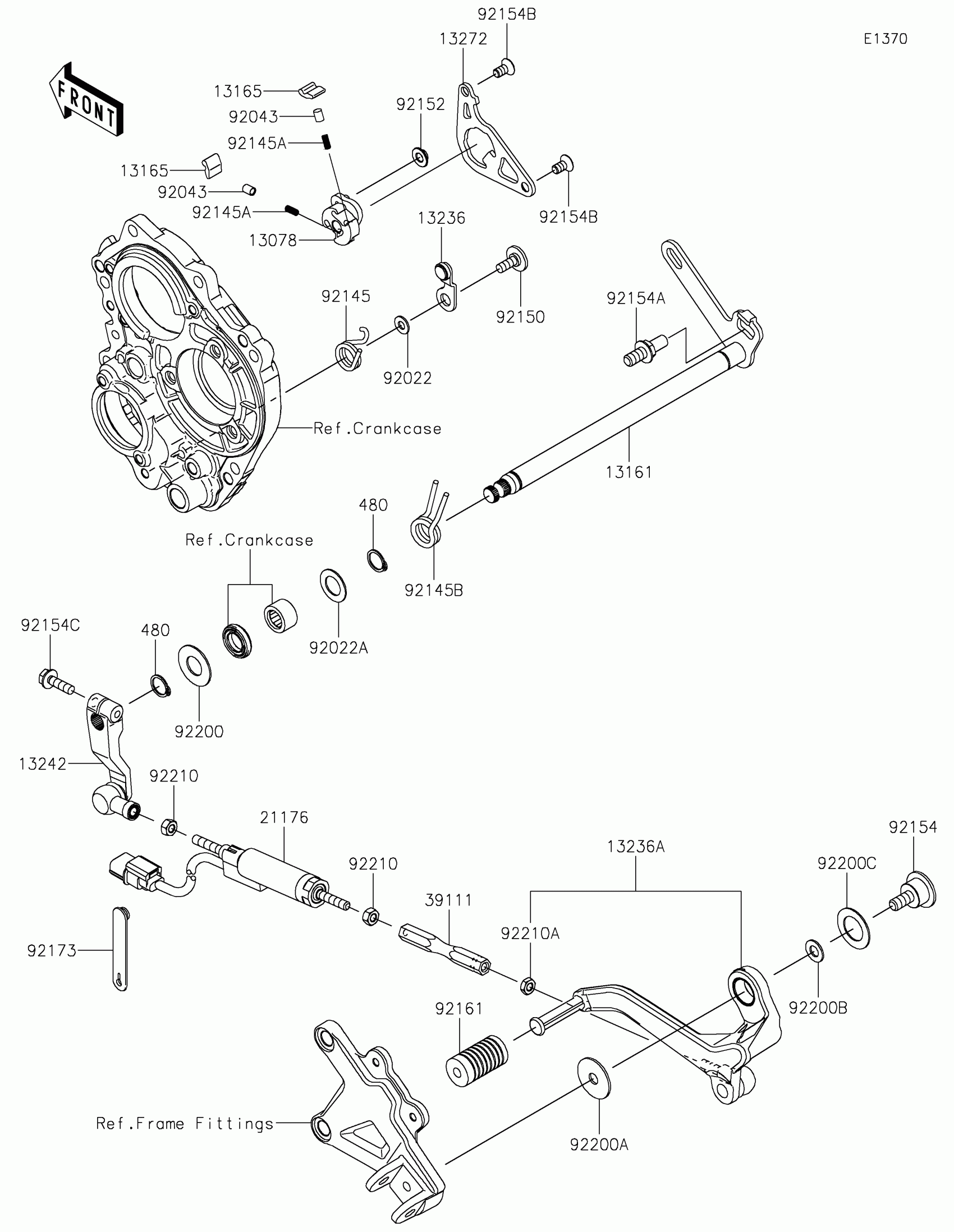

Kawasaki Ninja® ZX™-10R KRT EDITION Gear Change Mechanism Diagram

Description

Price

13078

RATCHET

13078-0012

$71.23

13161

LEVER-COMP-CHANGE SHAFT

13161-0078

$95.26

13165

PAWL

13165-0018

$19.48

13236

LEVER-COMP,POSITION

13236-0192

$20.77

13236A

LEVER-COMP,CHANGE PEDAL

13236-0769

$101.45

13242

LEVER-ASSY-CHANGE

13242-0128

$69.73

13272

PLATE

13272-2171

$16.03

21176

SENSOR,QUICK SHIFTER

21176-0850

$226.05

39111

ROD-TIE

39111-0338

$48.03

480

CIRCLIP-TYPE-C,14MM

480J1400

$5.00

92022

WASHER,6X12.8X1.2

92022-1827

$4.69

92022A

WASHER,14.3X24X1

92022-272

$8.86

92043

PIN,PLUNGER

92043-1676

$8.72

92145

SPRING

92145-0849

$8.22

92145A

SPRING

92145-1490

$3.69

92145B

SPRING

92145-1734

$16.09

92150

BOLT,SOCKET,6X16

92150-1673

Unavailable

92152

COLLAR

92152-1414

$7.63

92154

BOLT

92154-1884

$29.61

92154A

BOLT,RETURN SPRING

92154-1885

$8.58

92154B

BOLT,TORX,6X8.7

92154-1886

$3.90

92154C

BOLT,FLANGED,6X20

92154-2090

$2.75

92161

DAMPER

92161-0871

$7.71

92173

CLAMP

92173-1526

$3.94

92200

WASHER

92200-0265

$2.61

92200A

WASHER,8.2X30X1.5

92200-0810

$4.41

92200B

WASHER,8.2X18X1.2

92200-0811

$3.74

92200C

WASHER,18.3X30X1

92200-0812

$4.10

92210

NUT,6MM

92210-1100

$2.34

92210A

NUT,LEFT HANDED,6MM

92210-1101

$1.86
