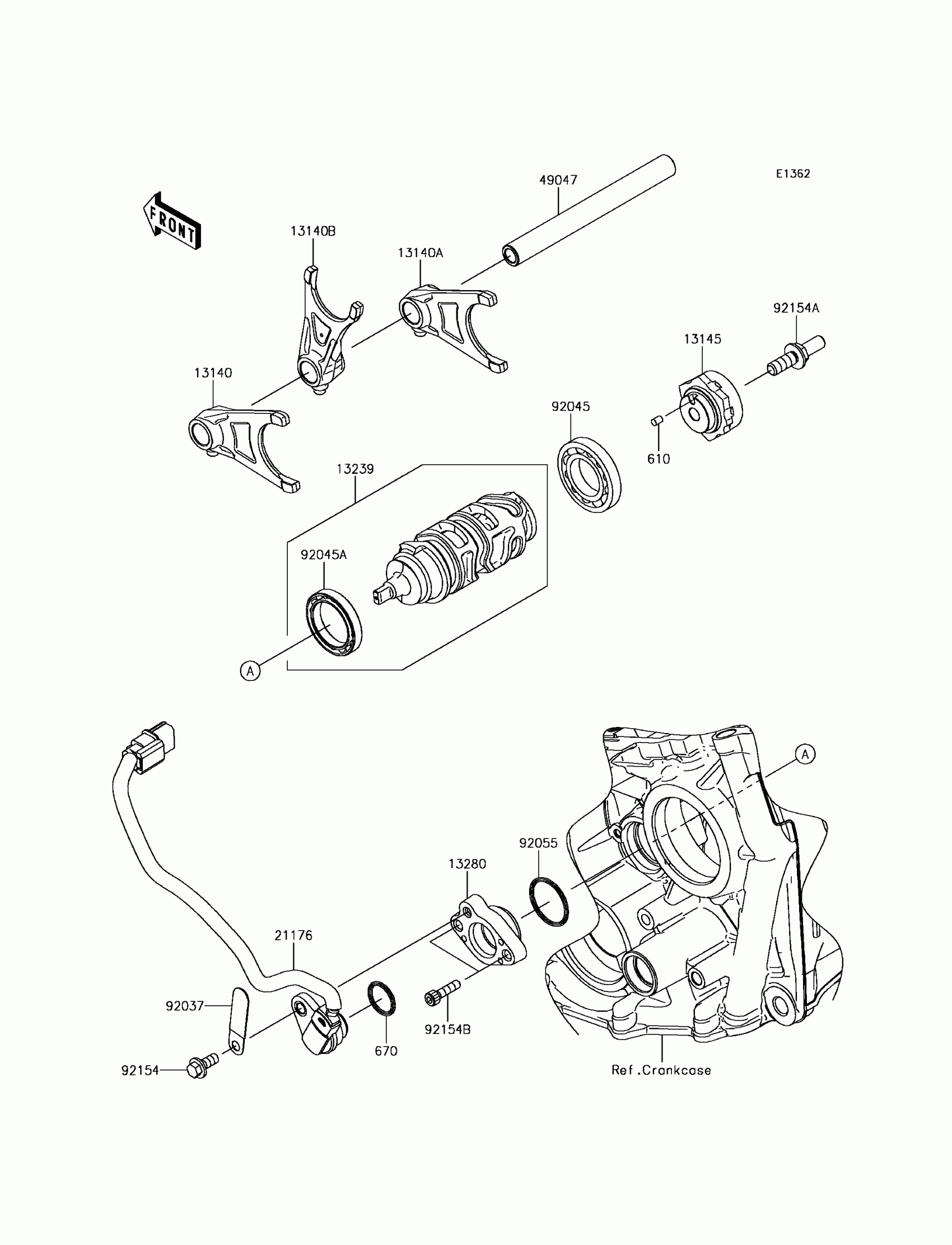

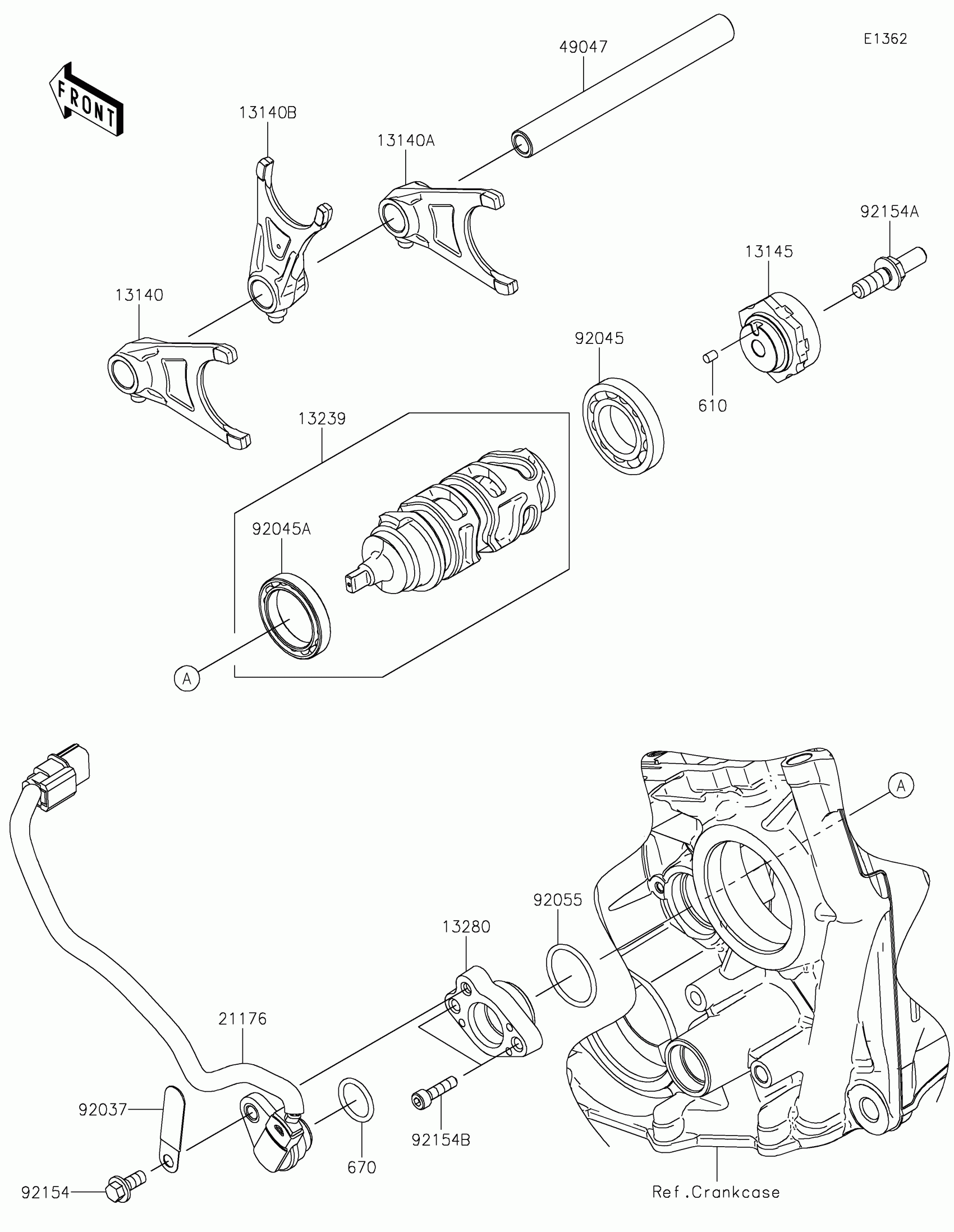

Kawasaki Ninja ZX-10R KRT Edition Gear Change Drum/Shift Fork(s) Diagram

Description

Price

610

ROLLER,4X6

610A0406

$3.29

670

O RING,18MM

670D2018

$1.39

13140

FORK-SHIFT,OUTPUT,LH

13140-0064

$109.01

13140A

FORK-SHIFT,OUTPUT,RH

13140-0065

Unavailable

13140B

FORK-SHIFT,INPUT,CNT

13140-0650

$115.21

13145

CAM-CHANGE DRUM

13145-0051

Unavailable

13239

DRUM-ASSY-CHANGE

13239-0041

$215.67

13280

HOLDER,GEAR POSITION SENSOR

13280-0846

$30.19

21176

SENSOR,GEAR POSITION

21176-0820

$135.45

49047

ROD-SHIFT

49047-0623

$55.16

92037

CLAMP,L=45

92037-1539

$4.42

92045

BEARING-BALL,16005

92045-1045

$28.80

92045A

BEARING-BALL,6806

92045-1152

$46.71

92055

RING-O,27.7X2.4

92055-091

$4.67

92154

BOLT,FLANGED,6X14

92154-1797

$2.64

92154A

BOLT

92154-1883

$12.47

92154B

BOLT,SOCKET,5X20

92154-2084

$1.88
