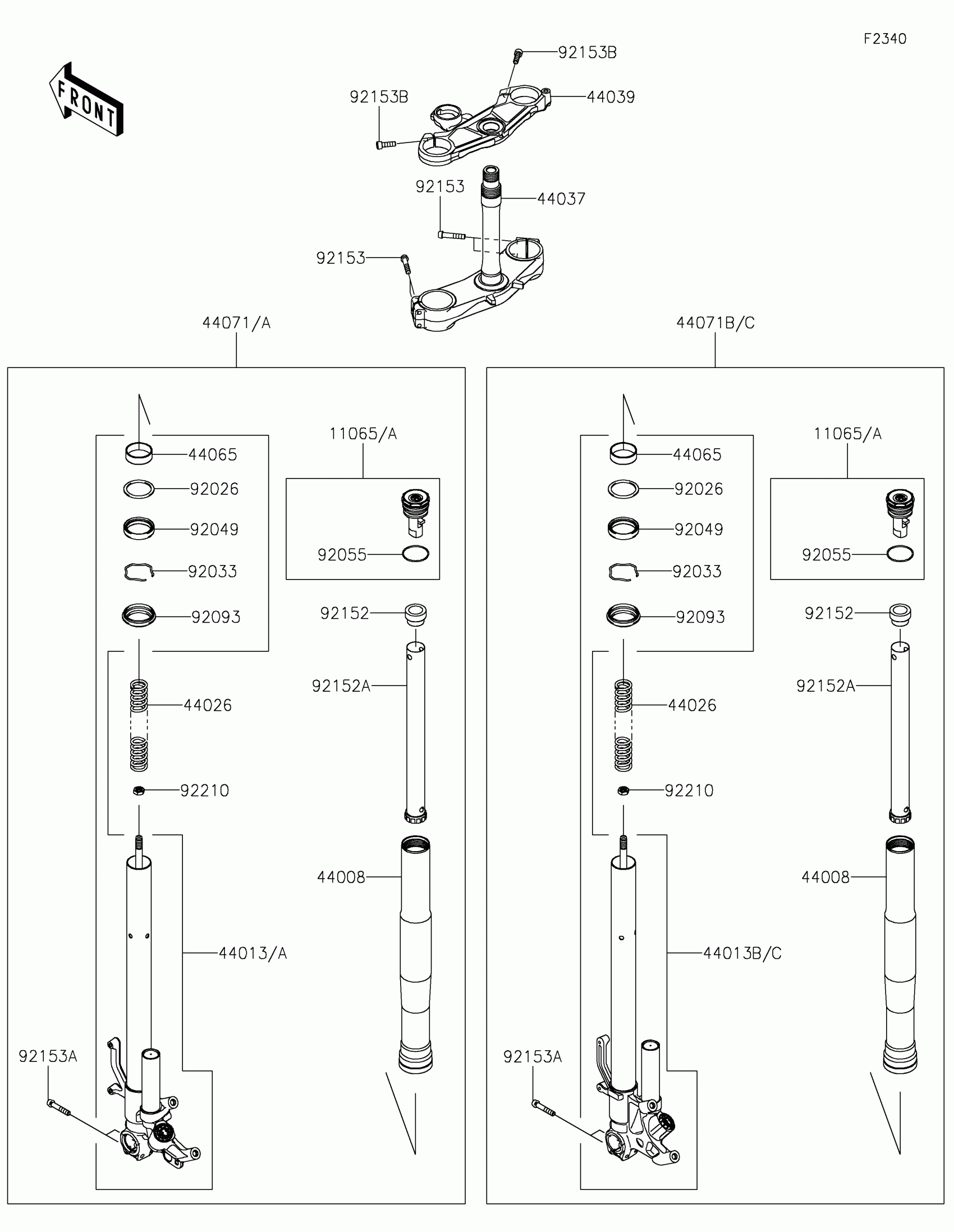

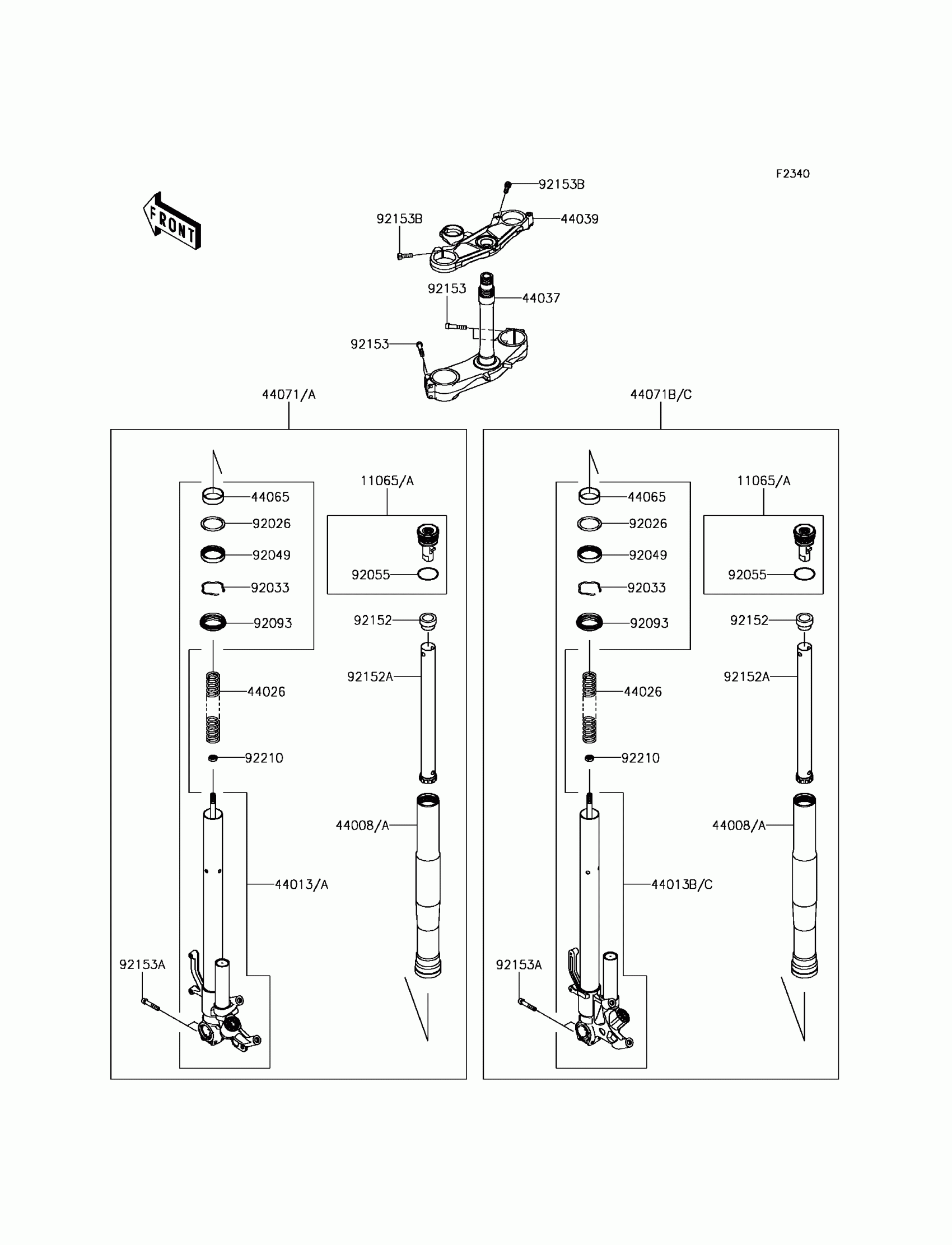

Kawasaki Ninja® ZX™-10R KRT EDITION Front Fork Diagram

Description

Price

11065A

CAP,G.B.GREEN

11065-0958-50Y

$247.43

44008

PIPE-FORK OUTER,BLACK

44008-0082-499

$417.64

44013

PIPE-FORK INNER,LH,BLACK

44013-0284-59S

$2,370.38

44013B

PIPE-FORK INNER,RH,BLACK

44013-0285-59S

$2,370.38

44026

SPRING-FRONT FORK,11.25N/MM

44026-0202

$72.89

44037

HOLDER-FORK UNDER

44037-0159

$544.26

44039

HOLDER-FORK UPPER

44039-0164

$232.77

44065

BUSHING-FRONT FORK

44065-0026

$25.51

44071

DAMPER-ASSY,LH,BLACK

44071-1207-59R

$2,937.97

44071B

DAMPER-ASSY,RH,BLACK

44071-1208-59R

$2,937.97

92026

SPACER

92026-0165

$3.65

92033

RING-SNAP

92033-1222

$6.51

92049

SEAL-OIL

92049-0064

$25.22

92055

RING-O,FORK CAP

92055-1497

$5.93

92093

SEAL,DUST

92093-0042

$24.99

92152

COLLAR

92152-2238

$56.15

92152A

COLLAR

92152-2239

$108.76

92153

BOLT

92153-0853

$7.83

92153A

BOLT,SOCKET,8X35

92153-0854

$7.83

92153B

BOLT,SOCKET,8X25

92153-1625

$4.65

92210

NUT

92210-1506

$3.63
