2017 Kawasaki Ninja ZX-10R KRT Edition Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2017 Kawasaki Ninja ZX-10R KRT Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

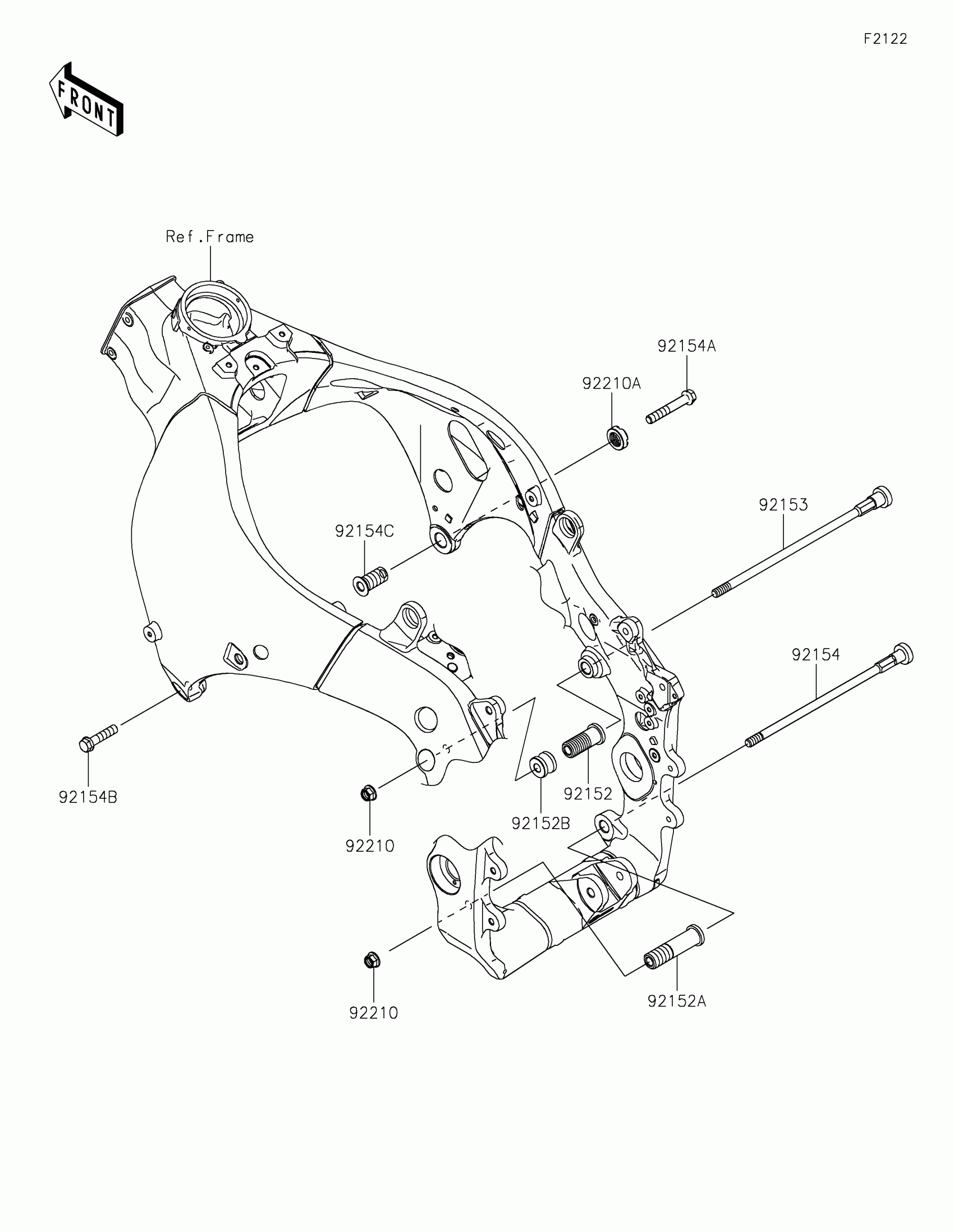

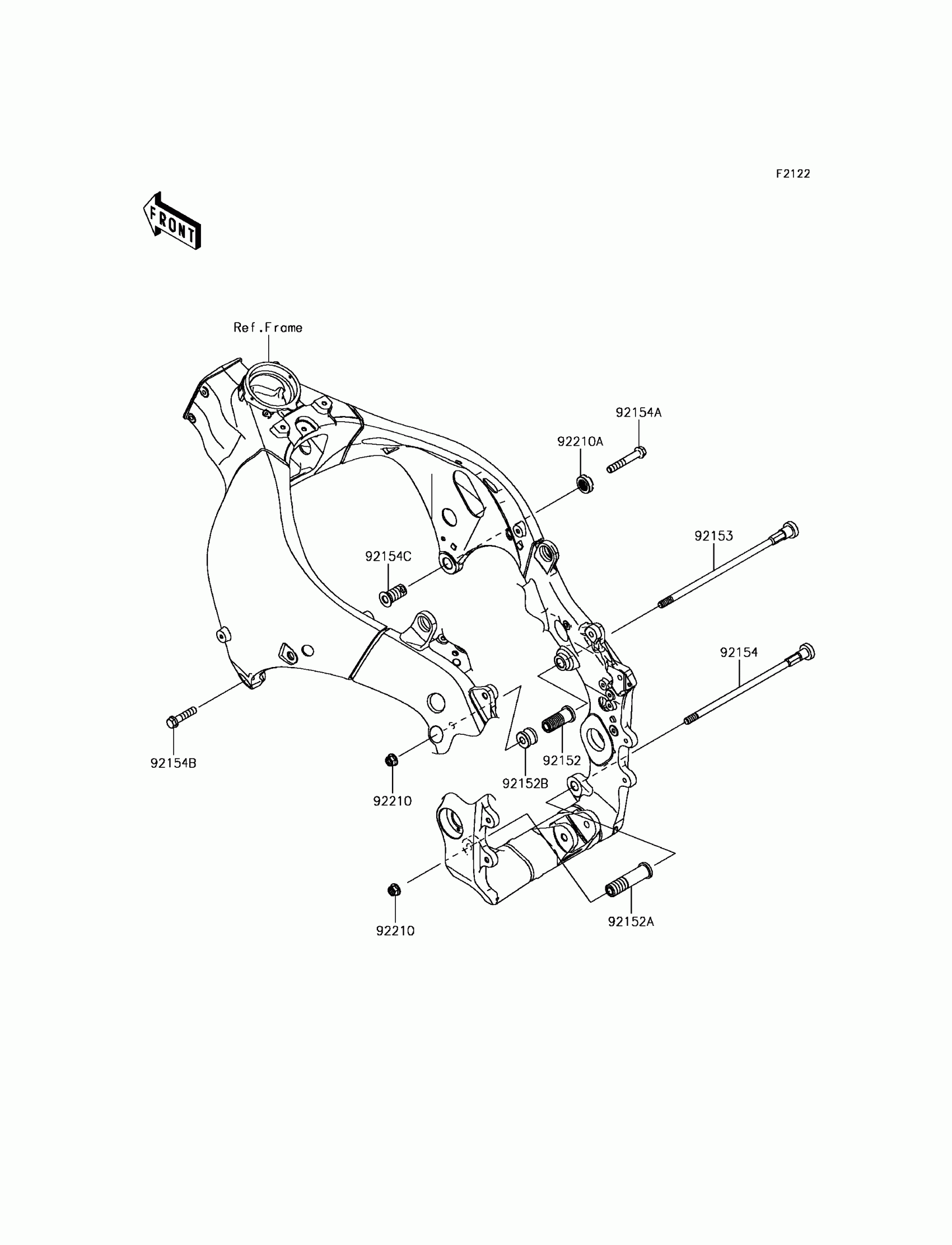

2017 Kawasaki Ninja ZX-10R KRT Edition Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92152

COLLAR,ENGINE MOUNT

92152-0076

1

$26.35

In stock

92152A

COLLAR,10.5X20X80

92152-0860

1

$55.15

In stock

92152B

COLLAR

92152-0984

1

$25.24

In stock

92153

BOLT,SOCKET,10X279

92153-1329

1
Out of stock

92154

BOLT,SOCKET,10X260

92154-0386

1

$51.06

In stock

92154A

BOLT,FLANGED,10X65

92154-1964

1

$10.16

In stock

92154B

BOLT,FLANGED,10X40

92154-1965

1

$6.41

In stock

92154C

BOLT,SOCKET,18X38

92154-1966

1

$39.03

In stock

92210

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock

92210A

NUT,CASTLE,18MM

92210-1390

1
Out of stock
