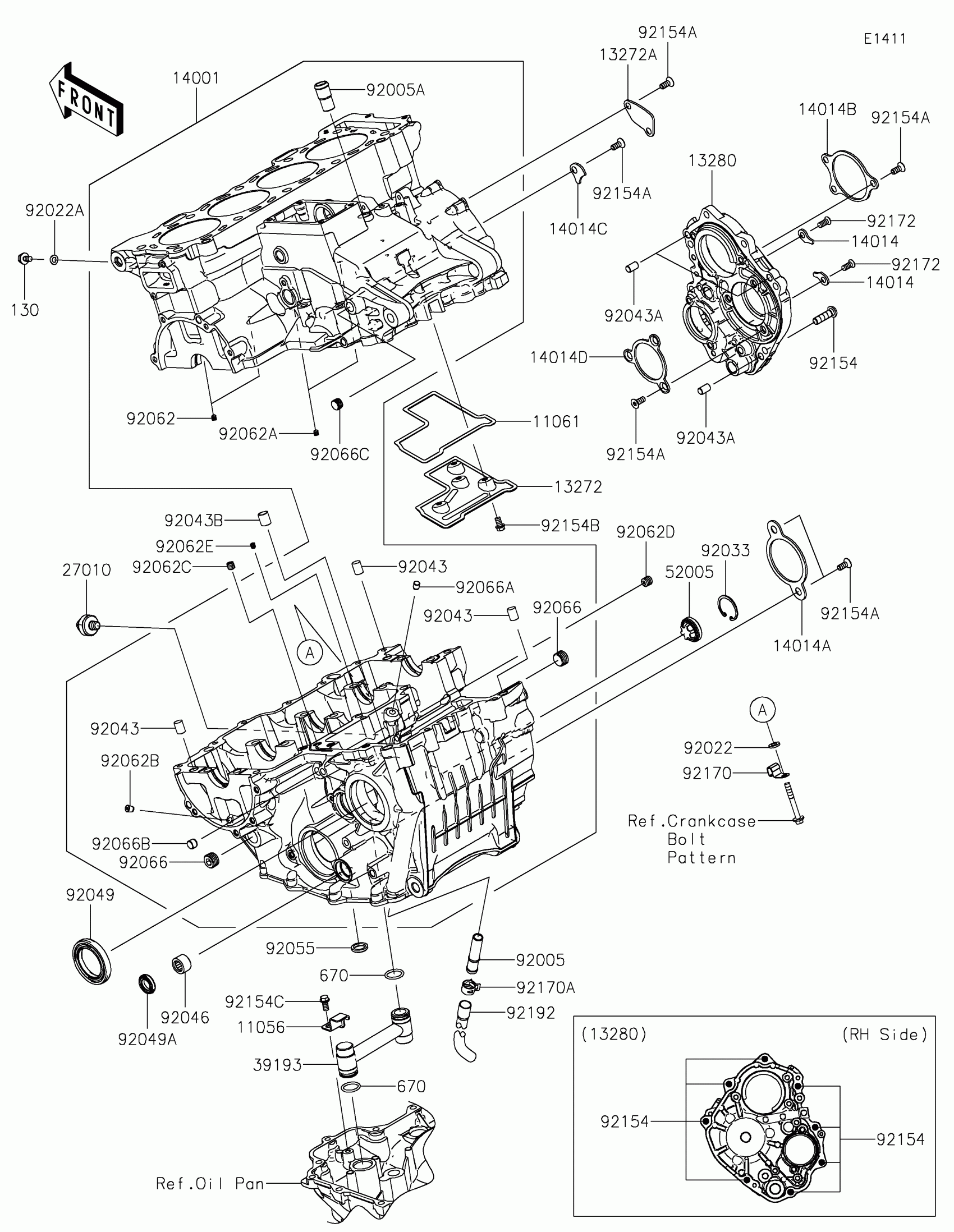

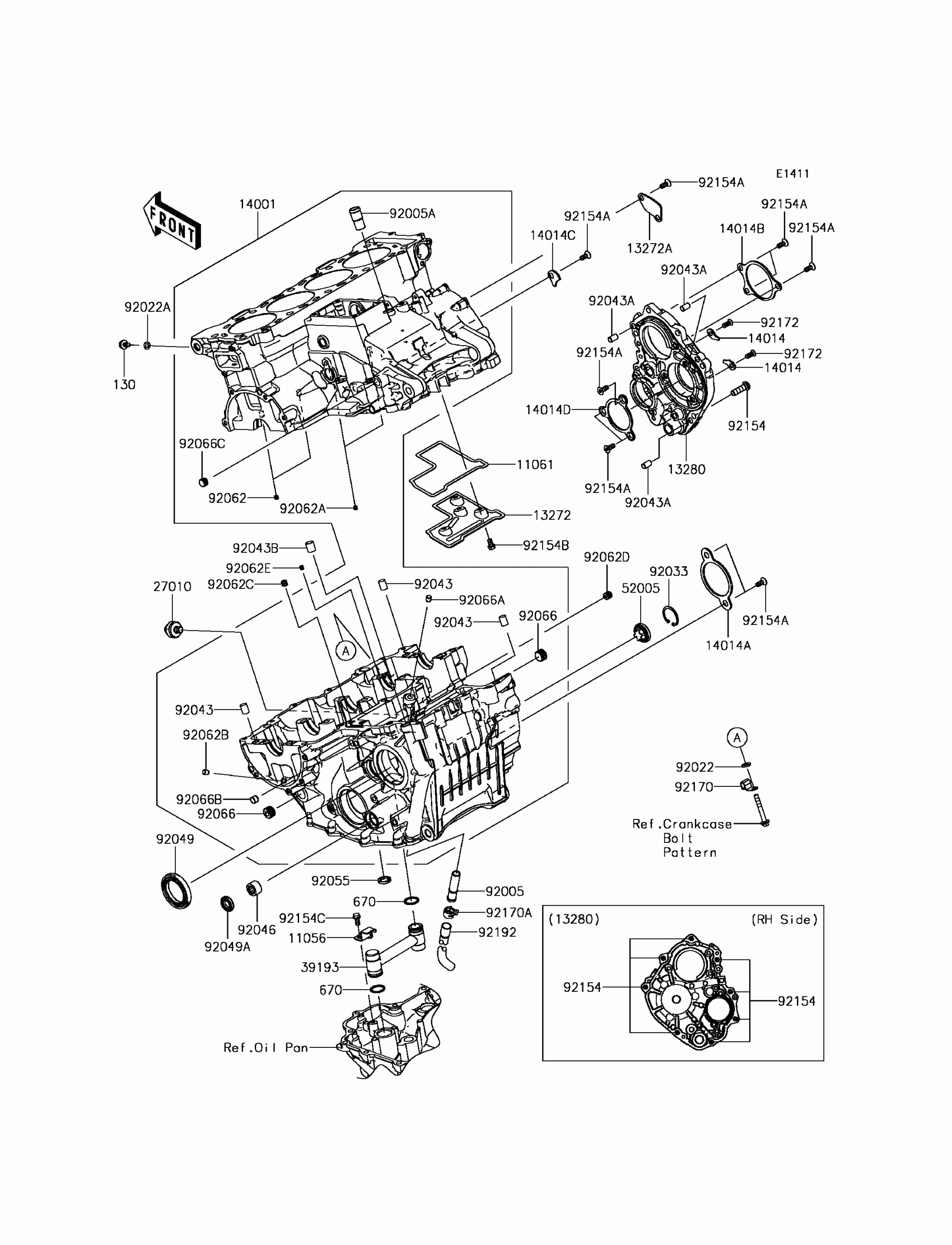

Kawasaki Ninja ZX-10R KRT Edition Crankcase Diagram

#

Description
Price

11056

BRACKET,OIL PIPE

11056-0189

$3.68

11061

GASKET,BREATHER ROOM

11061-0435

$9.07

13272

PLATE,BREATHER ROOM

13272-0886

$8.92

13272A

PLATE

13272-0887

$4.46

13280

HOLDER,TRANSMISSION

13280-0859

$183.68

14001

SET-CRANKCASE

14001-0656

$2,571.95

14014

PLATE-POSITION

14014-0042

$3.29

14014A

PLATE-POSITION

14014-0044

$14.39

14014B

PLATE-POSITION

14014-0046

$17.80

14014C

PLATE-POSITION

14014-0559

$4.19

14014D

PLATE-POSITION

14014-0560

$17.80

27010

SWITCH,OIL PRESSURE

27010-1313

$35.72

39193

PIPE-OIL

39193-0061

$78.56

52005

GAUGE

52005-1120

$18.41

92005

FITTING

92005-0126

$15.32

92005A

FITTING,BREATHER

92005-1238

$10.85

92022

WASHER,6.5X13X2.0

92022-1523

$0.88

92022A

WASHER,6.2X11X1

92022-304

$2.76

92033

RING-SNAP

92033-1305

$1.93

92043

PIN,10X14

92043-1506

$2.30

92043A

PIN,8X14

92043-1567

$1.62

92043B

PIN,10.1X12X14

92043-4009

$4.67

92046

BEARING-NEEDLE,HK1412FM

92046-0043

$12.99

92049

SEAL-OIL,TC38 57 8

92049-0068

$9.07

92049A

SEAL-OIL,TC14245

92049-1520

$10.54

92055

RING-O

92055-0211

$1.89

92062

NOZZLE

92062-0004

$4.00

92062A

NOZZLE

92062-0010

$4.04

92062B

NOZZLE

92062-0012

$4.46

92062C

NOZZLE,8X8

92062-0020

$3.20

92062D

NOZZLE,10X10

92062-0021

$3.20

92062E

NOZZLE,6X8,SILVER

92062-1081

$5.63

92066

PLUG

92066-0839

$5.17

92066A

PLUG,OIL LINE,7.2X8

92066-1012

$4.65

92066B

PLUG

92066-1013

$2.17

92066C

PLUG

92066-1110

$5.66

92154

BOLT,TORX,8X28

92154-0415

$1.89

92154A

BOLT,TORX,6X11.7

92154-1821

$3.53

92154B

BOLT,FLANGED,6X10

92154-1887

$1.98

92154C

BOLT,FLANGED-SMALL,6X12

92154-1888

$3.29

130

BOLT-FLANGED,6X10

130BD0610

$2.63

670

O RING,18MM

670D2018

$1.39

92170

CLAMP

92170-1804

$4.02

92170A

CLAMP

92170-1938

$2.84

92172

SCREW,TORX,6X14

92172-0961

$2.10

92192

TUBE,10.5X13X80

92192-0985

$4.47
