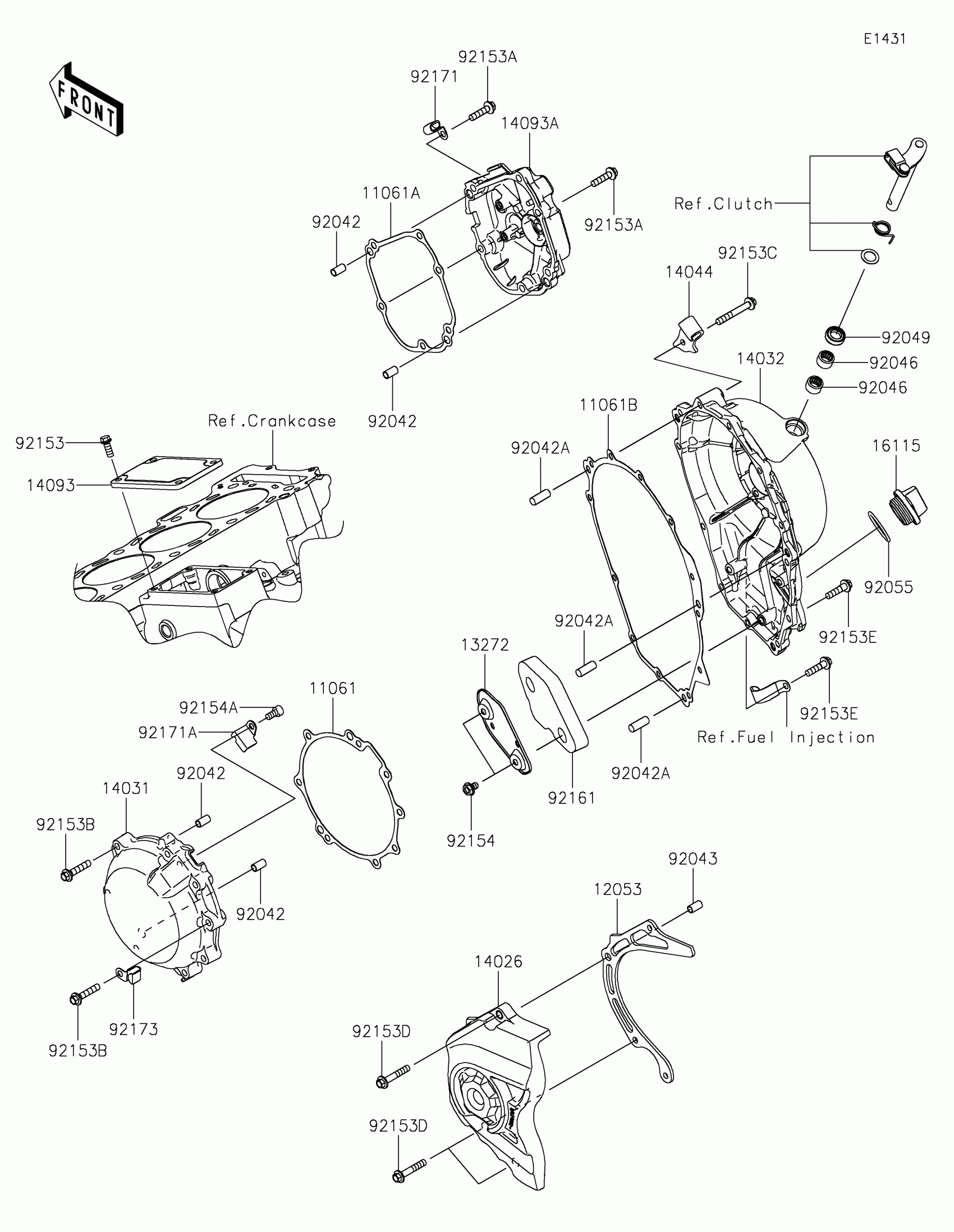

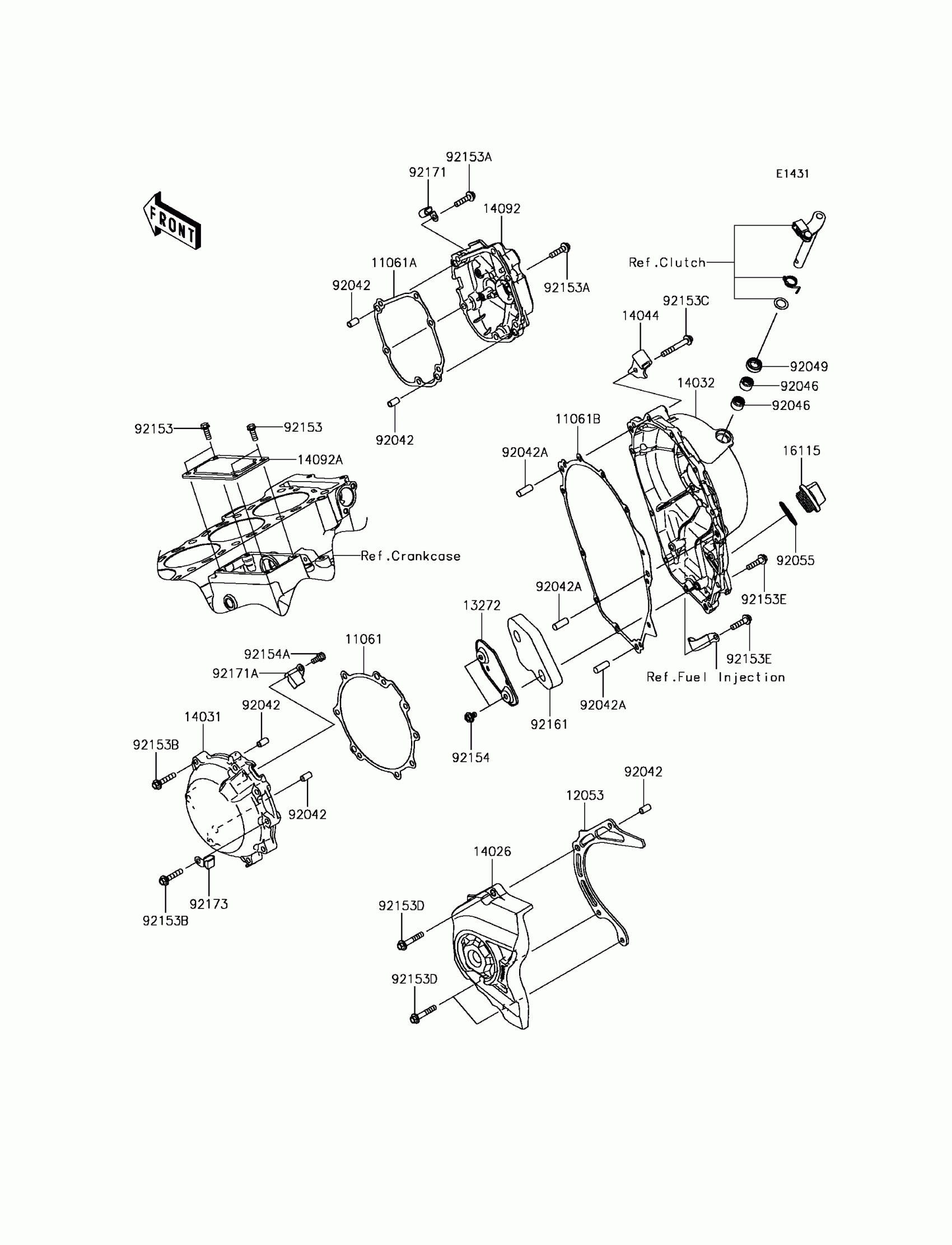

Kawasaki Ninja® ZX™-10R KRT EDITION Engine Cover(s) Diagram

Description

Price

11061

GASKET,GENERATOR COVER

11061-0441

$13.90

11061A

GASKET,PULSER COVER

11061-0442

$9.91

11061B

GASKET

11061-0735

$30.11

12053

GUIDE-CHAIN

12053-0229

$15.36

13272

PLATE

13272-0892

$7.71

14026

COVER-CHAIN

14026-0124

$99.09

14031

COVER-GENERATOR

14031-0615

$153.19

14032

COVER-CLUTCH

14032-0635

$234.95

14044

HOLDER-CABLE

14044-0566

$5.33

14093

COVER,STARTER

14093-0759

$24.87

14093A

COVER,PULSER

14093-0871

$80.58

16115

CAP-OIL FILLER

16115-1009

$14.30

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92042A

PIN,DOWEL,8X22

92042-044

$5.52

92043

PIN,6.2X8X14

92043-1263

$0.43

92046

BEARING-NEEDLE,HK1210FM

92046-0034

$15.63

92049

SEAL-OIL,CLUTCH RELEASE

92049-1475

$4.18

92055

RING-O,31.5X2.6

92055-049

$4.31

92153

BOLT,6X16

92153-0695

$3.07

92153A

BOLT,FLANGED,6X25

92153-1569

$1.78

92153B

BOLT,FLANGED,6X30

92153-1574

$2.15

92153C

BOLT,FLANGED,6X45

92153-1575

$2.15

92153D

BOLT,FLANGED,6X35

92153-1579

$2.15

92153E

BOLT,FLANGED,6X25

92153-1716

$1.78

92154

BOLT,FLANGED,6X10

92154-0492

$5.65

92154A

BOLT,SOCKET,6X12

92154-1889

$2.12

92161

DAMPER,CLUTCH COVER

92161-0873

$15.80

92171

CLAMP

92171-0534

$6.38

92171A

CLAMP

92171-0938

$3.90

92173

CLAMP

92173-0082

$6.22
