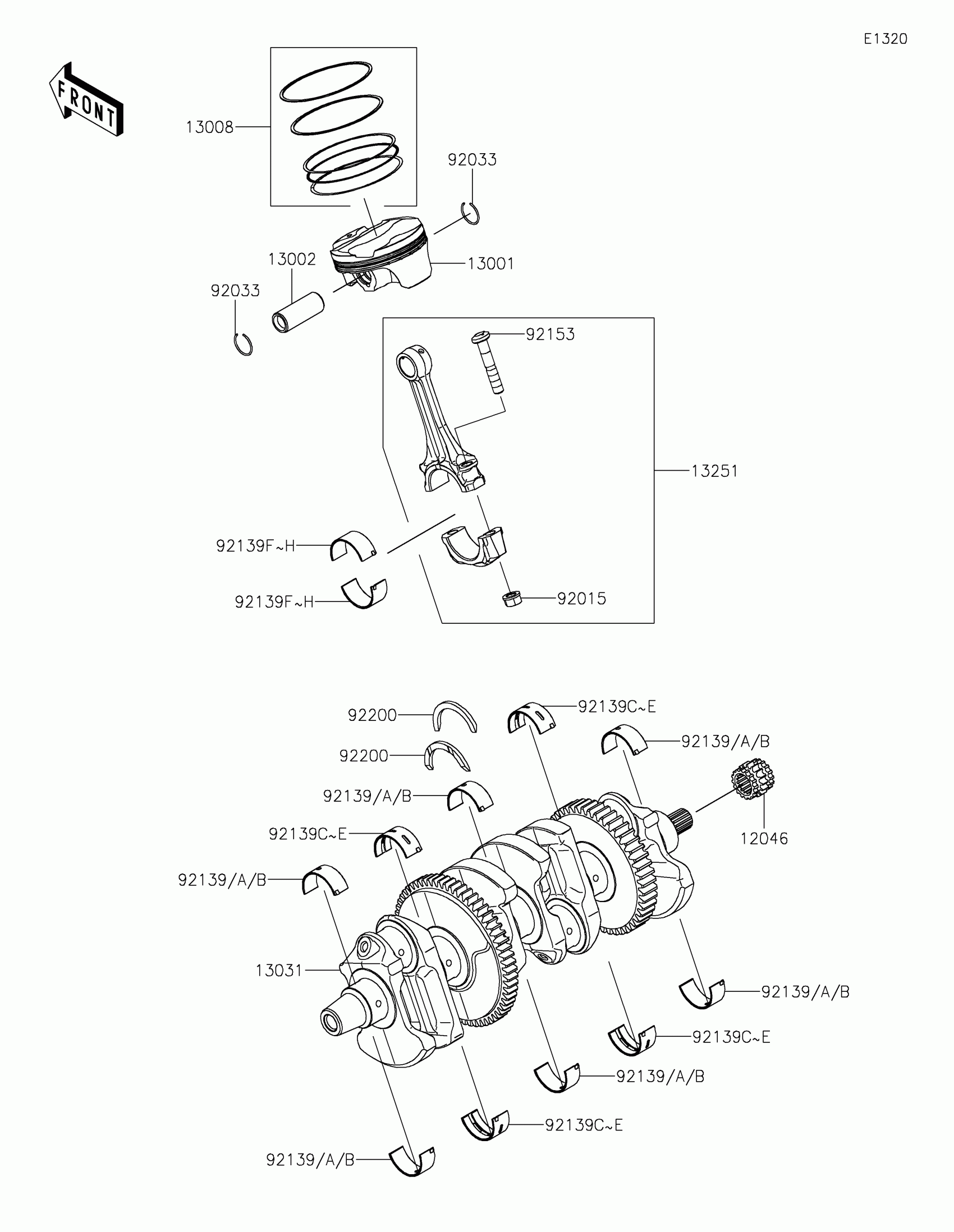

Kawasaki Ninja® ZX™-10R KRT EDITION Crankshaft/Piston(s) Diagram

Description

Price

12046

SPROCKET,15T

12046-0611

$72.79

13001

PISTON-ENGINE

13001-0800

$169.05

13002

PIN-PISTON

13002-0717

$30.15

13008

RING-SET-PISTON

13008-0562

$65.89

13031

CRANKSHAFT-COMP

13031-0881

$1,631.04

13251

ROD-ASSY-CONNECTING,H

13251-0725-HH

Unavailable

92015

NUT,FLANGED,8MM

92015-1311

$7.34

92033

RING-SNAP

92033-1054

$2.47

92139

BUSHING,#1,BLUE

92139-0298

Unavailable

92139A

BUSHING,#1,BLACK

92139-0299

$23.79

92139B

BUSHING,#1,BROWN

92139-0300

Unavailable

92139C

BUSHING,#2,BLUE

92139-0301

Unavailable

92139D

BUSHING,#2,BLACK

92139-0302

$23.79

92139E

BUSHING,#2,BROWN

92139-0303

Unavailable

92139F

BUSHING,PIN,BLUE

92139-0853

$24.31

92139G

BUSHING,PIN,BLACK

92139-0854

Unavailable

92139H

BUSHING,PIN,BROWN

92139-0855

Unavailable

92153

BOLT,CON-ROD,8X45.5

92153-0809

$4.60

92200

WASHER,T=3.25

92200-0424

$10.05
