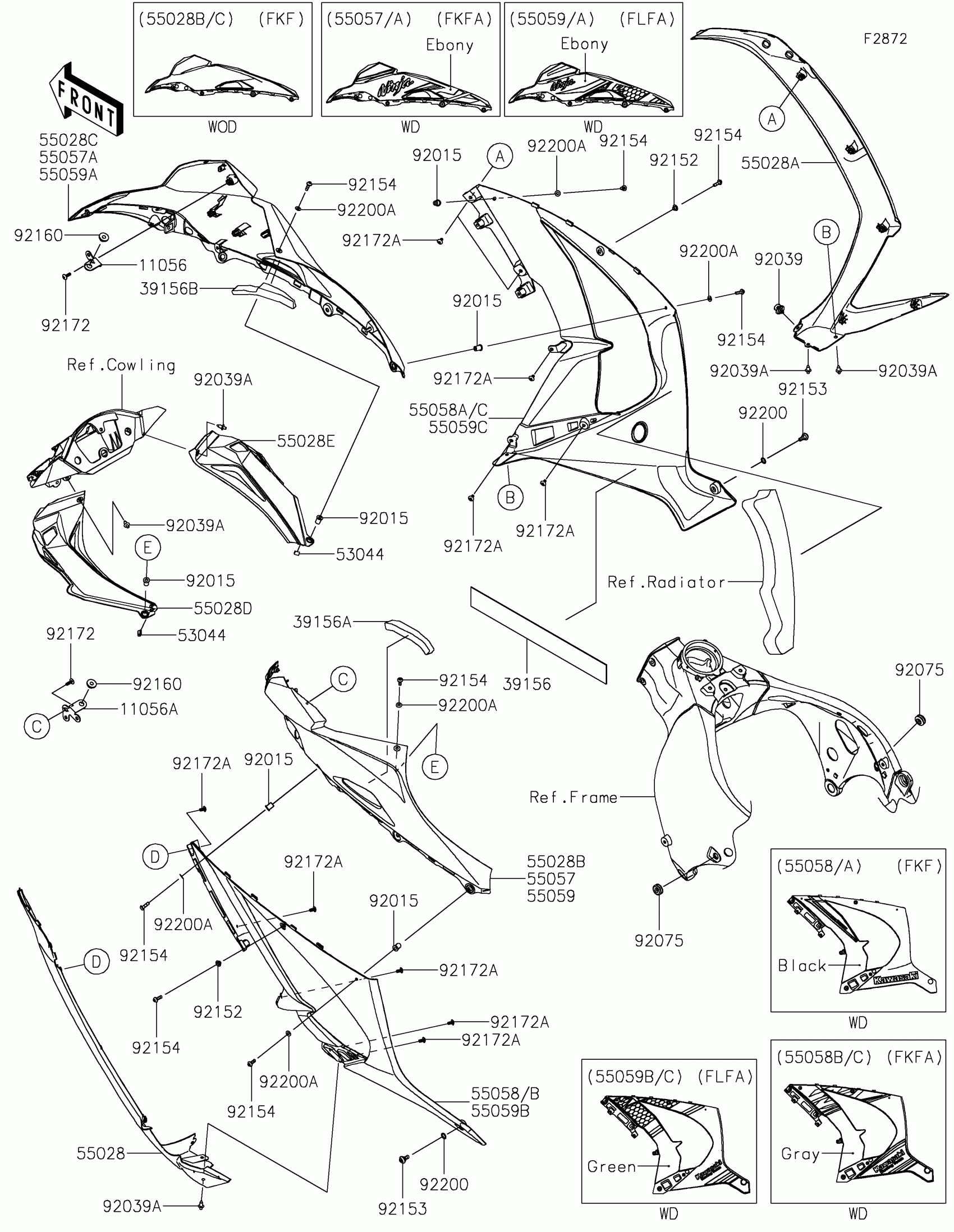

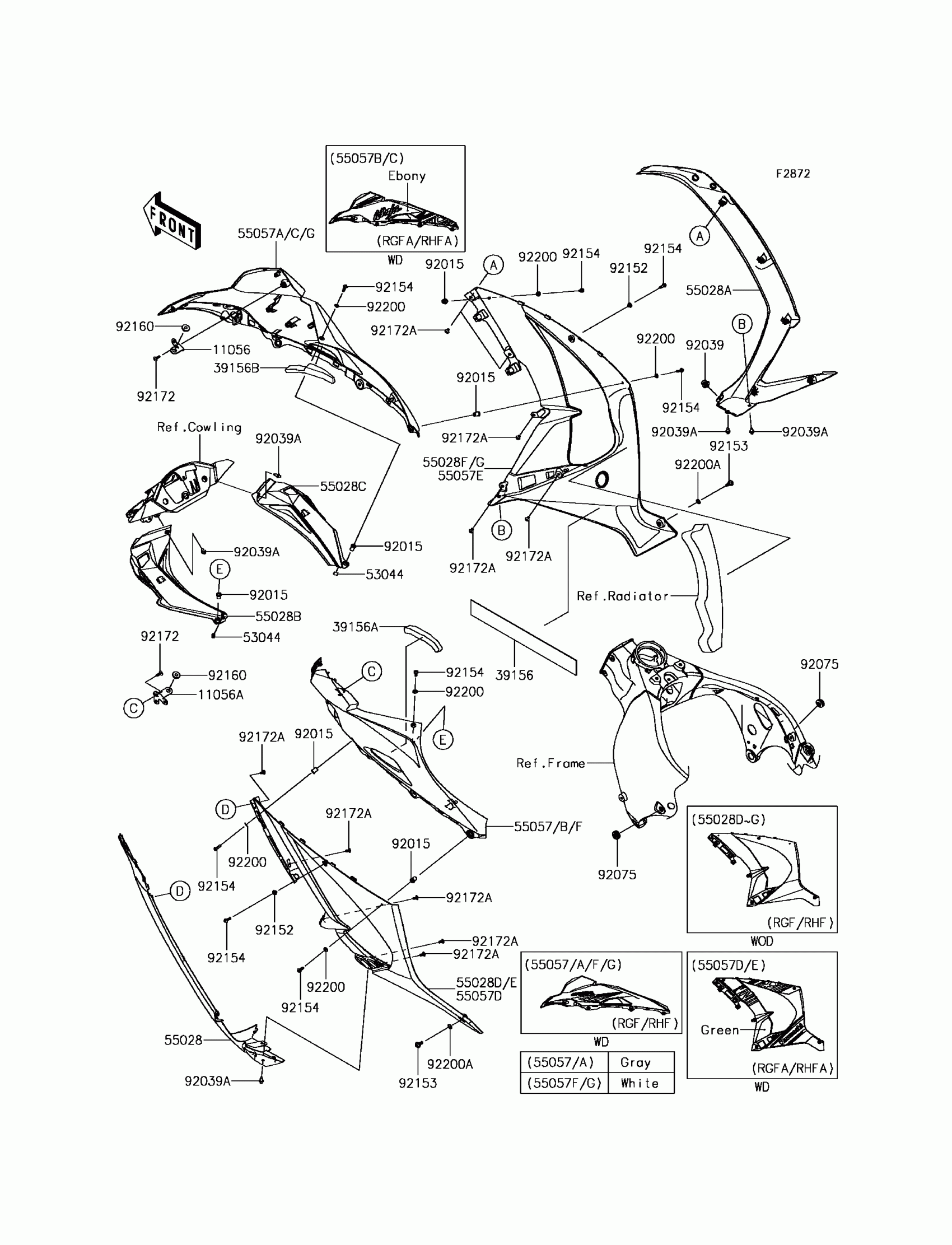

Kawasaki Ninja® ZX™-10R KRT EDITION Cowling Lowers Diagram

Description

Price

11056

BRACKET,INNER COWL.,RH

11056-7813

$4.86

11056A

BRACKET,INNER COWL.,LH

11056-7814

$5.14

39156

PAD,49X400X0.3

39156-0753

$17.74

39156A

PAD,SIDE COWL.,UPP,LH

39156-1972

$4.04

39156B

PAD,SIDE COWL.,UPP,RH

39156-1974

$5.08

53044

TRIM

53044-0552

$1.70

55028

COWLING,SIDE,FR,LH,F.BLACK

55028-0336-6Z

$70.43

55028A

COWLING,SIDE,FR,RH,F.BLACK

55028-0337-6Z

$67.93

55028D

COWLING,INNER,LH,F.BLACK

55028-0576-6Z

$65.38

55028E

COWLING,INNER,RH,F.BLACK

55028-0577-6Z

$44.29

55059

COWLING,SIDE,UPP,LH,EBONY

55059-5034-H8

$666.61

55059A

COWLING,SIDE,UPP,RH,EBONY

55059-5035-H8

$682.14

55059B

COWLING,SIDE,LH,L.GREEN

55059-5036-777

$689.00

55059C

COWLING,SIDE,RH,L.GREEN

55059-5037-777

$689.00

92015

NUT,WELL,5MM

92015-1757

$7.29

92039

RIVET,HOLE 8MM

92039-0014

$3.29

92039A

RIVET

92039-0068

$2.97

92075

DAMPER

92075-1067

$4.69

92152

COLLAR,5.3X7.3X5.3

92152-2190

$3.42

92153

BOLT,SOCKET,6MM

92153-0489

$3.73

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92160

DAMPER

92160-1613

$3.74

92172

SCREW,TAPPING,5X16

92172-0175

$1.78

92172A

SCREW,TAPPING,5X10

92172-0335

$2.15

92200

WASHER,10.4X15.9X0.5

92200-0157

$2.15

92200A

WASHER,5.2X10X1.0

92200-1820

$0.63
