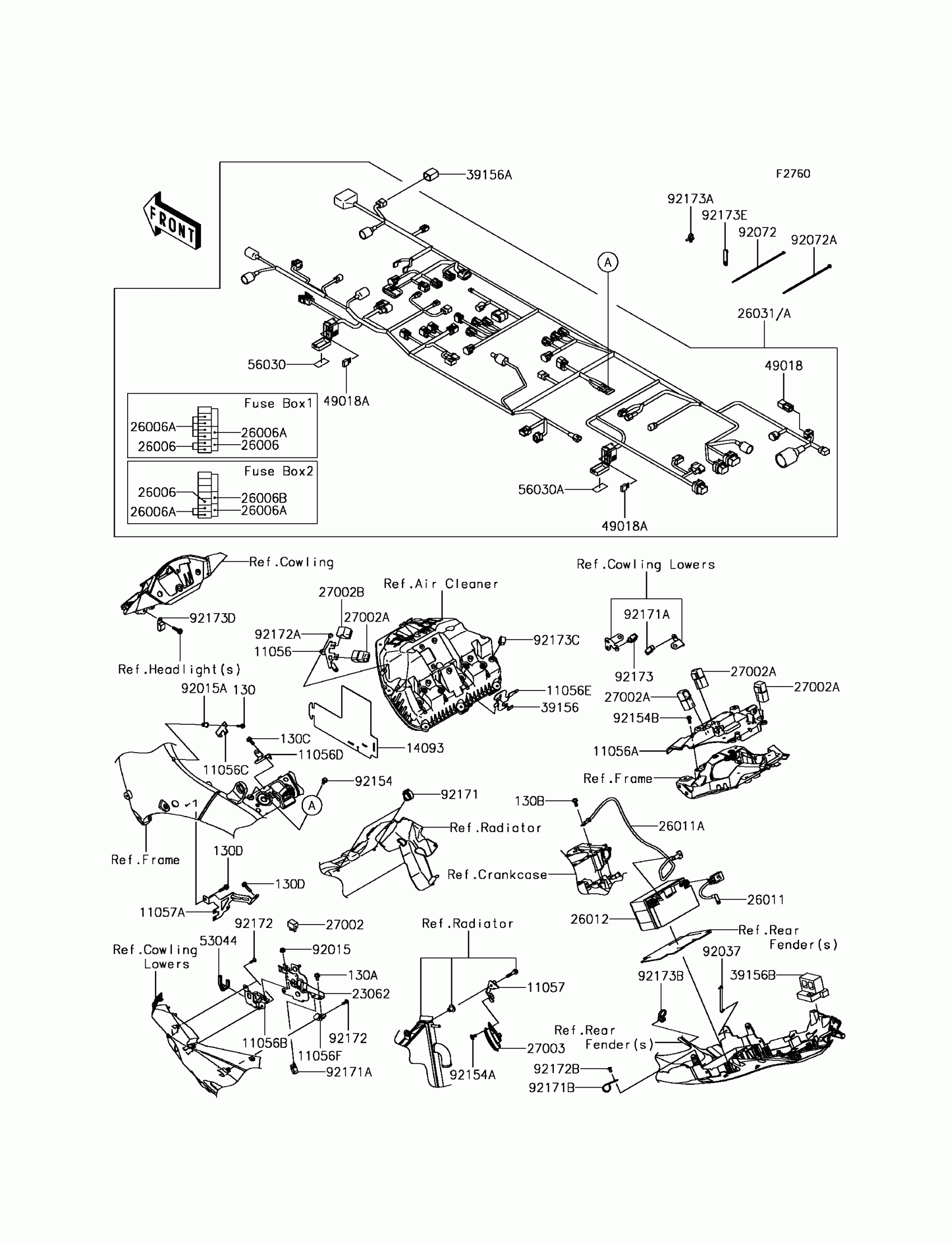

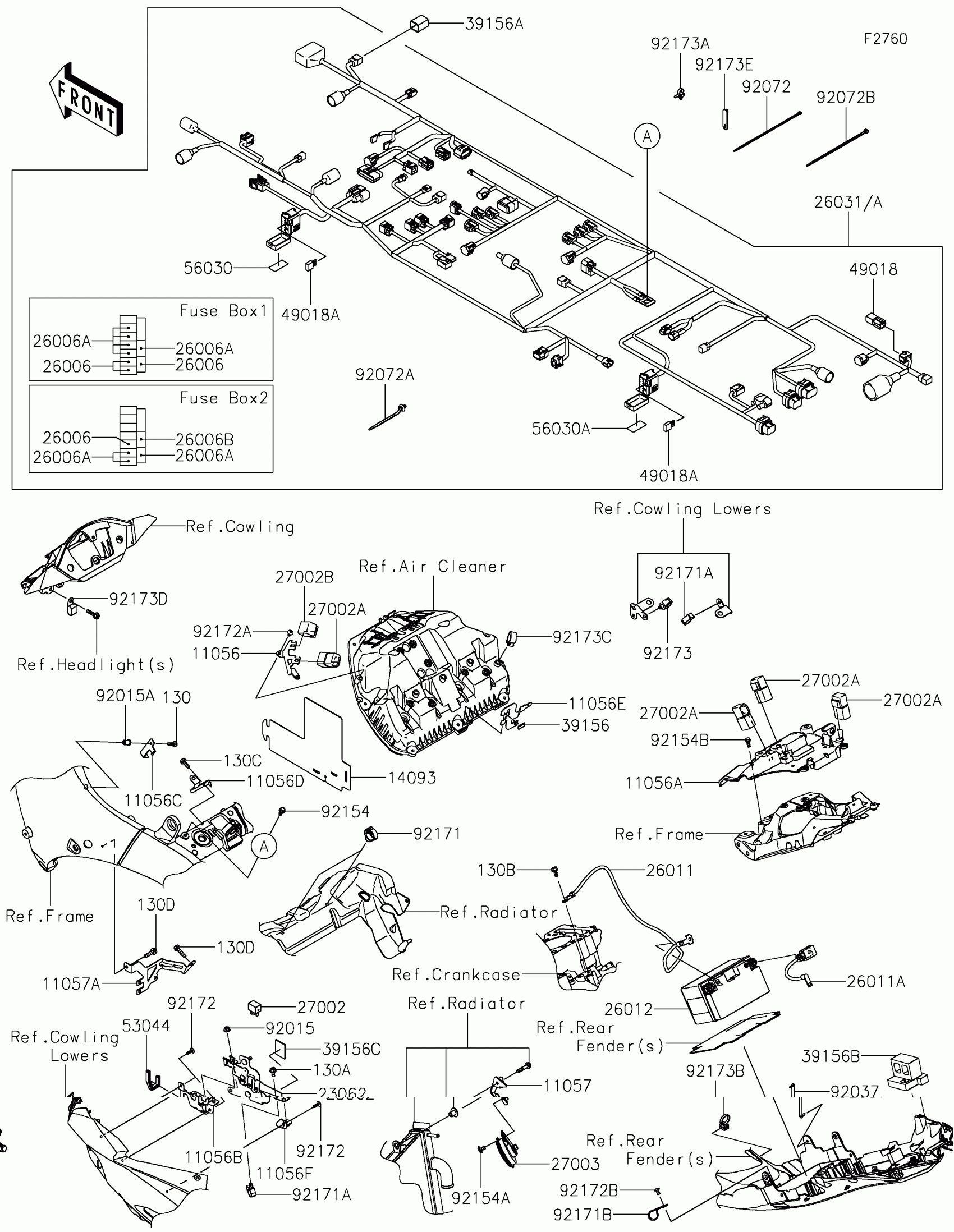

Kawasaki Ninja ZX-10R KRT Edition Chassis Electrical Equipment Diagram

#

Description
Price

11056

BRACKET,RELAY

11056-7706

$5.44

11056A

BRACKET,ECU

11056-7717

$47.86

11056B

BRACKET,FUSE

11056-7809

$12.75

11056C

BRACKET,FRAME,LH

11056-7828

$5.69

11056D

BRACKET,CROSS FRAME

11056-7829

$6.24

11056E

BRACKET,HARNESS

11056-7955

$7.33

11056F

BRACKET,CONNECTOR,RR

11056-7959

$5.64

11057

BRACKET,HORN

11057-0017

$20.88

11057A

BRACKET,SHIFTER&GEAR POSITION

11057-0068

$10.72

14093

COVER,RELAY

14093-0476

$31.84

23062

BRACKET-COMP,CONNECTOR

23062-0873

$39.40

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

$4.87

26006B

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26011

WIRE-LEAD,BATTERY(+)

26011-0921

$30.17

26011A

WIRE-LEAD,BATTERY(-)

26011-0943

$46.59

26012

BATTERY,YTZ10S,12V 8.6AH

26012-0564

Unavailable

27002

RELAY-ASSY,HEAD LAMP

27002-0027

$42.60

27002A

RELAY-ASSY

27002-1086

$36.91

27002B

RELAY-ASSY,SIGNAL LAMP

27002-1097

$47.41

27003

HORN

27003-0113

$83.74

39156

PAD,HEAT GUARD

39156-0389

$2.13

39156A

PAD,DIAG. CONNECTOR

39156-1886

$2.13

39156B

PAD,DIAG/DONGLE

39156-1993

$36.37

49018

DIODE

49018-0005

$47.13

49018A

DIODE

49018-0007

$47.32

53044

TRIM

53044-0018

$4.65

56030

LABEL,FUSE BOX1

56030-0955

$4.37

56030A

LABEL,FUSE BOX2

56030-0957

$3.89

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92015A

NUT,WELL,5MM

92015-1757

$7.29

92037

CLAMP,SPEED,L=80.5

92037-1903

$7.84

92072

BAND,202X3.6

92072-0782

$1.97

92072A

BAND,L=148

92072-3768

$3.92

92154

BOLT,FLANGED,6X16

92154-0551

$1.63

92154A

BOLT,SOCKET,6X10

92154-0774

$1.63

130

BOLT-FLANGED,5X18

130BA0518

$1.46

130A

BOLT-FLANGED,6X12

130BA0612

$1.72

130B

BOLT-FLANGED,6X14

130BA0614

$1.20

130C

BOLT-FLANGED,6X16

130BA0616

$1.20

130D

BOLT-FLANGED,6X25

130BA0625

$1.20

92154B

BOLT,FLANGED,6X14

92154-1864

$2.15

92171

CLAMP,CLIP,DIA=20

92171-0068

$2.80

92171A

CLAMP,BRAKE HOSE

92171-0316

$3.88

92171B

CLAMP

92171-1279

$9.19

92172

SCREW,TAPPING,5X16

92172-0175

$1.78

92172A

SCREW,TAPPING,5X10

92172-0262

$1.34

92172B

SCREW,TAPPING,5X10

92172-0335

$2.15

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92173A

CLAMP

92173-0742

$9.17

92173B

CLAMP

92173-0791

$11.16

92173C

CLAMP

92173-0861

$3.02

92173D

CLAMP,68MM

92173-1009

$4.72

92173E

CLAMP,RUBBER PLATE

92173-1229

$3.94

26031

HARNESS,MAIN

26031-2114

Unavailable

26031A

HARNESS,MAIN

26031-2116

$1,588.64
