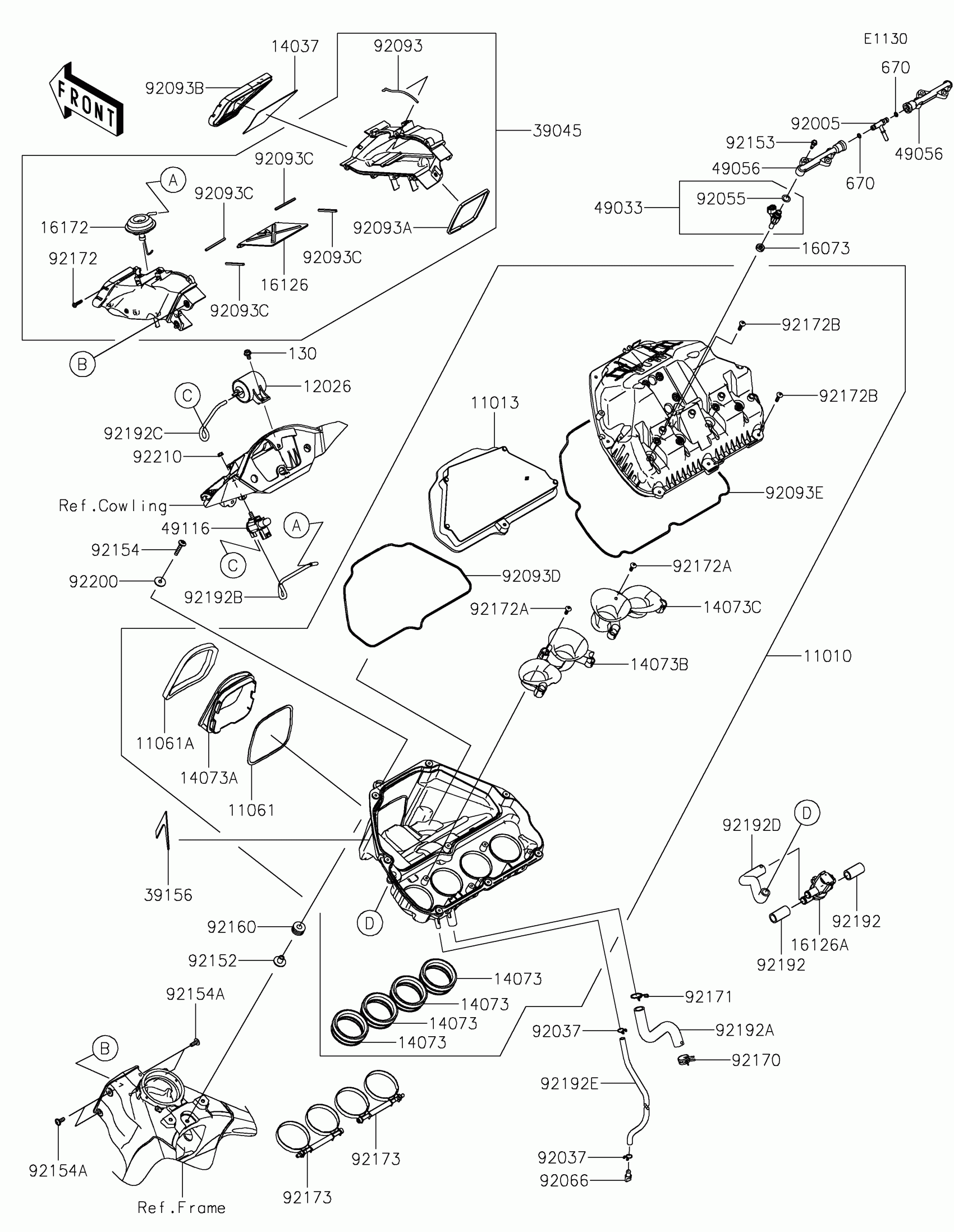

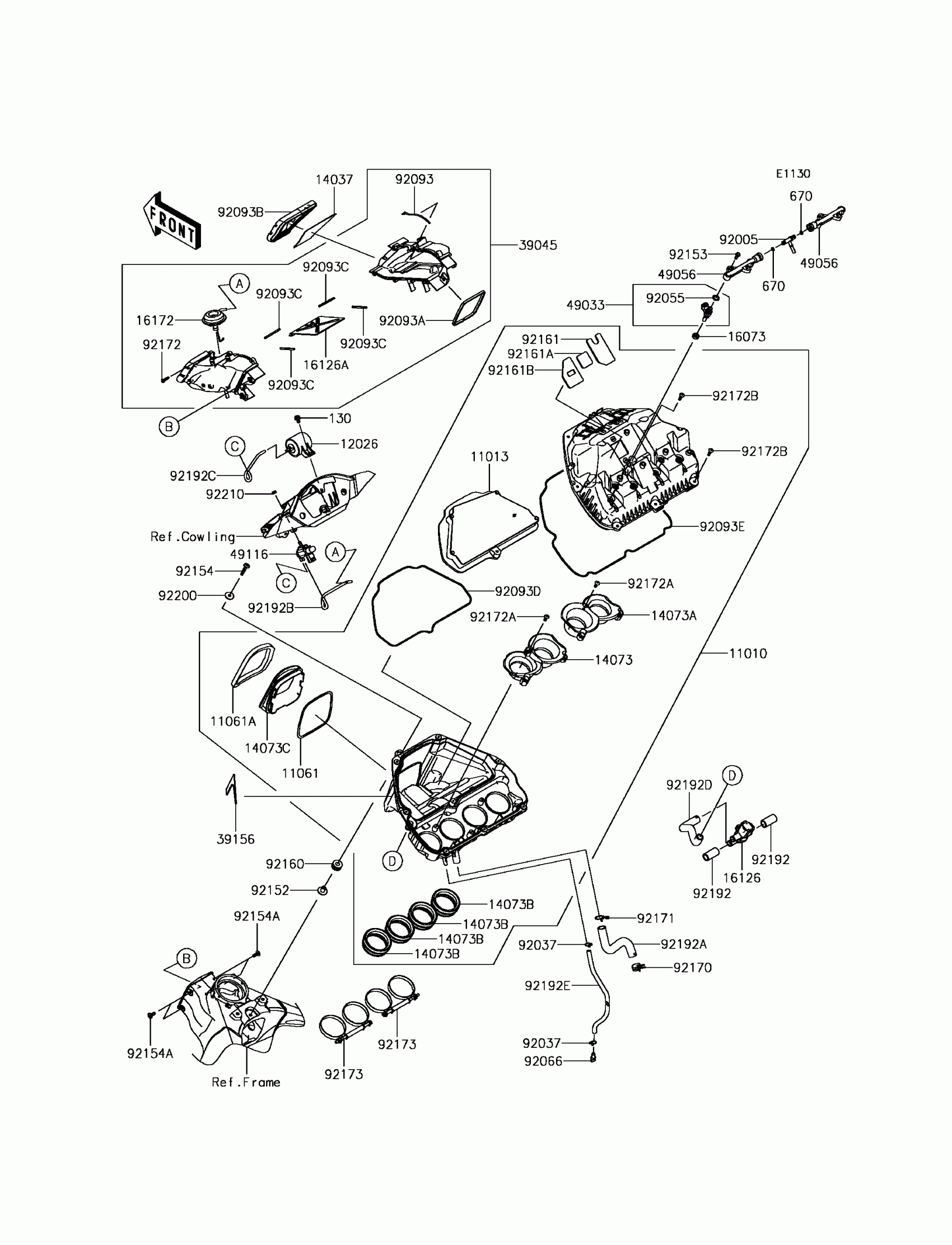

Kawasaki Ninja ZX-10R KRT Edition Air Cleaner Diagram

#

Description
Price

11010

FILTER-ASSY-AIR

11010-0844

$504.26

11013

ELEMENT-AIR FILTER

11013-0757

$84.29

11061

GASKET

11061-0444

$3.64

11061A

GASKET

11061-0445

$4.92

12026

CHAMBER

12026-0009

$88.53

14037

SCREEN

14037-0107

$45.34

14073

DUCT,FUNNEL,#1

14073-0833

$10.11

14073A

DUCT,FUNNEL,#3

14073-0834

$10.11

14073B

DUCT,SUB FUNNEL

14073-0835

$15.02

14073C

DUCT

14073-0841

$18.66

16073

INSULATOR

16073-0129

$4.53

16126

VALVE,AIR SWITCHING

16126-0038

$193.92

16126A

VALVE

16126-0057

$13.86

16172

ACTUATOR

16172-0023

$117.32

39045

DUCT-ASSY,RAM

39045-0041

$244.37

39156

PAD

39156-1988

$3.27

49033

NOZZLE-INJECTION

49033-0027

$118.68

49056

PIPE-INJECTION

49056-0032

$15.81

49116

VALVE-ASSY

49116-0031

$82.96

92005

FITTING

92005-0125

$10.88

92037

CLAMP,TUBE

92037-147

$5.61

92055

RING-O,INJECTION NOZZLE

92055-0124

$2.09

92066

PLUG,DRAIN

92066-1211

$6.48

92093

SEAL

92093-0175

$1.42

92093A

SEAL

92093-0176

$3.19

92093B

SEAL

92093-0177

$16.63

92093C

SEAL

92093-0178

$0.83

92093D

SEAL,ELEMENT

92093-0686

$7.41

92093E

SEAL,CASE

92093-0693

$10.24

92152

COLLAR

92152-2197

$4.61

92153

BOLT,FLANGED,5MM

92153-0361

$3.75

92154

BOLT,SOCKET,6X30

92154-0435

$1.24

92154A

BOLT,FLANGED,BUTTON,6X18

92154-1882

$1.62

92160

DAMPER

92160-1162

$3.81

92161

DAMPER

92161-1844

$9.44

92161A

DAMPER

92161-1845

$2.66

92161B

DAMPER

92161-1846

$8.98

92170

CLAMP

92170-1060

$7.93

92171

CLAMP

92171-0391

$3.71

92172

SCREW,TAPPING,5X20

92172-0009

$1.98

130

BOLT-FLANGED,6X12

130BA0612

$1.25

670

O RING,8MM

670E1508

$1.32

92172A

SCREW,TAPPING,5X16

92172-0482

$0.95

92172B

SCREW,TAPPING,5X20

92172-0483

Unavailable

92173

CLAMP

92173-0222

$25.24

92192

TUBE,12X17.6X38

92192-0887

$15.32

92192A

TUBE,BREATHER

92192-0889

$12.73

92192B

TUBE,4X8X250

92192-0892

$3.19

92192C

TUBE

92192-1119

$3.86

92192D

TUBE,AIR CLEANER-ASV

92192-1619

$13.78

92192E

TUBE,10X13X420

92192-1644

$10.24

92200

WASHER,6.5X22X1.6

92200-1087

$3.01

92210

NUT,FLANGED,6MM

92210-0368

$1.04
