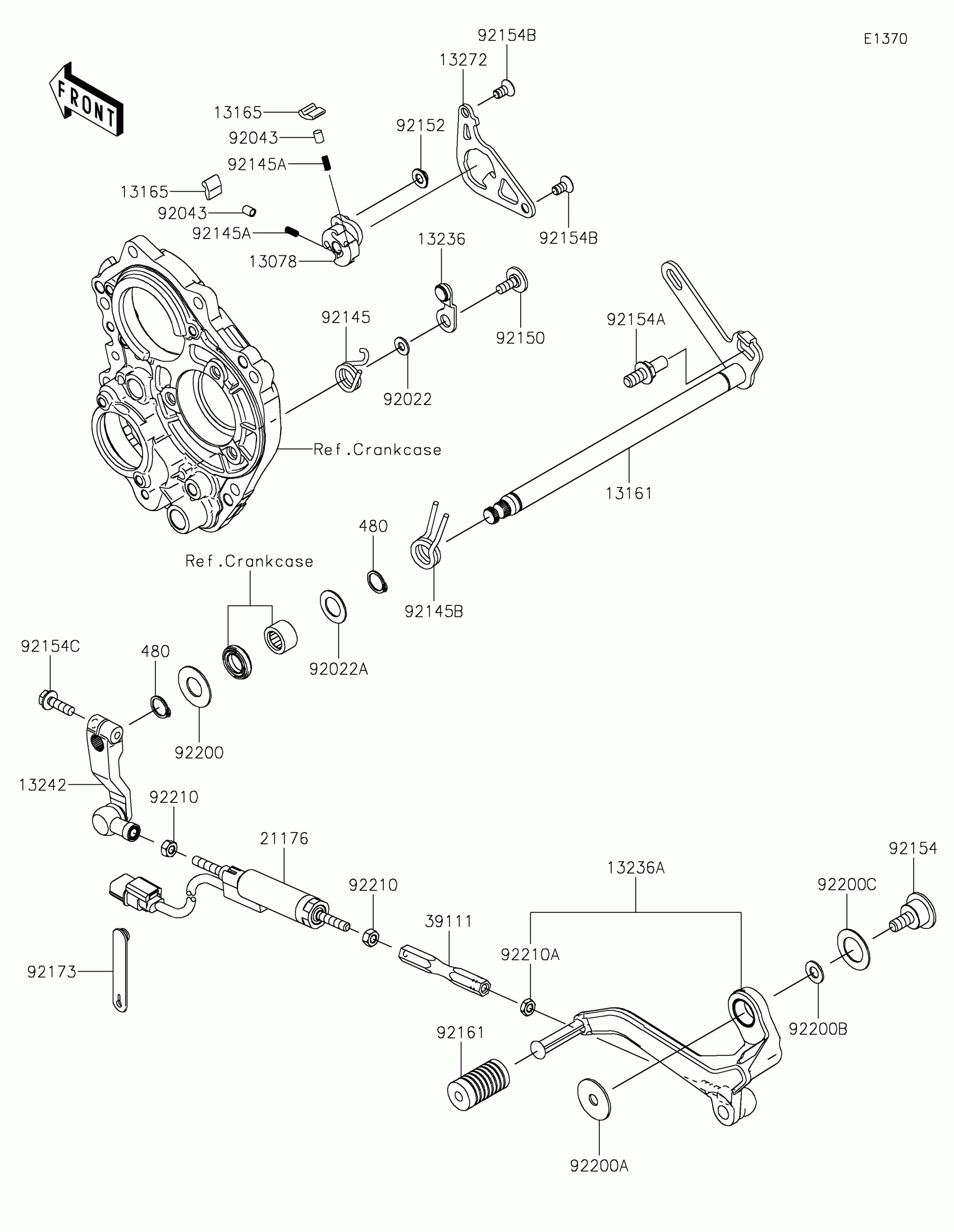

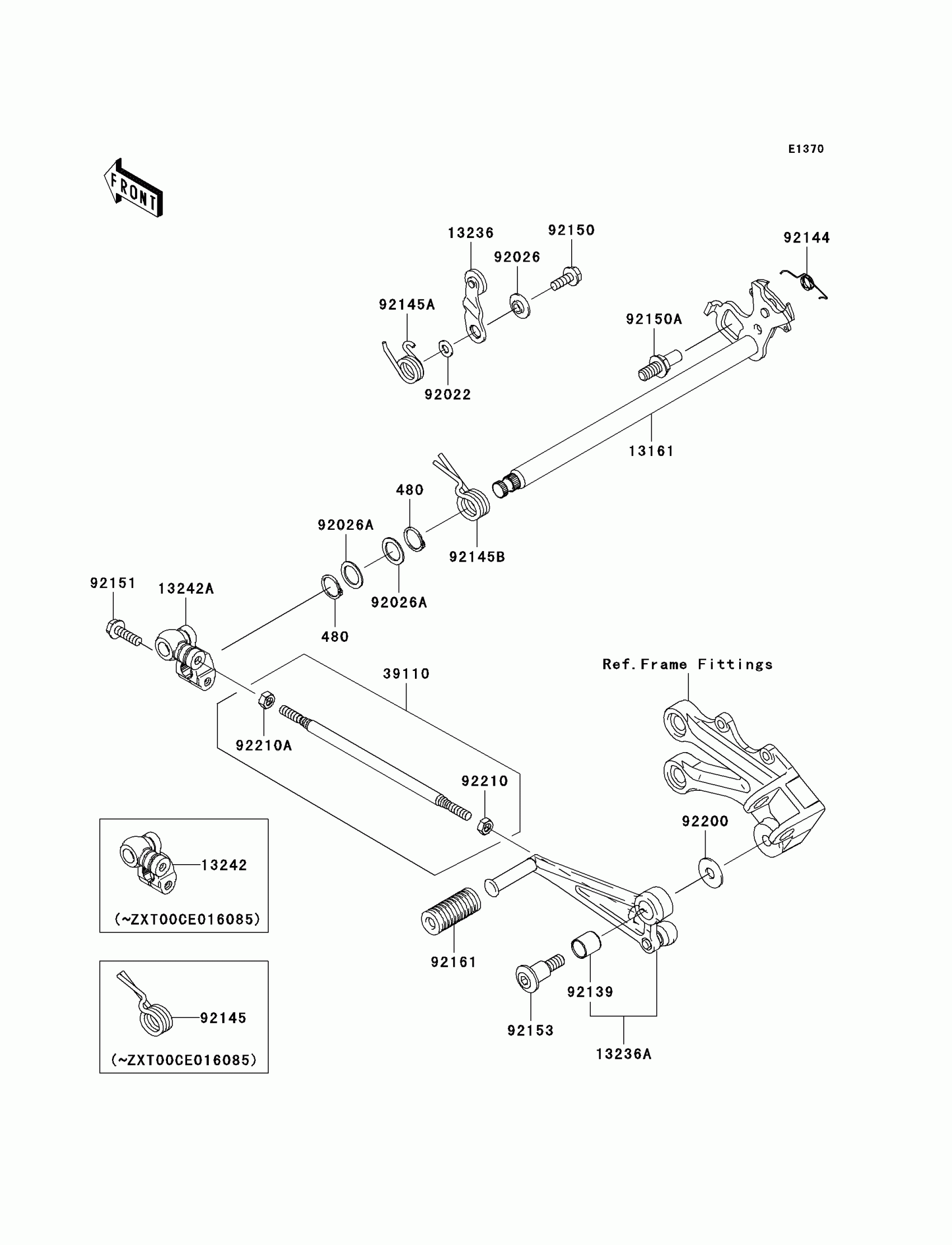

Kawasaki Ninja® ZX™-10R Gear Change Mechanism Diagram

Description

Price

480

CIRCLIP-TYPE-C,14MM

480J1400

$3.81

13161

LEVER-COMP-CHANGE SHAFT

13161-0011

$107.32

13236

LEVER-COMP,POSITION

13236-0062

$9.34

13236A

LEVER-COMP,CHANGE PEDAL

13236-0063

$113.52

13242

LEVER-ASSY-CHANGE

13242-0013

Unavailable

13242A

LEVER-ASSY-CHANGE

13242-0016

Unavailable

39110

ROD-ASSY-TIE

39110-1131

$22.95

92022

WASHER,6X12.8X1.2

92022-1827

$3.57

92026

SPACER

92026-1217

$4.18

92026A

SPACER,14X20X1.0

92026-1534

$3.85

92139

BUSHING

92139-0023

$2.80

92144

SPRING

92144-1029

$5.93

92145

SPRING

92145-0201

$5.02

92145A

SPRING

92145-0202

$4.58

92145B

SPRING

92145-0256

$8.64

92150

BOLT,FLANGED,6X16

92150-1394

$3.59

92150A

BOLT,RETURN SPRING

92150-1869

$8.37

92151

BOLT,FLANGED,6X20

92151-1226

$1.76

92153

BOLT,SOCKET,8X16.7

92153-0446

$7.70

92161

DAMPER,CHANGE PEDAL

92161-1300

$4.65

92200

WASHER,8.0X22.0X1.5

92200-0174

$1.85

92210

NUT,6MM

92210-1100

$1.68

92210A

NUT,LEFT HANDED,6MM

92210-1101

$1.20
