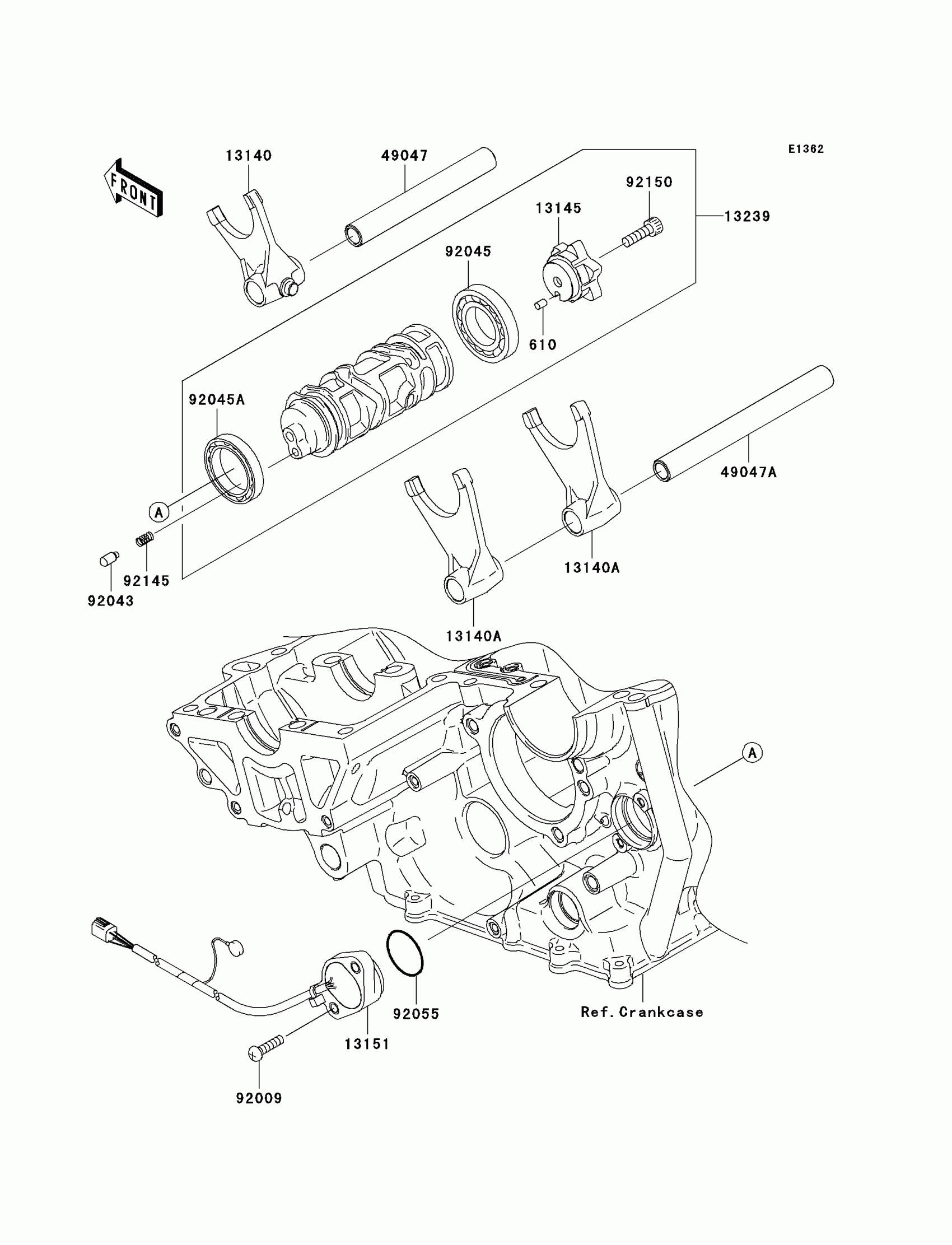

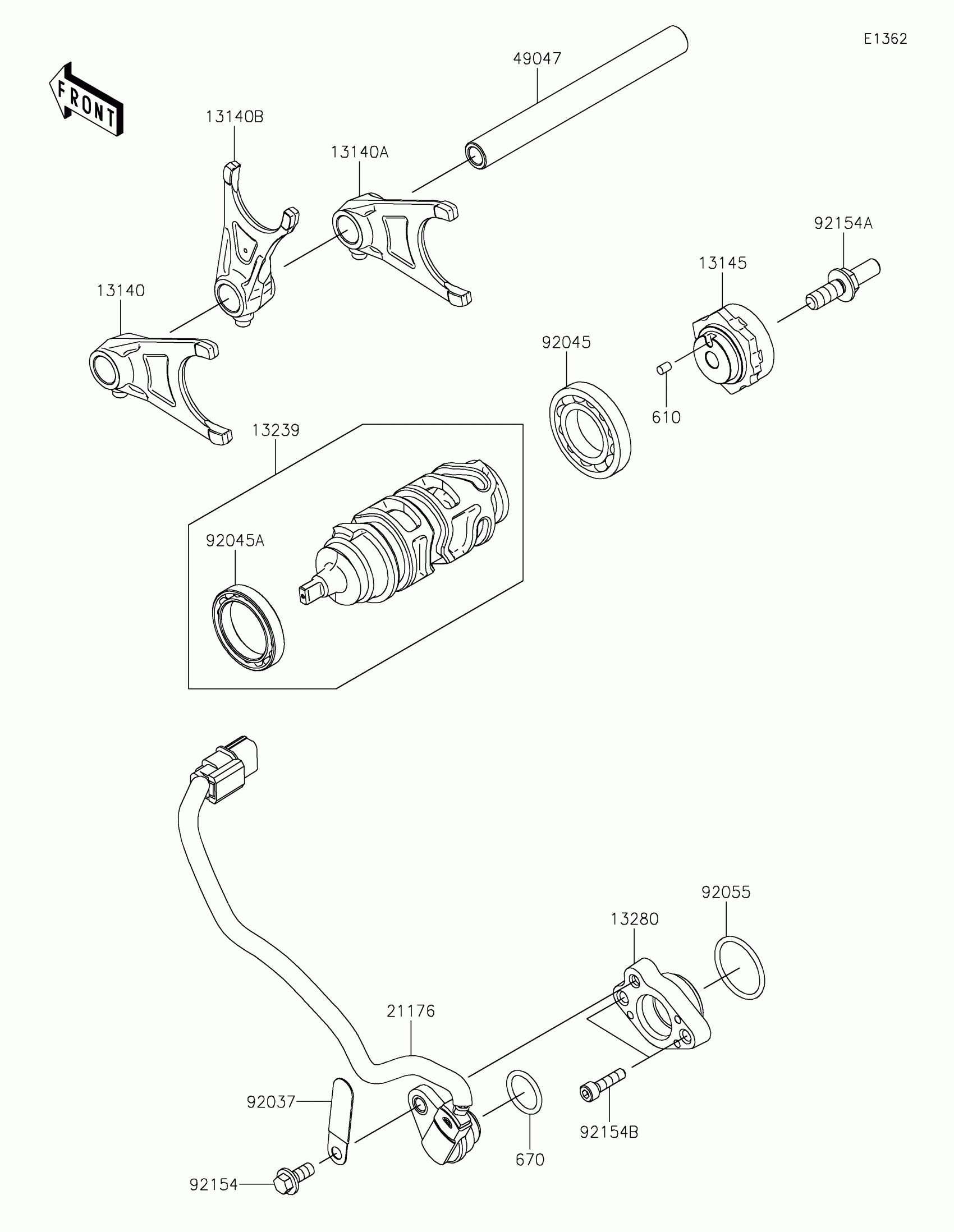

Kawasaki Ninja® ZX™-10R Gear Change Drum/Shift Fork(s) Diagram

Description

Price

610

ROLLER,4X6

610A0406

$4.31

13140

FORK-SHIFT,INPUT

13140-0006

$120.13

13140A

FORK-SHIFT,OUTPUT

13140-0007

$120.13

13145

CAM-CHANGE DRUM

13145-0012

$67.46

13151

SWITCH-COMP,NEUTRAL

13151-0005

Unavailable

13239

DRUM-ASSY-CHANGE

13239-0010

$263.99

49047

ROD-SHIFT,INPUT

49047-0005

$32.11

49047A

ROD-SHIFT,OUTPUT

49047-0006

$32.11

92009

SCREW,PAN-WP-CROS,5X20

92009-1905

$1.83

92043

92043-1654

$3.74

92045

BEARING-BALL,16005

92045-1045

$28.25

92045A

BEARING-BALL,6806

92045-1152

$45.82

92055

RING-O,27.7X2.4

92055-091

$6.22

92145

SPRING

92145-1414

$4.14

92150

BOLT,SOCKET,6X20

92150-1880

$3.94
