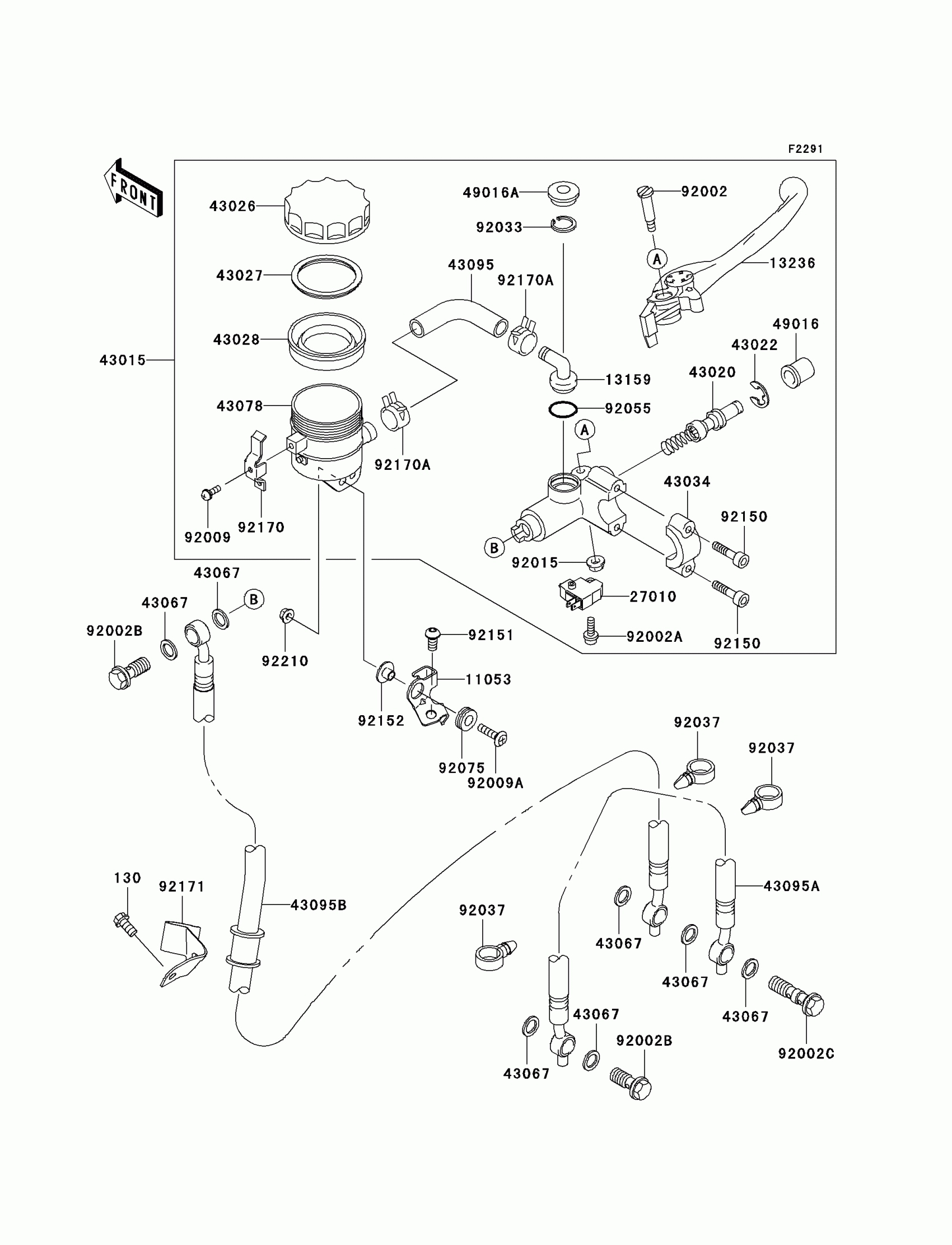

Kawasaki Ninja® ZX™-10R Front Master Cylinder Diagram

#

Description
Price

130

BOLT-FLANGED,6X12

130L0612

Unavailable

11053

BRACKET,RESERVOIR TANK

11053-0338

$9.22

13159

CONNECTOR

13159-1061

$9.85

13236

LEVER-COMP,FRONT BRAKE

13236-0064

$70.94

27010

SWITCH,BRAKE

27010-1170

$32.62

43015

CYLINDER-ASSY-MASTER,FR

43015-0031

$402.53

43020

PISTON-COMP-BRAKE,FR

43020-1056

$58.51

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43026

CAP-BRAKE

43026-1051

$30.63

43027

PLATE-DIAPHRAGM

43027-1051

$4.04

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$14.40

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-0002

$22.81

43067

WASHER,10.5X15X1.5

43067-001

$1.57

43078

RESERVOIR

43078-1099

$28.99

43095

HOSE-BRAKE,FR MASTER CYLINDER

43095-0040

$9.11

43095A

HOSE-BRAKE,FR

43095-0067

$93.72

43095B

HOSE-BRAKE,FR

43095-0072

$93.00

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

49016A

COVER-SEAL

49016-1147

$4.72

92002

BOLT,LEVER SET,BLACK

92002-1322

$8.91

92002A

BOLT,SCREW,4X12

92002-1323

$2.99

92002B

BOLT,OIL,L=23

92002-1888

$4.15

92002C

BOLT,OIL,L=37

92002-1909

$9.00

92009

SCREW

92009-1570

$2.49

92009A

SCREW,5X20

92009-1934

$1.16

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92033

RING-SNAP,20.5MM

92033-1186

$3.78

92037

CLAMP,HOSE

92037-1827

$5.69

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92075

DAMPER

92075-161

$3.57

92150

BOLT

92150-1328

$4.59

92151

BOLT,SOCKET,6X12

92151-1219

$4.58

92152

COLLAR

92152-0017

$1.98

92170

CLAMP

92170-1090

$13.69

92170A

CLAMP,HOSE

92170-1091

$3.81

92171

CLAMP,HOSE

92171-0376

$8.32

92210

NUT,FLANGED,5MM

92210-0007

$1.90
