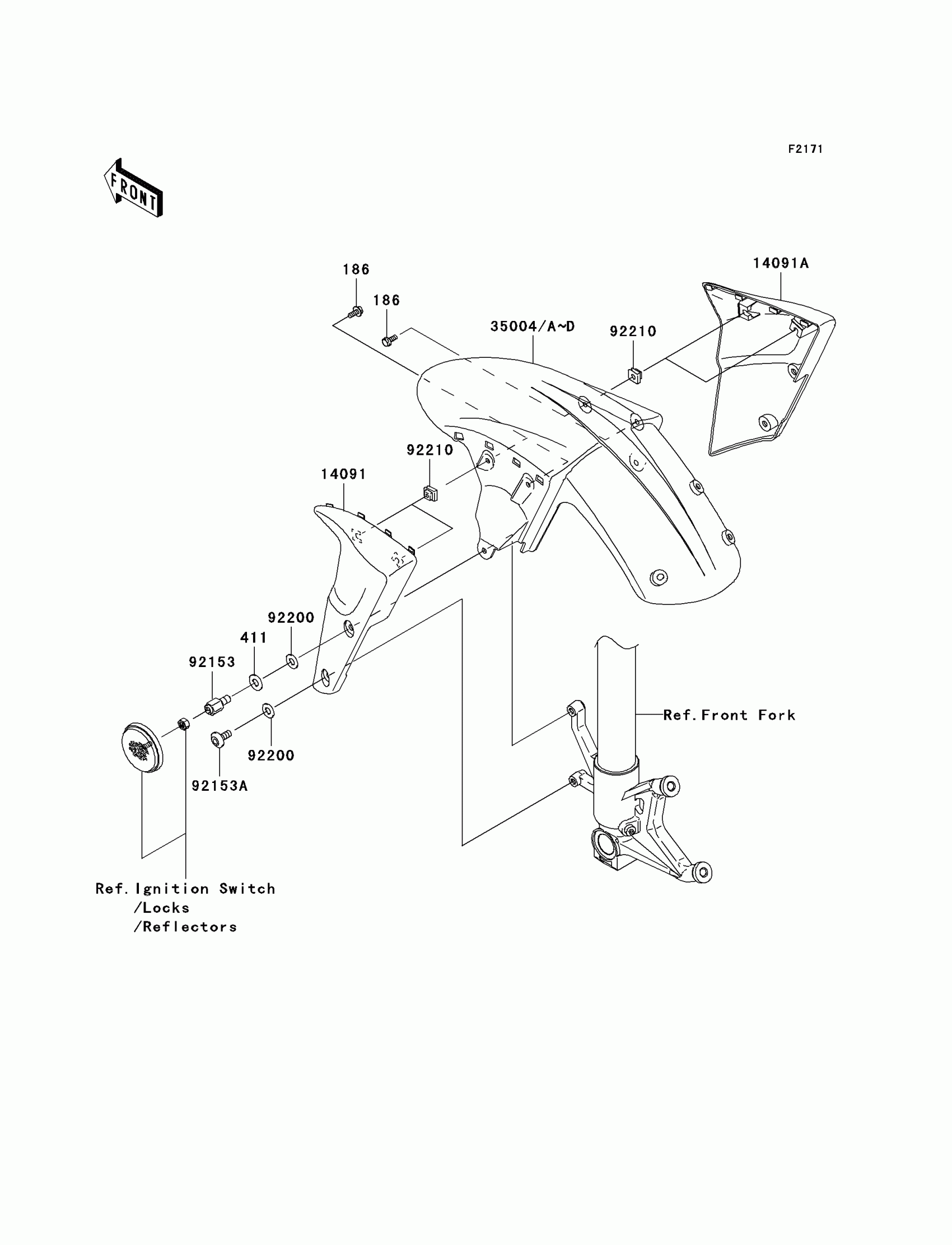

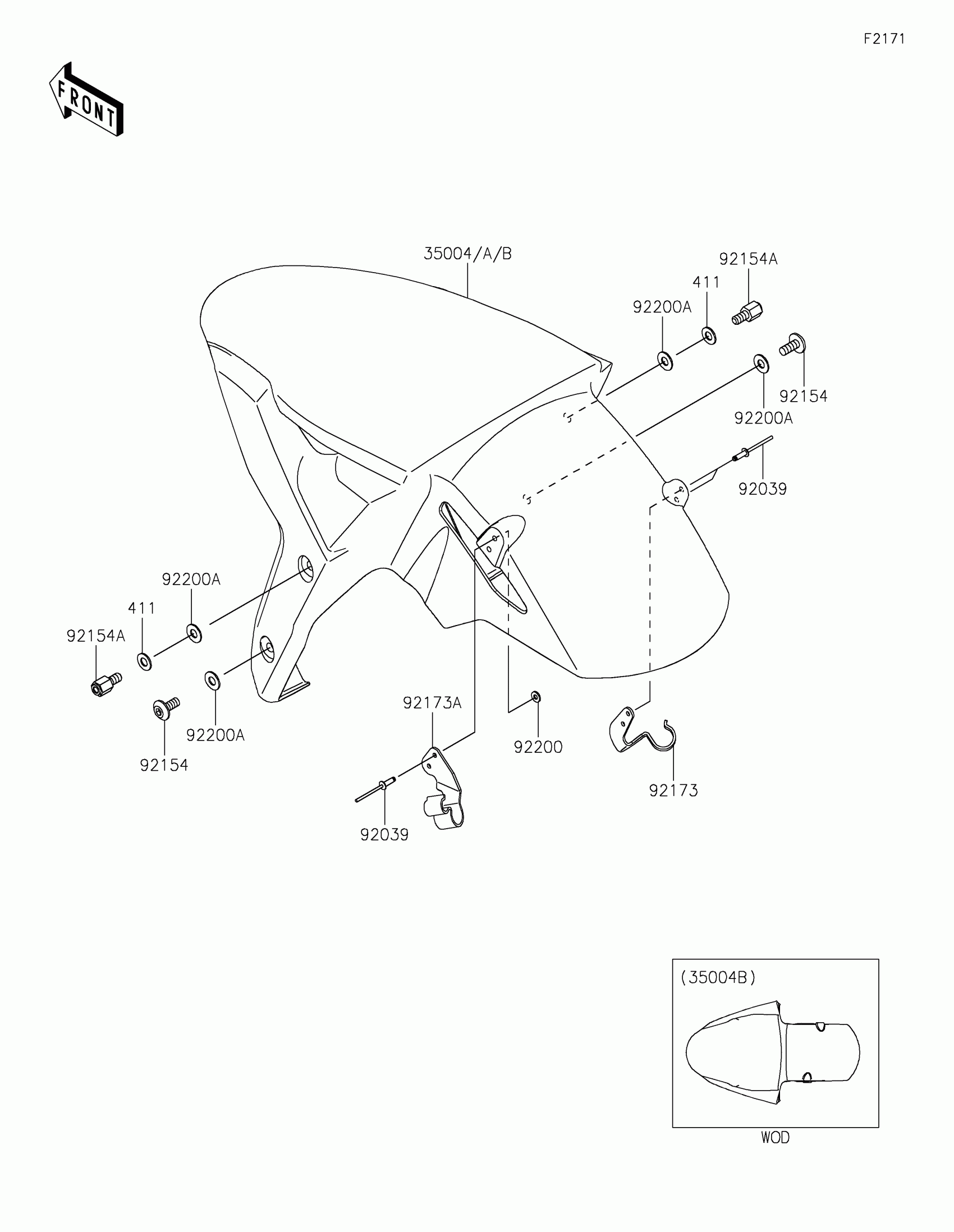

Kawasaki Ninja® ZX™-10R Front Fender(s) Diagram

Description

Price

186

BOLT-UPSET-WP,5X14

186L0514

$2.29

411

WASHER PLAIN

411F0600

$1.18

14091

COVER,FRONT FENDER,LH,F.BLACK

14091-0103-6Z

$41.10

14091A

COVER,FRONT FENDER,RH,F.BLACK

14091-0104-6Z

$41.10

35004C

FENDER-FRONT,C.P.BLUE

35004-0076-723

$175.44

35004D

FENDER-FRONT,L.GREEN

35004-0076-777

$203.06

92153

BOLT,6MM

92153-0335

$4.67

92153A

BOLT,SOCKET,6X14

92153-1612

$1.83

92200

WASHER,6.5X14X1

92200-1388

$2.46

92210

NUT,5MM

92210-1266

$7.38

35004A

FENDER-FRONT,EBONY

35004-0076-H8

$203.06

35004B

FENDER-FRONT,P.RED

35004-0076-234

$203.06
