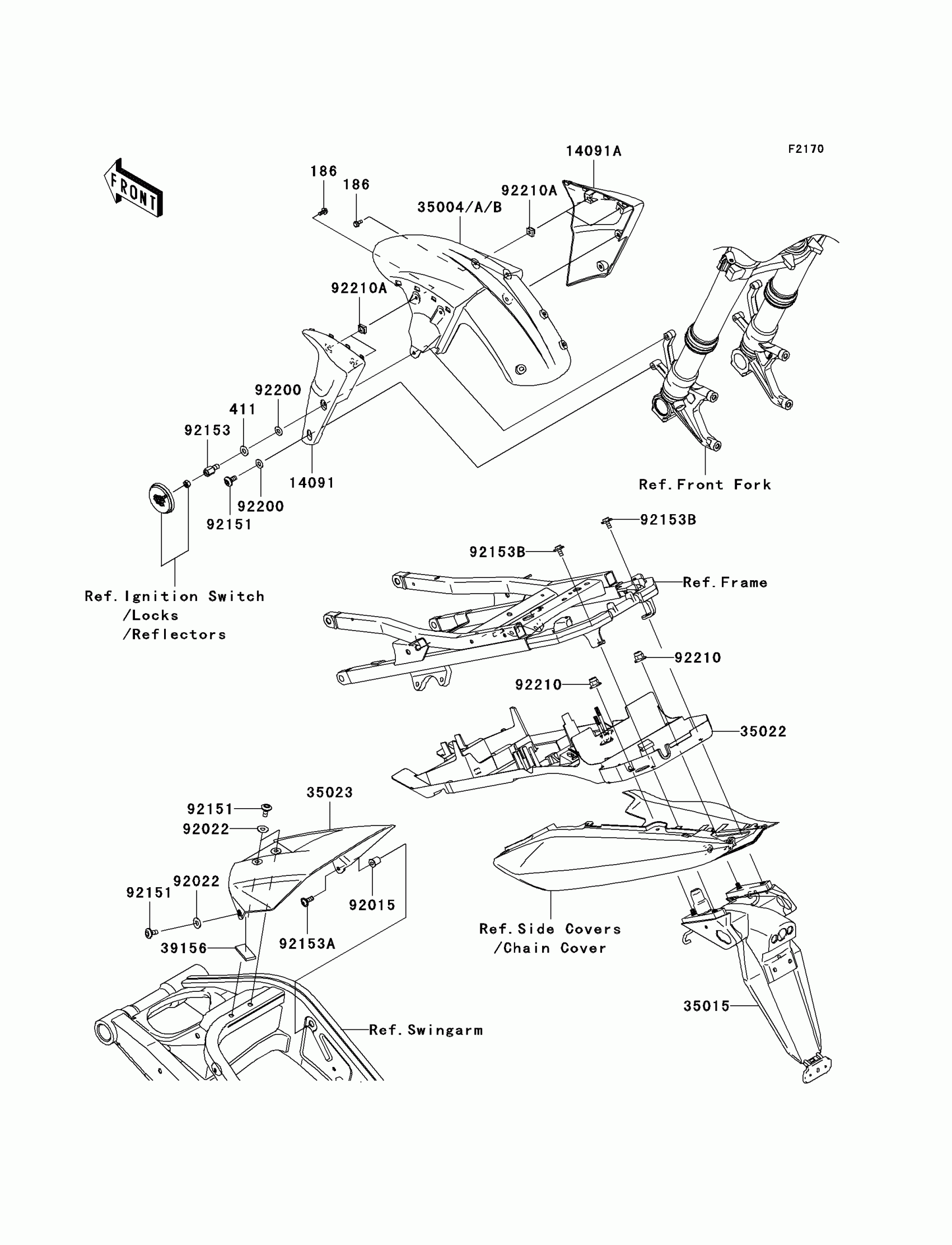

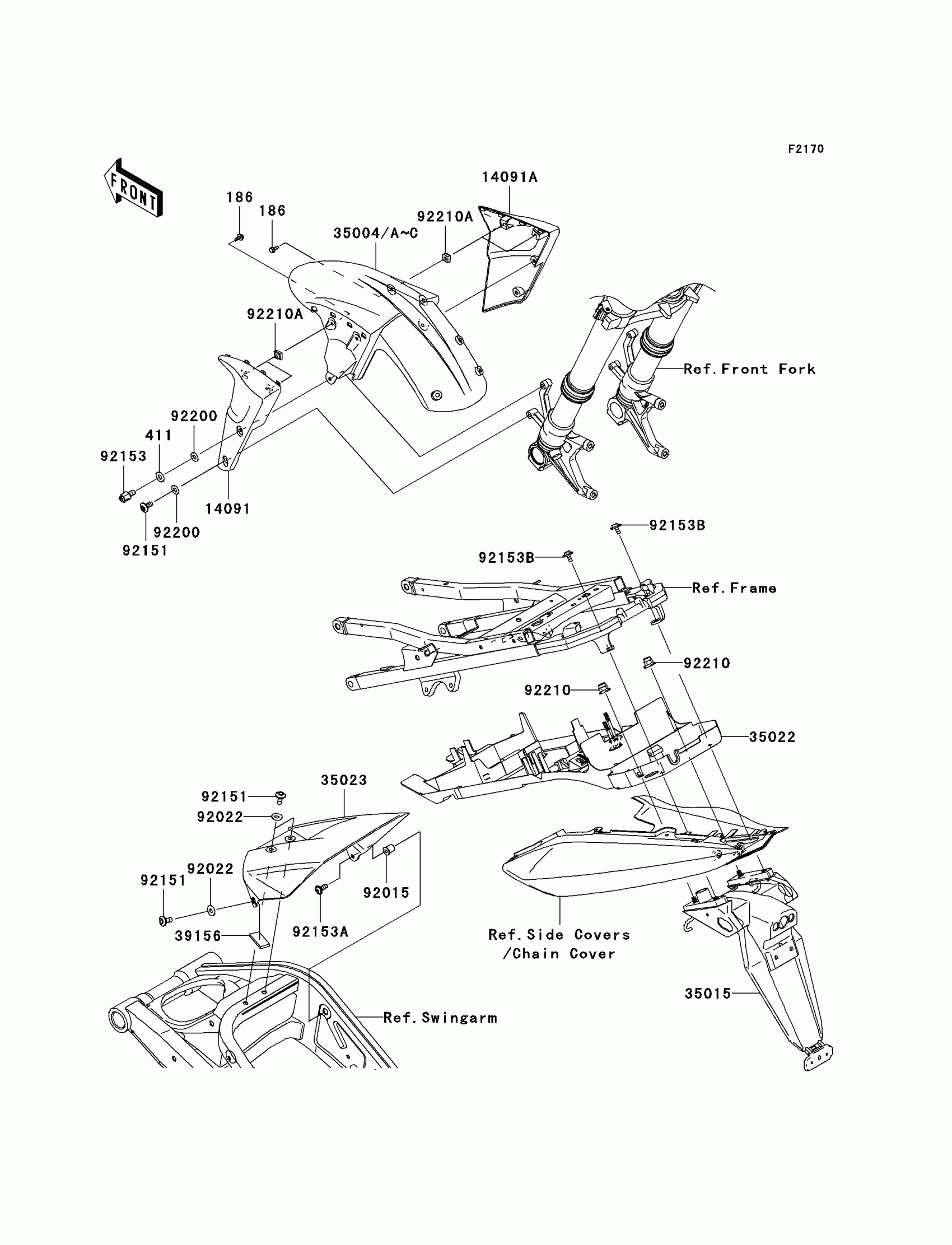

Kawasaki Ninja® ZX™-10R Fenders Diagram

Description

Price

186

BOLT-UPSET-WP,5X14

186L0514

$2.29

411

WASHER PLAIN

411F0600

$1.18

14091

COVER,FRONT FENDER,LH,F.BLACK

14091-0103-6Z

$41.10

14091A

COVER,FRONT FENDER,RH,F.BLACK

14091-0104-6Z

$41.10

35004

FENDER-FRONT,P.M.RED

35004-0034-724

$203.06

35004A

FENDER-FRONT,M.F.R.TITANIUM

35004-0034-725

Unavailable

35004B

FENDER-FRONT,L.GREEN

35004-0034-777

$203.06

35015

FLAP-COMP

35015-0004

$105.22

35022

FENDER-COMP-REAR

35022-0019

$110.46

35023

FENDER-REAR,INNER,BLACK

35023-0051-6D

$93.59

39156

PAD,RR FENDER

39156-0061

$4.70

92015

NUT

92015-1700

$8.58

92022

WASHER,6.5X16X1

92022-1143

$3.92

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92153

BOLT,6MM

92153-0335

$4.67

92153A

BOLT,6X18

92153-0478

$2.55

92153B

BOLT,6X20

92153-0562

$2.12

92200

WASHER,6.5X14X1

92200-1388

$2.46

92210

NUT,CAP,6MM

92210-0170

$2.90

92210A

NUT,5MM

92210-1266

$7.38
