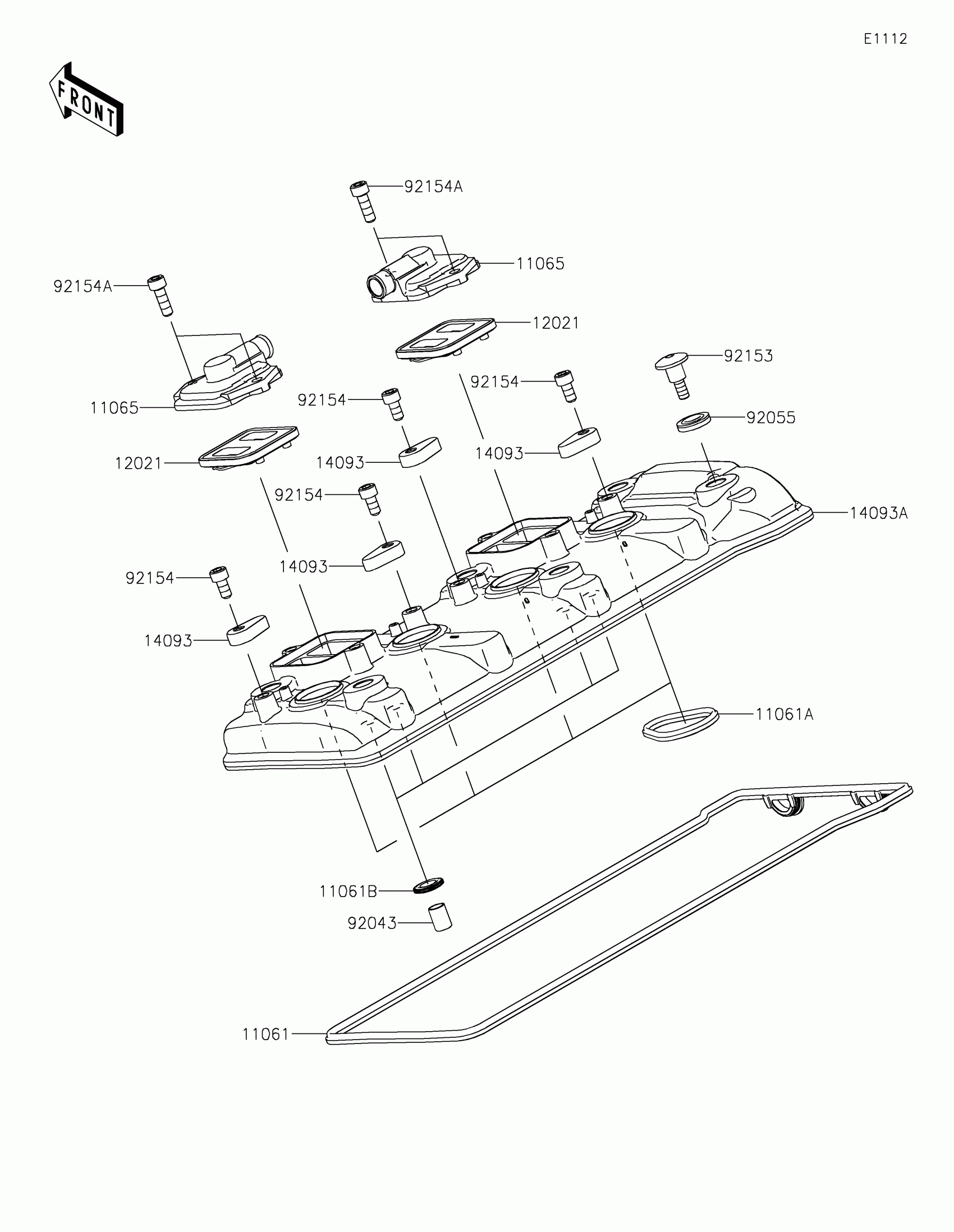

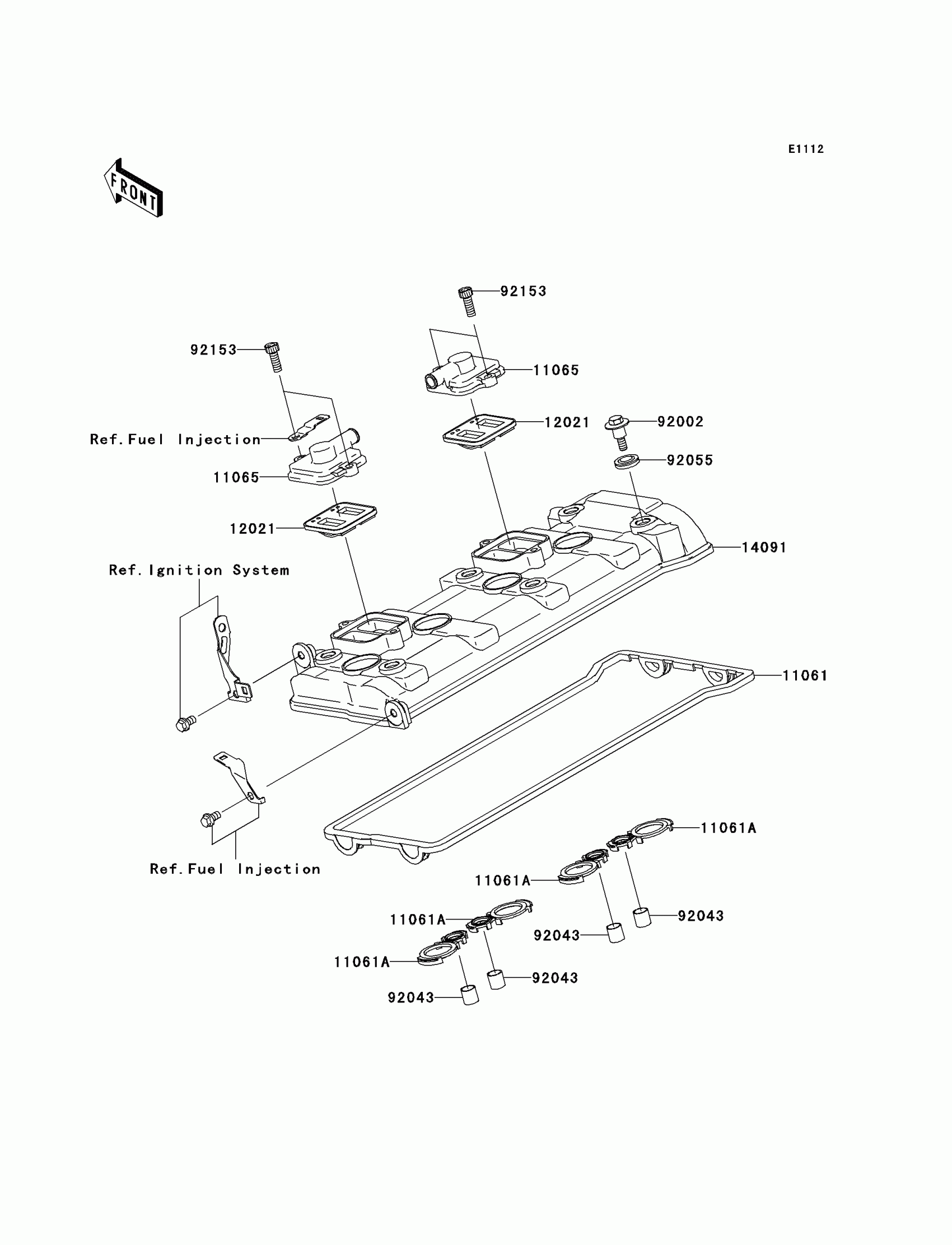

Kawasaki NINJA® ZX™-10R Cylinder Head Cover Diagram

Description

Price

11061

GASKET,HEAD COVER

11061-1290

$54.21

11061A

GASKET,PLUG HOLE

11061-1291

$8.90

11061B

GASKET

11061-1292

$7.22

11065

CAP

11065-0360

$32.49

12021

VALVE-ASSY-REED

12021-0021

$80.05

14093

COVER

14093-0770

$3.18

14093A

COVER,HEAD

14093-1092

$278.13

92043

PIN,DOWEL,10X14

92043-1037

$0.74

92055

RING-O

92055-0785

$5.33

92153

BOLT,SOCKET,6X22.5

92153-1779

$3.90

92154

BOLT,SOCKET,6X12

92154-1820

$1.71

92154A

BOLT,SOCKET,6X18

92154-1832

$2.80
