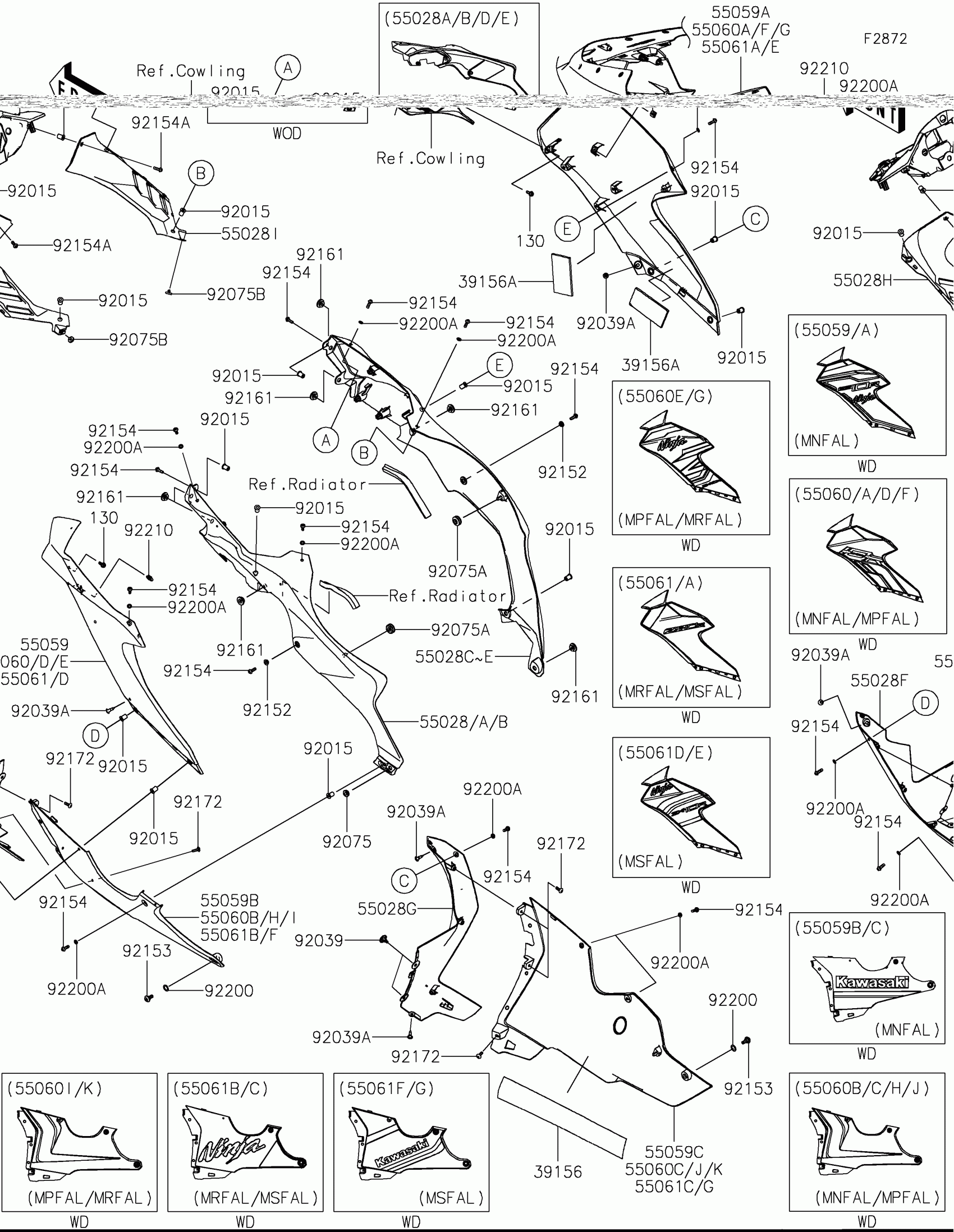

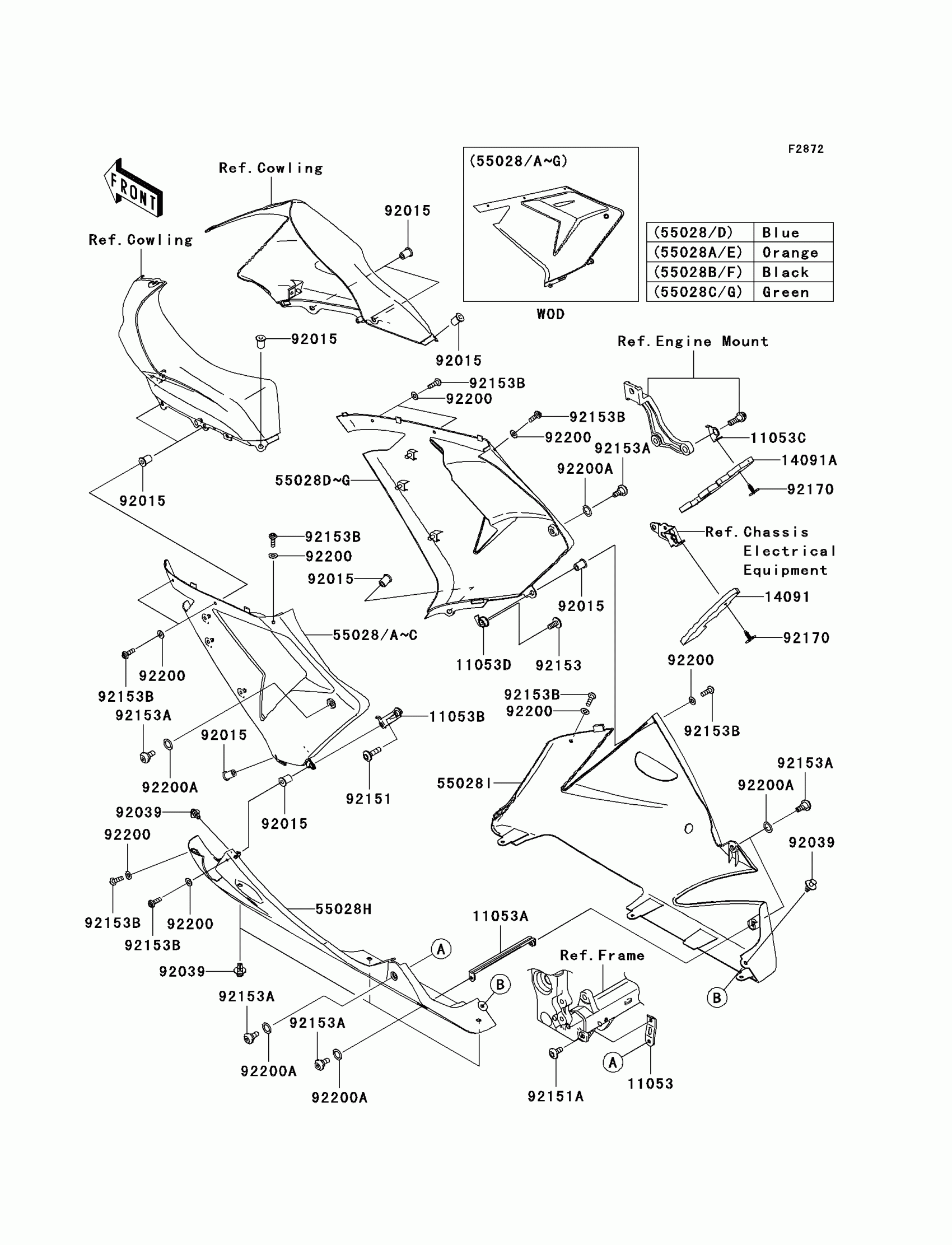

Kawasaki NINJA® ZX™-10R Cowling Lowers Diagram

#

Description
Price

11056

BRACKET,FUSE BOX

11056-0457

$10.99

11056A

BRACKET

11056-0709

$4.24

11056B

BRACKET

11056-0710

$4.24

39156

PAD,49X400X0.3

39156-0753

$17.74

53044

TRIM

53044-0552

$1.70

55027

COWLING-ASSY,INNER,LH,F.BLACK

55027-0060-6Z

$44.35

55027A

COWLING-ASSY,INNER,RH,F.BLACK

55027-0061-6Z

$44.35

55028A

COWLING,SIDE,UPP,LH,P.F.C.WHT

55028-0333-46K

$280.32

55028C

COWLING,SIDE,UPP,LH,L.GREEN

55028-0333-777

$280.32

55028E

COWLING,SIDE,UPP,RH,P.F.C.WHT

55028-0334-46K

$280.32

55028G

COWLING,SIDE,UPP,RH,L.GREEN

55028-0334-777

$280.32

55028H

COWLING,SIDE,FR,LH,F.BLACK

55028-0336-6Z

$70.43

55028I

COWLING,SIDE,FR,RH,F.BLACK

55028-0337-6Z

$67.93

55055

COWLING,SIDE,LH,F.EBONY

55055-5322-45L

$506.06

55055A

COWLING,SIDE,RH,F.EBONY

55055-5323-45L

$506.06

92015

NUT,WELL,5MM

92015-1757

$7.29

92039

RIVET,HOLE 8MM

92039-0014

$3.29

92039A

RIVET

92039-0068

$2.97

92075

DAMPER

92075-1067

$4.69

92152

COLLAR,5.3X7.3X5.3

92152-0912

$3.69

92153

BOLT,SOCKET,6MM

92153-0489

$3.73

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92160

DAMPER

92160-1613

$3.74

92172

SCREW,TAPPING,5X10

92172-0262

$1.34

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.86

92200A

WASHER,10.4X15.9X0.5

92200-0157

$2.15
