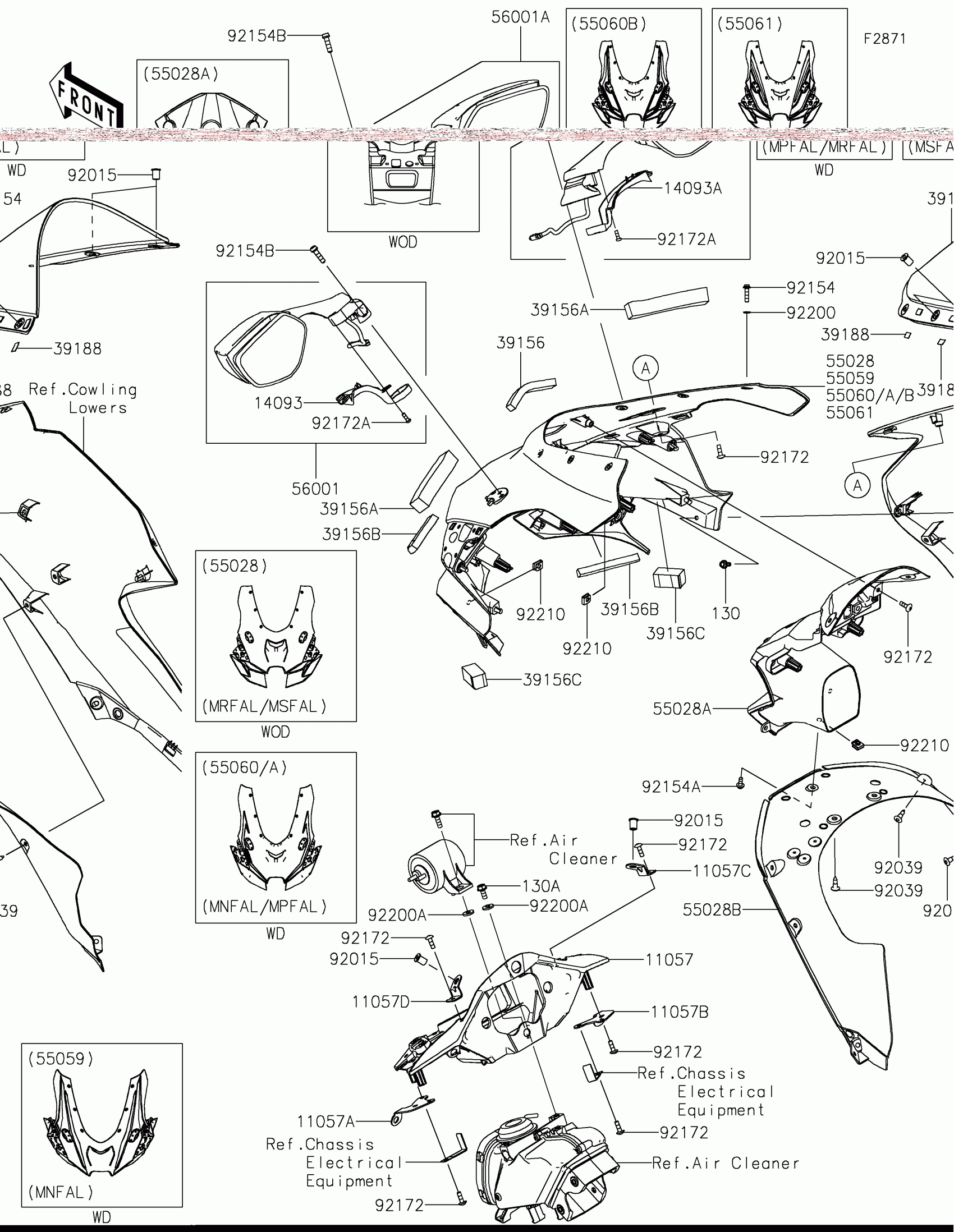

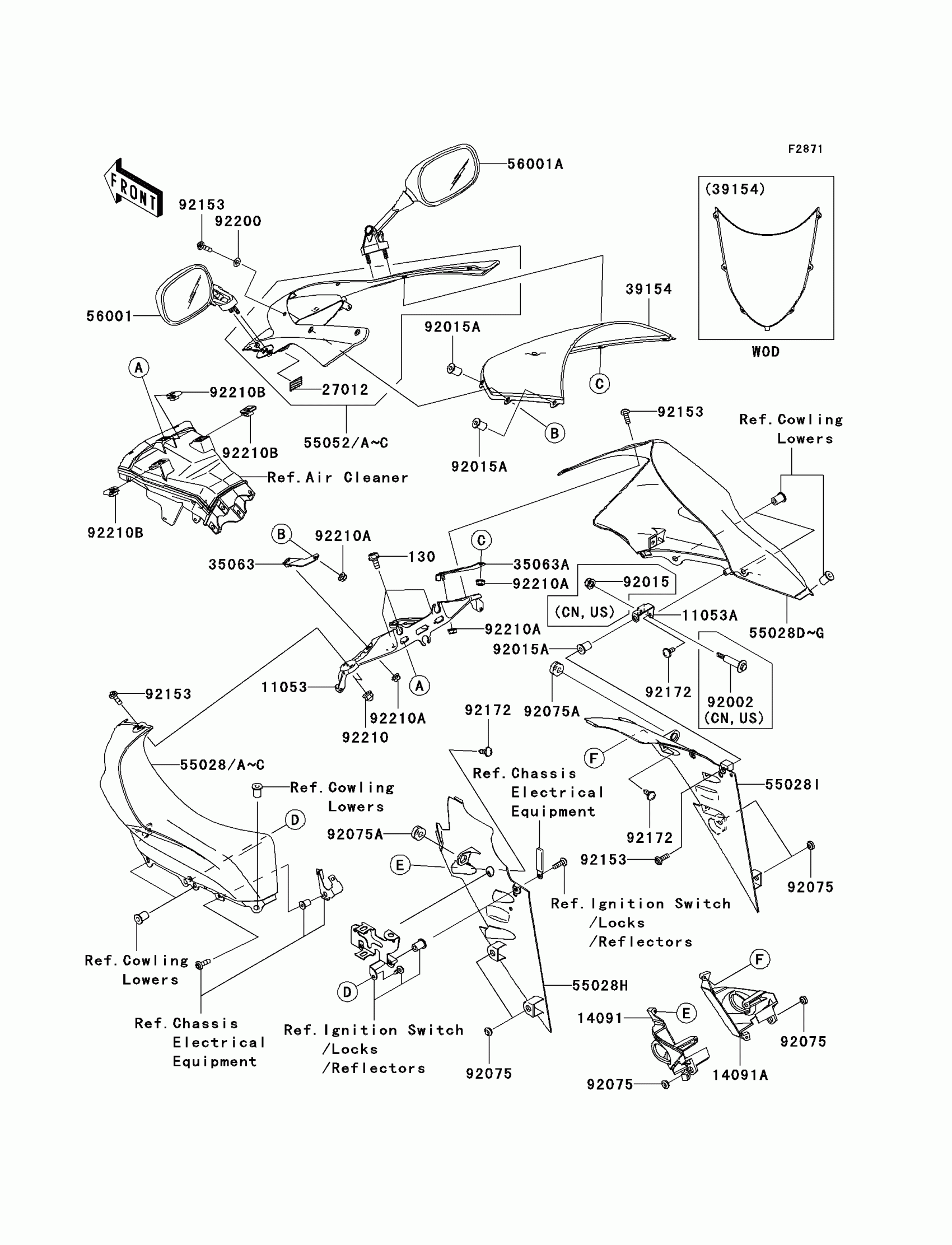

Kawasaki NINJA® ZX™-10R Cowling Diagram
#
Description
Price
11057
BRACKET,MIRROR&METER
11057-4164
$112.37
11057A
BRACKET,LH
11057-4205
$4.10
11057B
BRACKET,RH
11057-4206
$4.10
11057C
BRACKET,WINDSHIELD,RH
11057-4254
$4.10
11057D
BRACKET,WINDSHIELD,LH
11057-4255
$4.10
14093
COVER,MIRROR,LH
14093-0343
$12.18
14093A
COVER,MIRROR,RH
14093-0344
$12.18
39154
WINDSHIELD
39154-0403
$180.82
39156
PAD,10X15X95
39156-2719
$1.98
39156A
PAD,20X20X120
39156-2720
$3.56
39156B
PAD,10X10X90
39156-2721
$1.73
39156C
PAD,20X20X40
39156-2722
$1.73
39188
TAPE
39188-0022
$0.84
55028
COWLING,UPP,CNT,EBONY
55028-0756-H8
$558.90
55028A
COWLING,RAM AIR
55028-0757
$88.56
55028B
COWLING,FR,INNER
55028-0758
$74.58
55060A
COWLING,UPP,CNT,M.D.BLACK+GRY
55060-5309-68X
$915.91
55060B
COWLING,UPP,CNT,L.GREEN
55060-5310-777
$831.92
55061
COWLING,UPP,CNT,L.GREEN
55061-5321-777
$700.24
56001
MIRROR-ASSY,LH
56001-0425
$196.91
56001A
MIRROR-ASSY,RH
56001-0426
$196.91
92015
NUT,WELL,5MM
92015-1757
$7.29
92039
RIVET
92039-0068
$2.97
92154
BOLT,SOCKET,5X20
92154-0210
$2.12
92154A
BOLT,SOCKET,5X12
92154-0917
$4.72
92154B
BOLT,SOCKET,6X22,MEC
92154-2736
$2.70
92172
SCREW,TAPPING,5X16
92172-0175
$1.78
92172A
SCREW-PAN-CROS,4X10
92172-0871
$0.63
92200
WASHER,5.2X10X1.0
92200-1820
$0.63
92200A
WASHER,6.5X16X2
92200-1834
$1.00
92210
NUT
92210-0571
$3.52
130
BOLT-FLANGED,5X12
130BA0512
$2.22
130A
BOLT-FLANGED,6X14
130BA0614
$1.20
