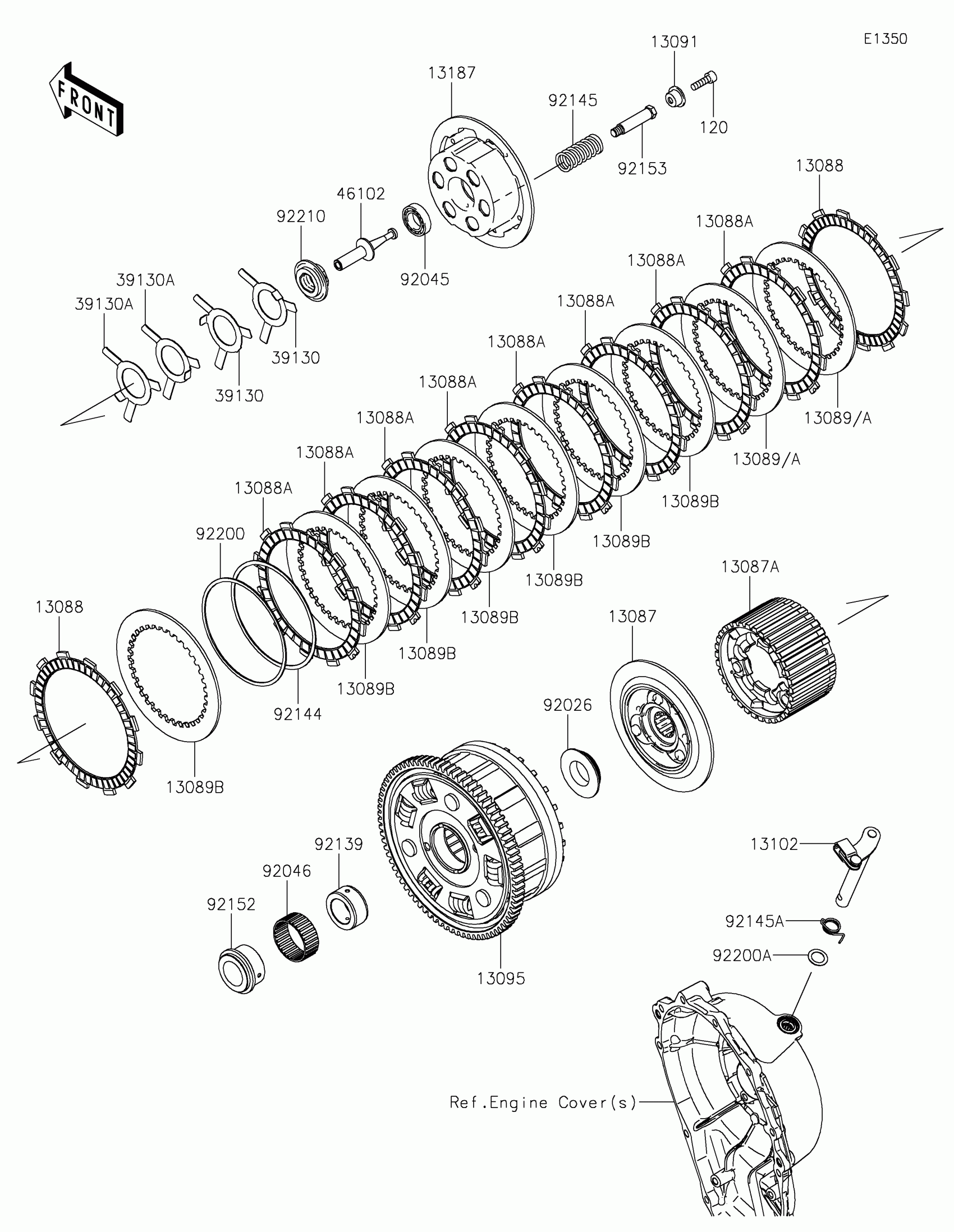

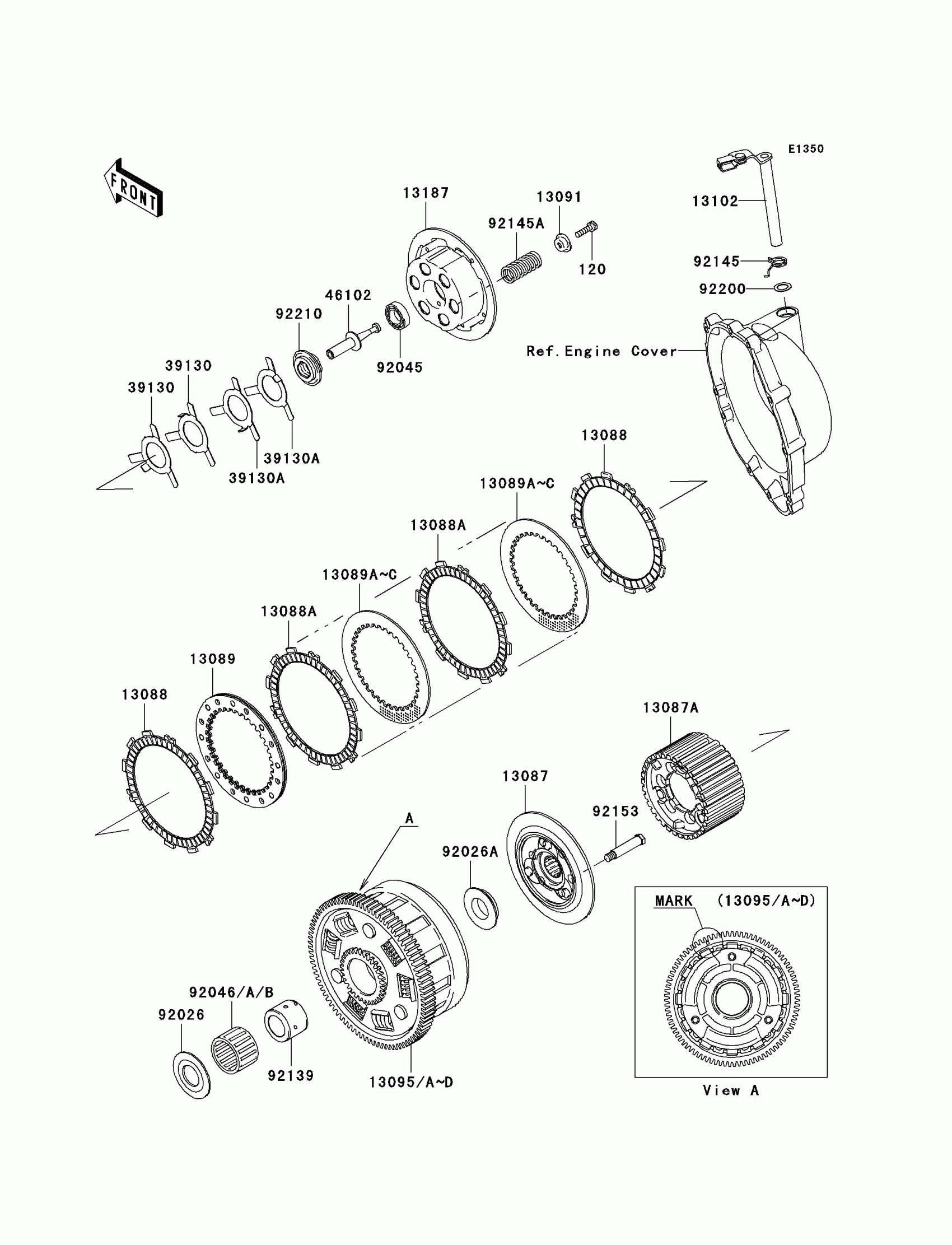

Kawasaki Ninja® ZX™-10R Clutch Diagram

#

Description
Price

120

BOLT-SOCKET

120W0620

$1.74

13087

HUB-CLUTCH

13087-0010

$130.85

13087A

HUB-CLUTCH

13087-0011

$193.80

13088

PLATE-FRICTION

13088-0003

$18.69

13088A

PLATE-FRICTION

13088-0013

$18.69

13089

PLATE-CLUTCH,SPG COMP

13089-0003

$53.27

13089A

PLATE-CLUTCH,T=2.3

13089-1084

Unavailable

13089B

PLATE-CLUTCH,T=2.9

13089-1093

Unavailable

13089C

PLATE-CLUTCH,T=2.6

13089-1115

$12.86

13091

HOLDER,CLUTCH SPRING

13091-1041

$12.23

13095

HOUSING-COMP-CLUTCH,"A" MARK

13095-0031

Unavailable

13095A

HOUSING-COMP-CLUTCH,"B" MARK

13095-0032

Unavailable

13095B

HOUSING-COMP-CLUTCH,NO MARK

13095-0033

Unavailable

13095C

HOUSING-COMP-CLUTCH,"C" MARK

13095-0034

Unavailable

13095D

HOUSING-COMP-CLUTCH,"D" MARK

13095-0035

Unavailable

13102

RELEASE-COMP-CLUTCH

13102-0012

$69.32

13187

PLATE-CLUTCH OPERATING

13187-0006

$84.73

39130

SPRING-LEAF

39130-1078

$9.89

39130A

SPRING-LEAF

39130-1079

$9.89

46102

ROD

46102-0047

$67.80

92026

SPACER

92026-0029

$9.51

92026A

SPACER

92026-0037

$19.32

92045

BEARING-BALL,6903/2A

92045-1053

$26.91

92046

BEARING-NEEDLE,CLUTCH,"1"

92046-0010

Unavailable

92046A

BEARING-NEEDLE,CLUTCH,"2"

92046-0011

$28.93

92046B

BEARING-NEEDLE,K38X43X28.8X

92046-1263

Unavailable

92139

BUSHING,25X38X29.05

92139-0067

$37.06

92145

SPRING

92145-0194

$4.70

92145A

SPRING,CLUTCH

92145-0220

$7.20

92153

BOLT

92153-0553

$6.12

92200

WASHER,12X18.5X0.5

92200-1487

$2.75

92210

NUT

92210-0152

$10.11
