- NINJA® ZX™-10R
Chassis Electrical Equipment

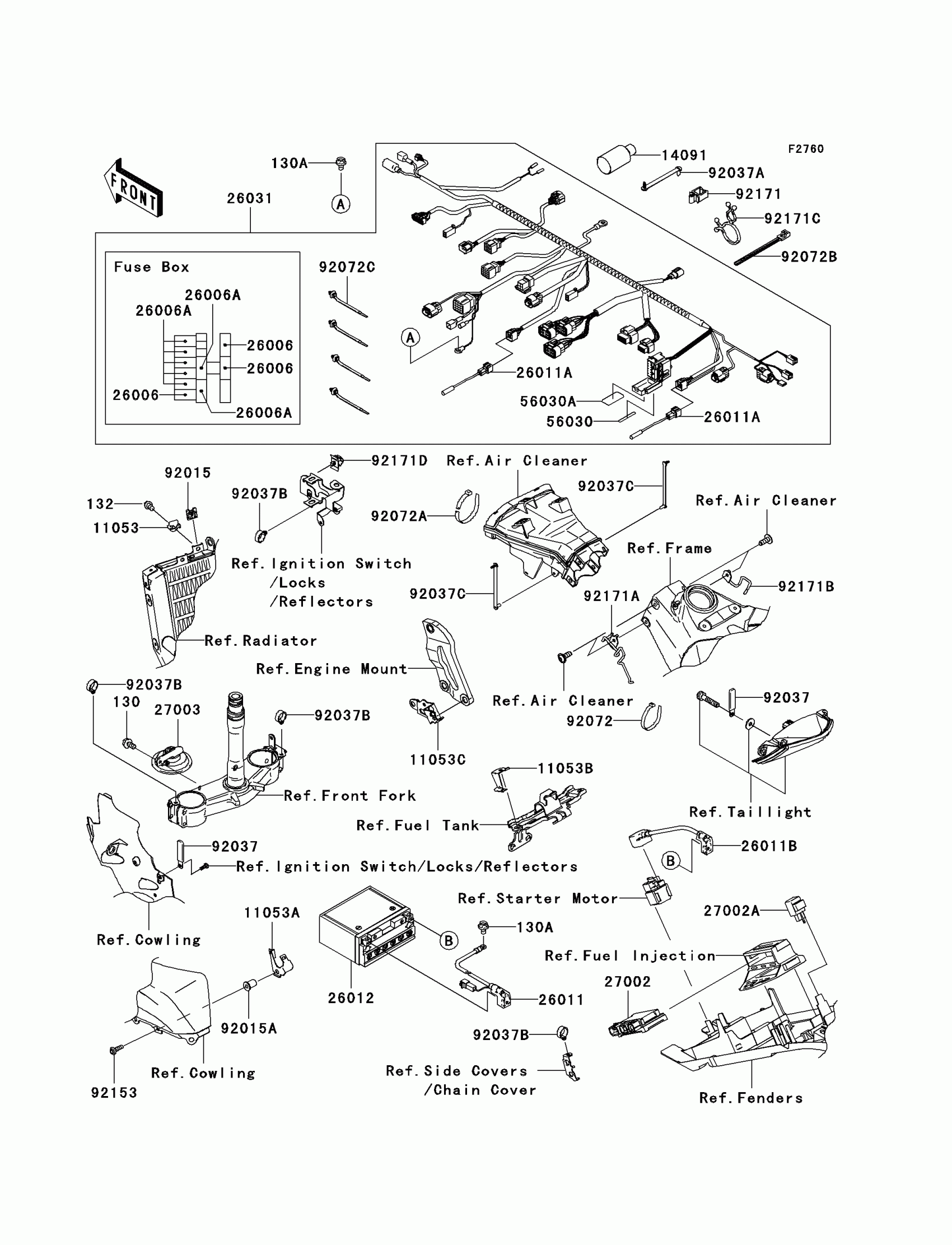

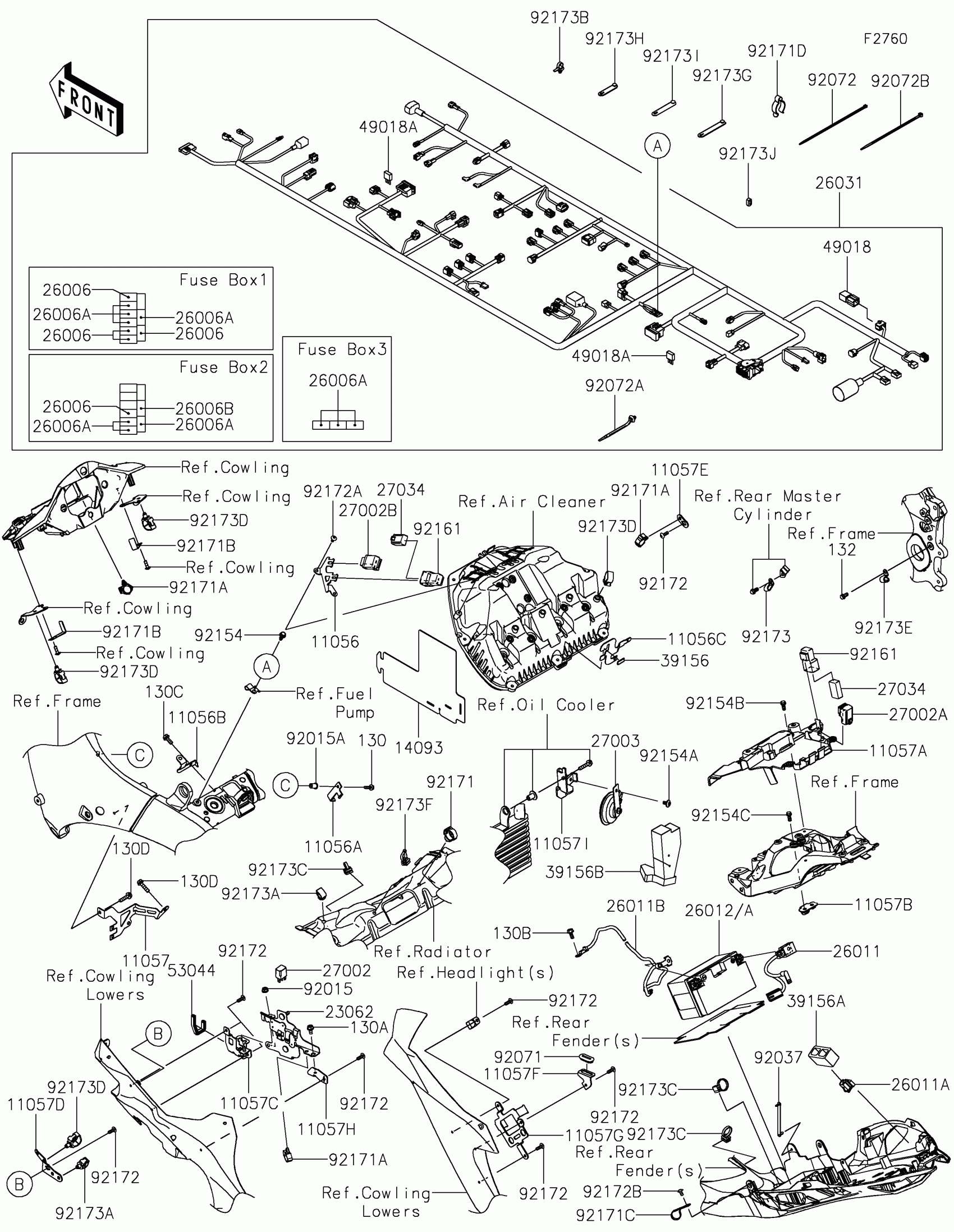

Kawasaki NINJA® ZX™-10R Chassis Electrical Equipment Diagram
#
11056
BRACKET,RELAY
11056-7706
$5.44
11056A
BRACKET,FRAME,LH
11056-7828
$5.69
11056B
BRACKET,CROSS FRAME
11056-7829
$6.24
11056C
BRACKET,HARNESS
11056-7955
$7.33
11057
BRACKET,SHIFTER&GEAR POSITION
11057-0068
$10.72
11057A
BRACKET,TOOL
11057-4222
$30.40
11057B
BRACKET,ECU
11057-4225
$5.57
11057C
BRACKET,FUSE
11057-4227
$8.74
11057D
BRACKET,SIDE COWL.,LH
11057-4228
$6.77
11057E
BRACKET,SIDE COWL.,RH
11057-4229
$3.86
11057F
BRACKET,REGULATOR UNDER
11057-4230
$6.03
11057G
BRACKET,HEAD LAMP ECU
11057-4231
$20.86
11057H
BRACKET
11057-4232
$5.57
11057I
BRACKET,HORN
11057-4246
$47.01
14093
COVER,RELAY
14093-0476
$31.84
23062
BRACKET-COMP,REGULATOR
23062-1301
$17.58
26006
FUSE,MINI BLADE,15A,BLUE
26006-0001
$6.12
26006A
FUSE,MINI BLADE,10A,RED
26006-1078
$4.87
26006B
FUSE,MINI BLADE,30A,GREEN
26006-1080
$4.87
26011
WIRE-LEAD,BATTERY(+)
26011-1890
$29.89
26011A
WIRE-LEAD,DIAG CONNECTOR
26011-1901
$37.01
26011B
WIRE-LEAD,BATTERY(-)
26011-1956
$54.51
26012A
BATTERY,YTZ10S,12V 8.6AH
26012-1504
$205.86
26031
HARNESS,MAIN
26031-3788
$1,702.94
27002
RELAY-ASSY,HEAD LAMP
27002-0045
$42.21
27002A
RELAY-ASSY,STARTER
27002-0047
$36.91
27002B
RELAY-ASSY,SIGNAL LAMP
27002-0068
$83.36
27003
HORN
27003-0161
$80.79
27034
RELAY
27034-0012
$36.91
39156
PAD,HEAT GUARD
39156-0389
$2.13
39156A
PAD,DIAG CONNECTOR
39156-2620
$4.98
39156B
PAD,HORN
39156-2781
$51.27
49018
DIODE
49018-0005
$47.13
49018A
DIODE
49018-0007
$47.32
53044
TRIM
53044-0018
$4.65
92015
NUT,FLANGED,6MM
92015-1367
$3.69
92015A
NUT,WELL,5MM
92015-1757
$7.29
92037
CLAMP,SPEED,L=80.5
92037-1903
$7.84
92071
GROMMET
92071-1187
$4.96
92072
BAND,202X3.6
92072-0782
$1.97
92072A
BAND,OS170-FT7(BLACK)
92072-1414
Unavailable
92072B
BAND,L=148
92072-3768
$3.92
92154
BOLT,FLANGED,6X16
92154-0551
$1.63
92154A
BOLT,SOCKET,6X10
92154-0774
$1.63
92154B
BOLT,FLANGED,6X14
92154-1864
$2.15
92154C
BOLT,FLANGED,6X12
92154-4349
$1.84
92161
DAMPER
92161-2290
$6.03
92171
CLAMP,CLIP,DIA=20
92171-0068
$2.80
92171A
CLAMP,BRAKE HOSE
92171-0316
$3.88
92171B
CLAMP,L=60
92171-0652
$2.61
92171C
CLAMP
92171-1279
$9.19
92171D
CLAMP,CABLE
92171-1283
$10.92
92172
SCREW,TAPPING,5X16
92172-0175
$1.78
92172A
SCREW,TAPPING,5X10
92172-0262
$1.34
92172B
SCREW,TAPPING,5X10
92172-0335
$2.15
92173
CLAMP
92173-0082
$6.22
92173A
CLAMP,12MM DIA.
92173-0736
$5.05
92173B
CLAMP
92173-0742
$9.17
92173C
CLAMP
92173-0791
$11.16
92173D
CLAMP
92173-0861
$3.02
92173E
CLAMP
92173-0982
$5.65
92173F
CLAMP
92173-1578
$8.05
92173G
CLAMP
92173-2194
$1.83
92173H
CLAMP
92173-2198
$1.48
92173I
CLAMP
92173-2199
$1.48
92173J
CLAMP
92173-2437
$2.32
130
BOLT-FLANGED,5X18
130BA0518
$1.46
130A
BOLT-FLANGED,6X12
130BA0612
$1.72
130B
BOLT-FLANGED,6X14
130BA0614
$1.20
130C
BOLT-FLANGED,6X16
130BA0616
$1.20
130D
BOLT-FLANGED,6X25
130BA0625
$1.20
132
BOLT-FLANGED-SMALL,6X12
132BA0612
$1.20
