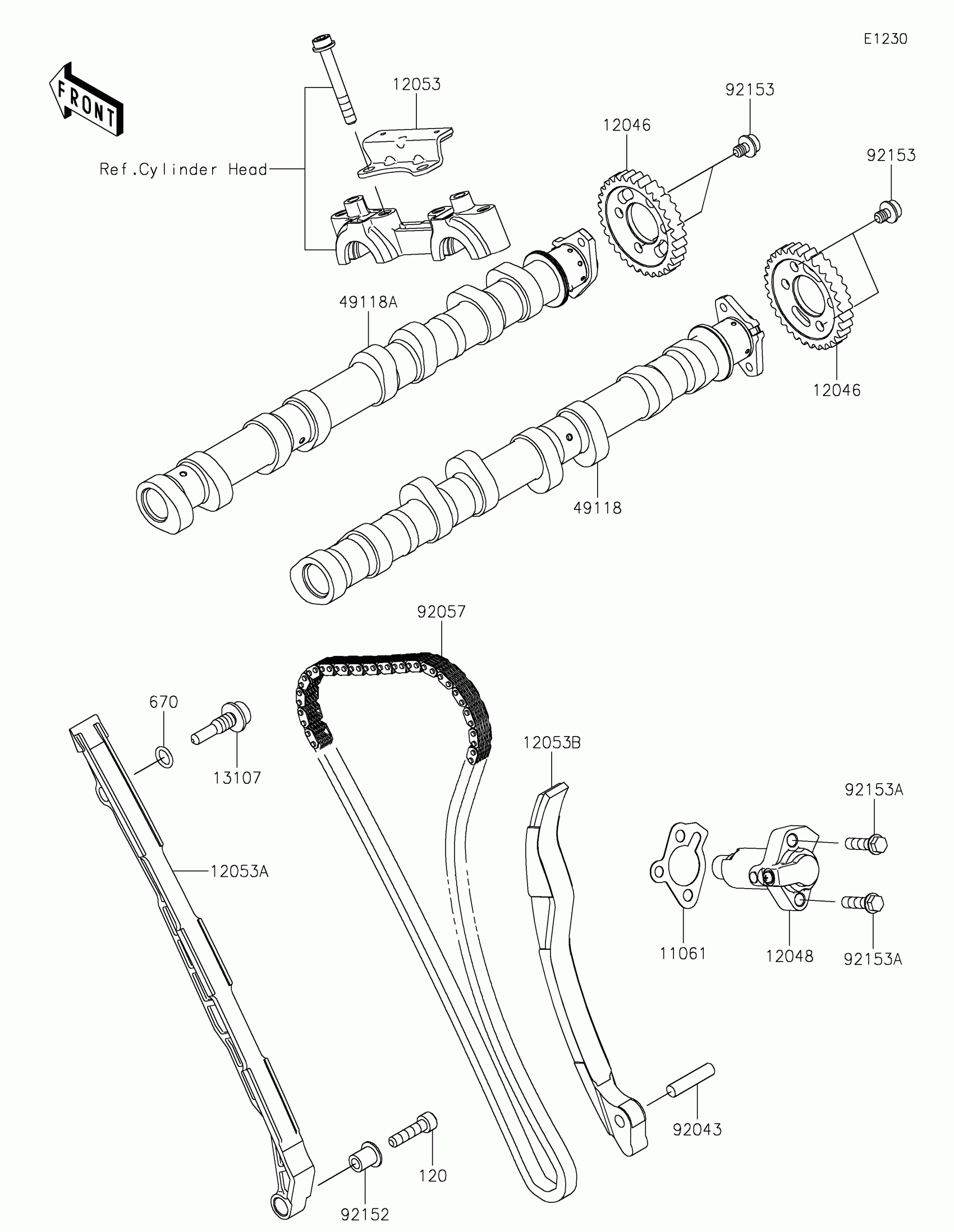

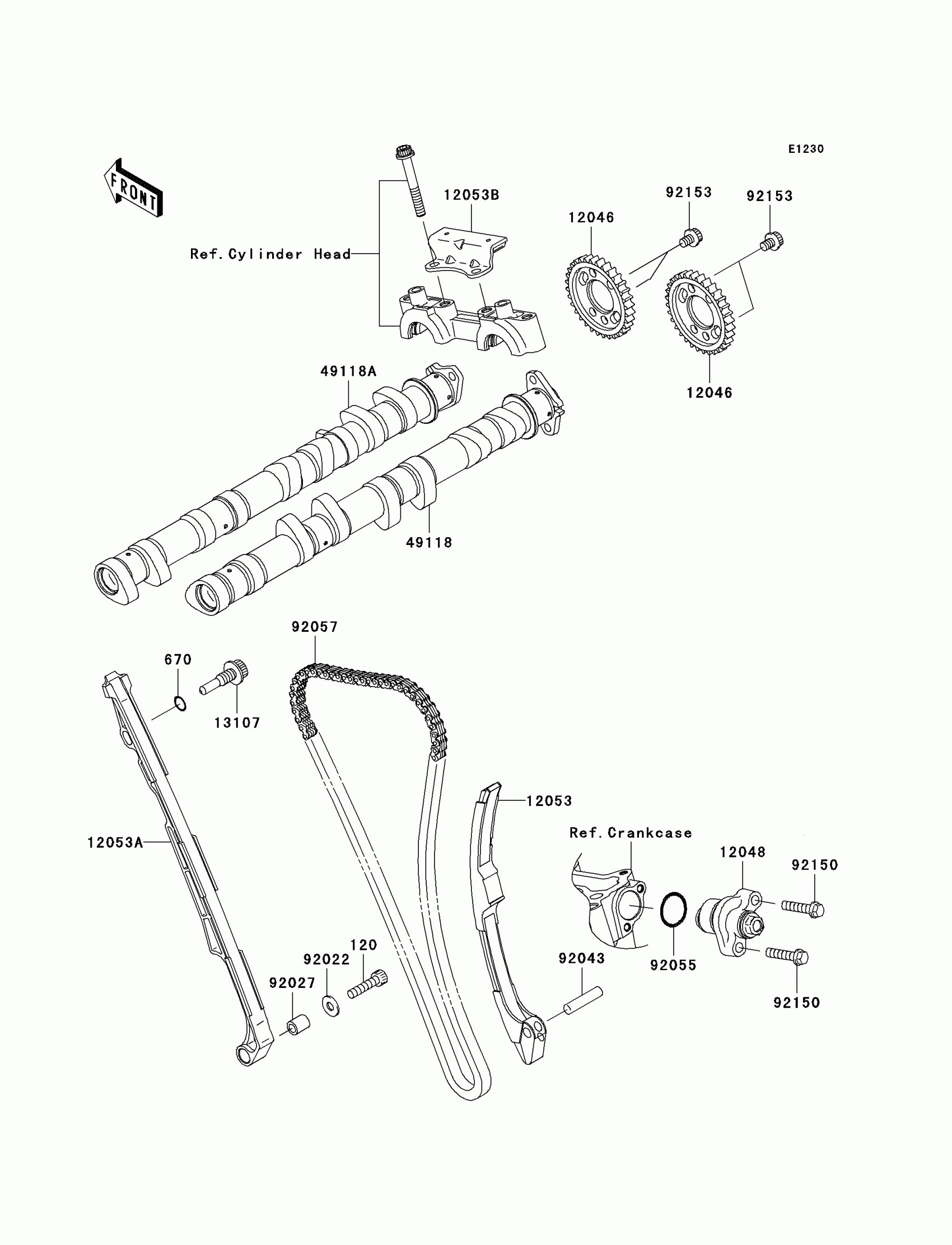

Kawasaki Ninja® ZX™-10R Camshaft(s)/Tensioner Diagram

Description

Price

120

BOLT-SOCKET,6X25

120P0625

$1.92

670

O RING,9MM

670D1509

$4.69

12046

SPROCKET,32T

12046-0034

$70.00

12048

TENSIONER-ASSY

12048-0012

Unavailable

12053

GUIDE-CHAIN,RR

12053-0039

Unavailable

12053A

GUIDE-CHAIN,FR

12053-0040

Unavailable

12053B

GUIDE-CHAIN,UPP

12053-0041

$45.48

13107

SHAFT,CHAIN GUIDE,FR

13107-1416

Unavailable

49118

CAMSHAFT-COMP,INTAKE

49118-0008

$674.66

49118A

CAMSHAFT-COMP,EXHAUST

49118-0023

$674.66

92022

WASHER,6.2X15X1.2

92022-2373

$0.43

92027

COLLAR,6.3X10X12

92027-1143

$17.10

92043

PIN,7X30.7

92043-0062

$5.25

92055

RING-O,20.8X1.9

92055-0053

$4.83

92057

CHAIN,98XRH2015-124M

92057-0085

$110.55

92150

BOLT,FLANGED-SMALL,6X25

92150-1779

Unavailable

92153

BOLT,FLANGED,6X8

92153-0455

$2.55
