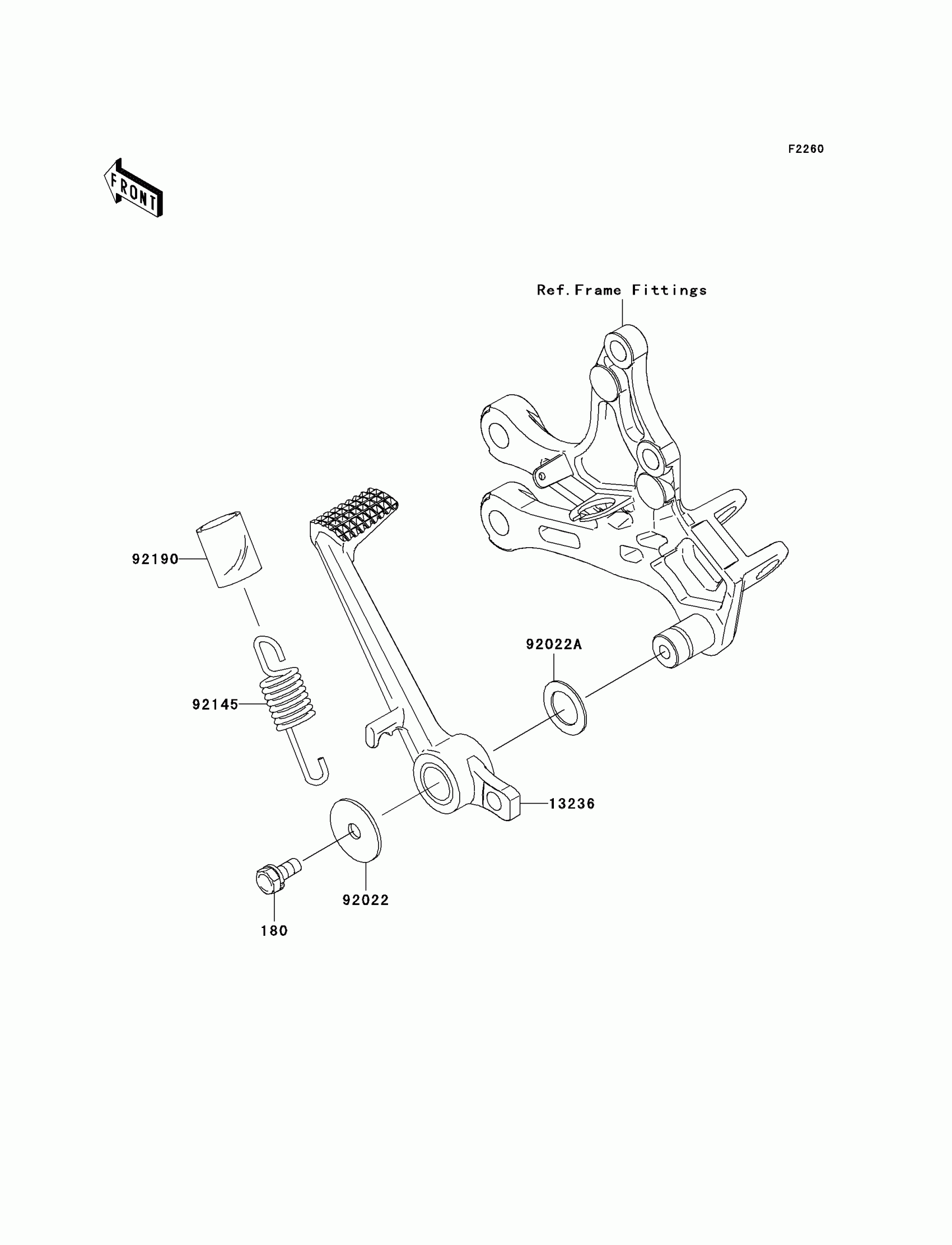

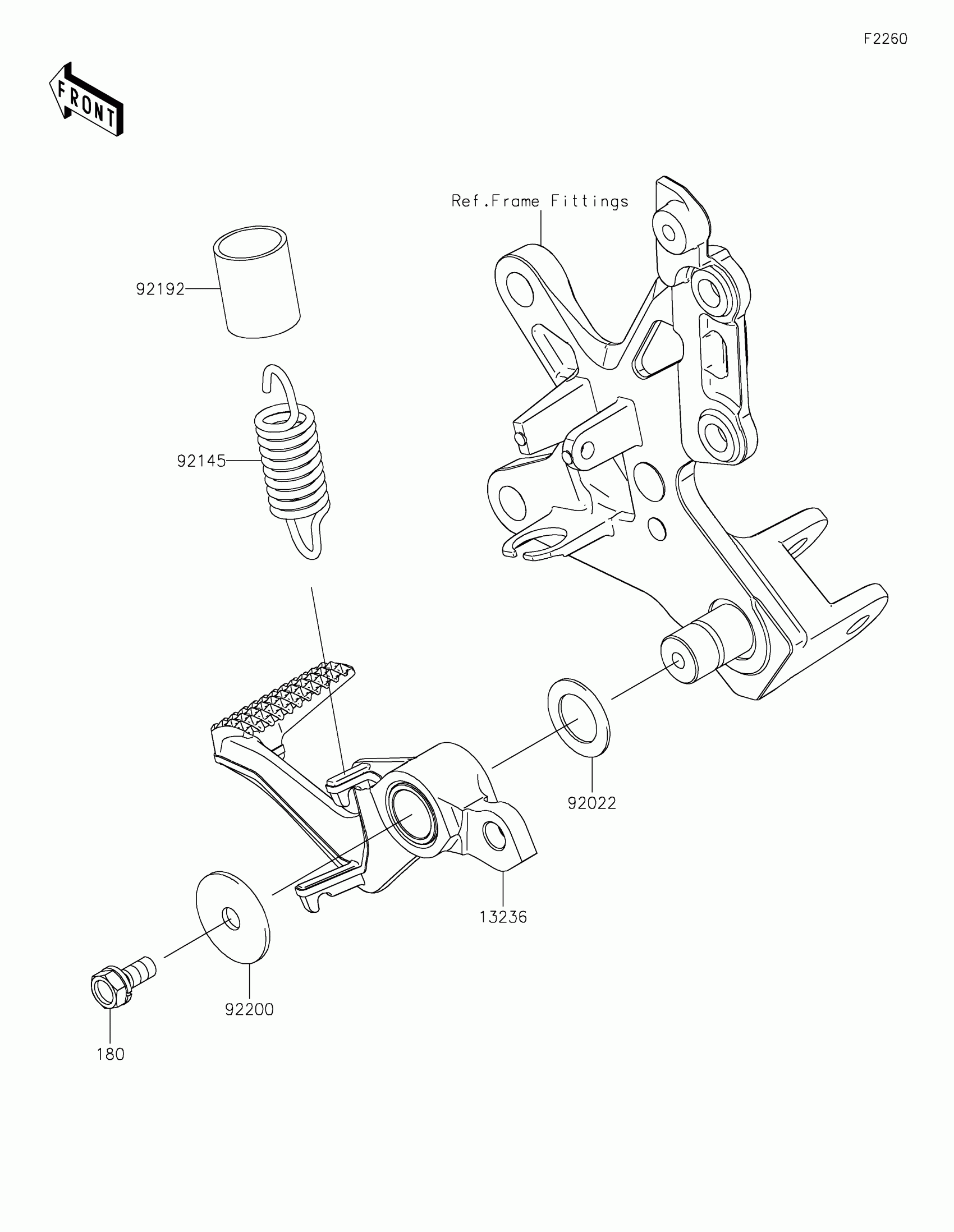

Kawasaki Ninja® ZX™-10R Brake Pedal/Torque Link Diagram

#

Description

Price

180

BOLT-UPSET-WS,6X14

180L0614

Unavailable

13236

LEVER-COMP,BRAKE PEDAL

13236-0029

$137.01

92022

WASHER,7X28X1.6

92022-1282

$3.57

92022A

WASHER,15.3X24X1

92022-326

$2.99

92145

SPRING,BRAKE PEDAL RETURN

92145-0200

Unavailable

92190

TUBE,16X19X30

92190-1185

$3.12
