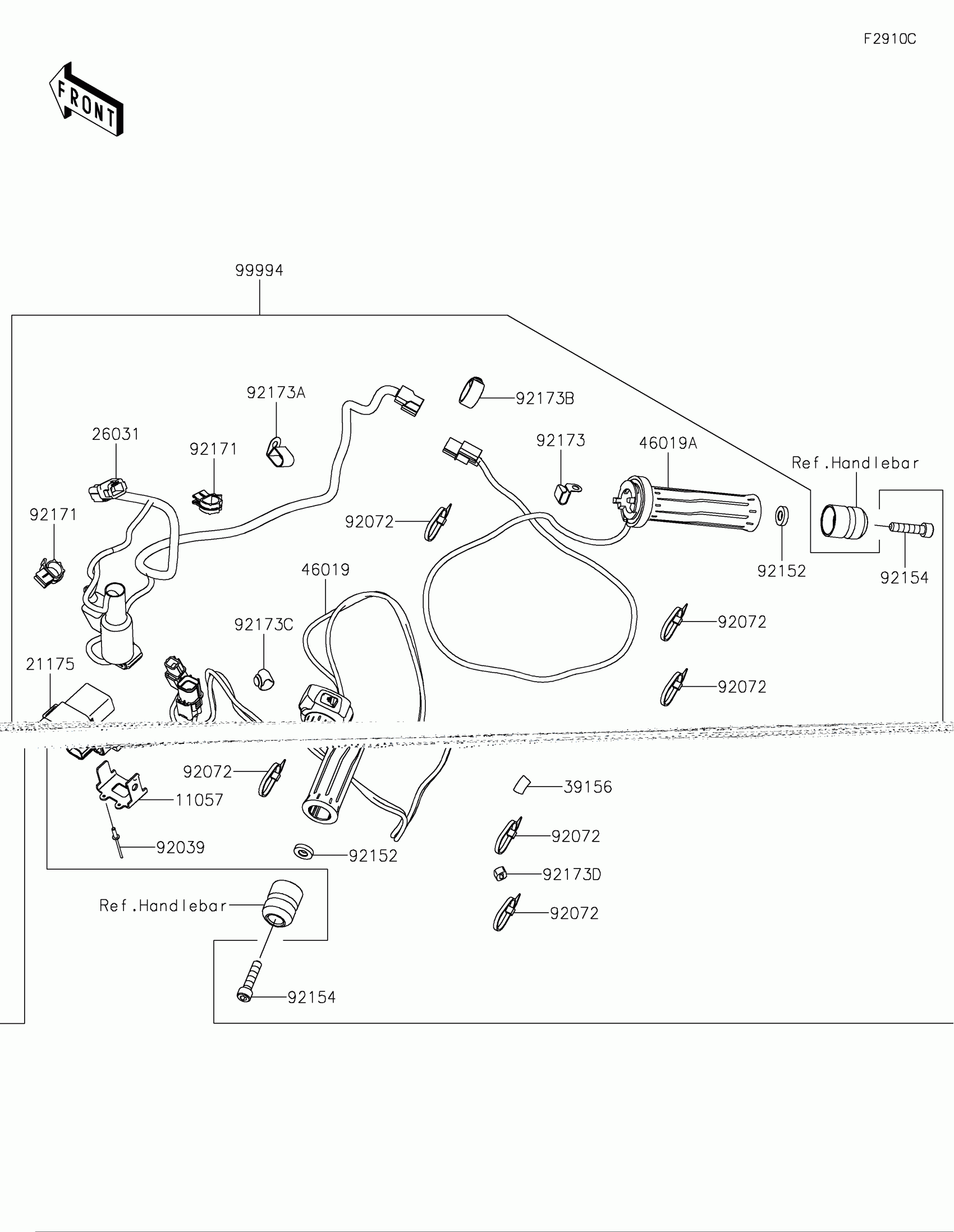

Kawasaki Ninja® ZX™-10R Accessory(Grip Heater) Diagram

Description

Price

11057

BRACKET

11057-4258

$5.66

21175

CONTROL UNIT-ELECTRONIC,GH

21175-1329

$127.41

26031

HARNESS

26031-2884

$114.15

39156

PAD,15X25X1

39156-2119

$1.59

46019

GRIP-ASSY,HEATER,LH

46019-0105

$150.28

46019A

GRIP-ASSY,HEATER,RH

46019-0106

$237.25

92039

RIVET

92039-1271

$0.69

92072

BAND,202X3.6

92072-0782

$1.68

92152

COLLAR

92152-2663

$5.08

92154

BOLT,SOCKET,8X35

92154-4053

$1.98

92171

CLAMP,EDGE CLIP

92171-1722

$7.90

92173

CLAMP

92173-0082

$5.42

92173A

CLAMP,68MM

92173-1009

$3.59

92173B

CLAMP

92173-2194

$1.56

92173C

CLAMP

92173-2199

$1.32

92173D

CLAMP

92173-2437

$1.93

99994

GRIP HEATER

99994-1486

$470.46
