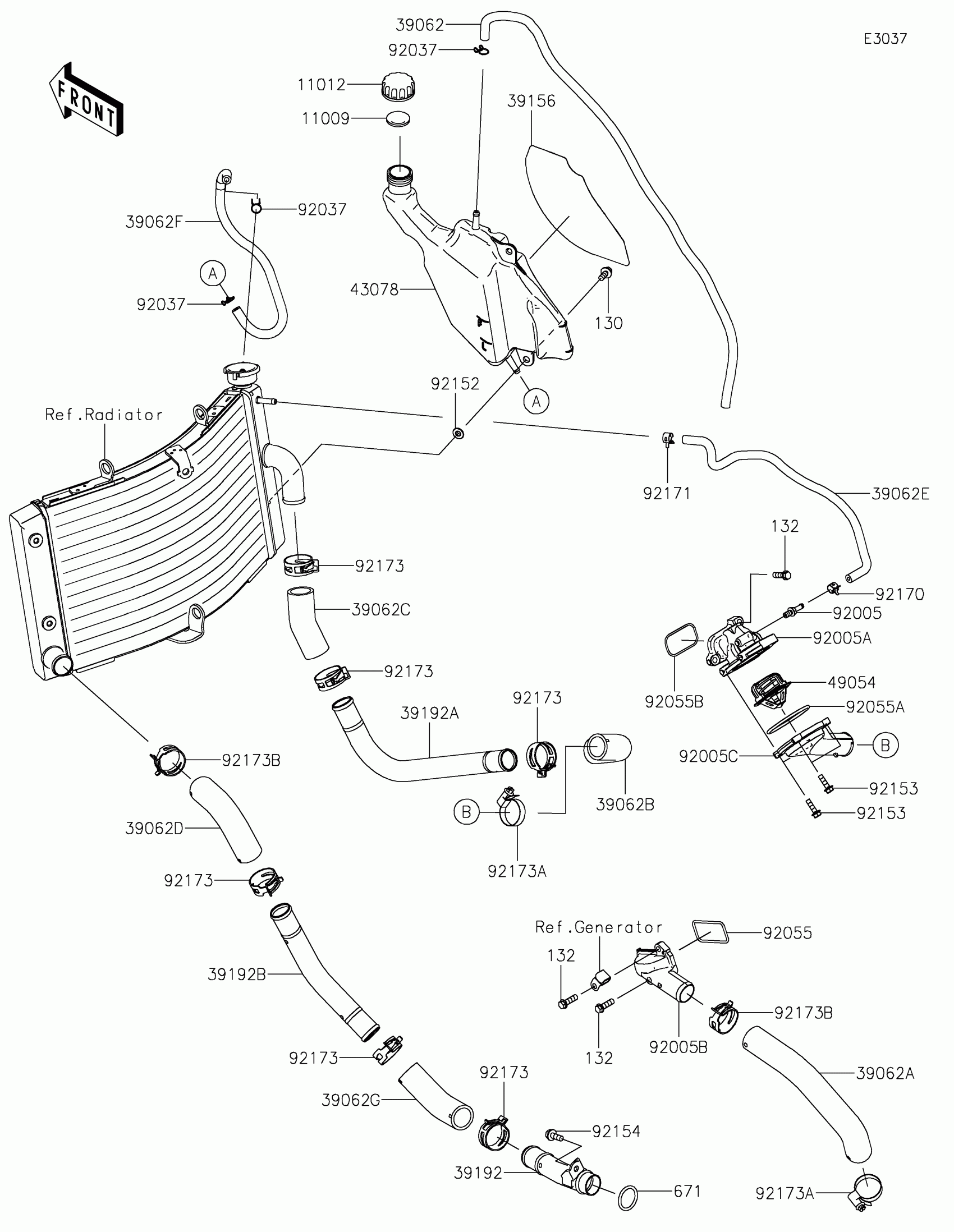

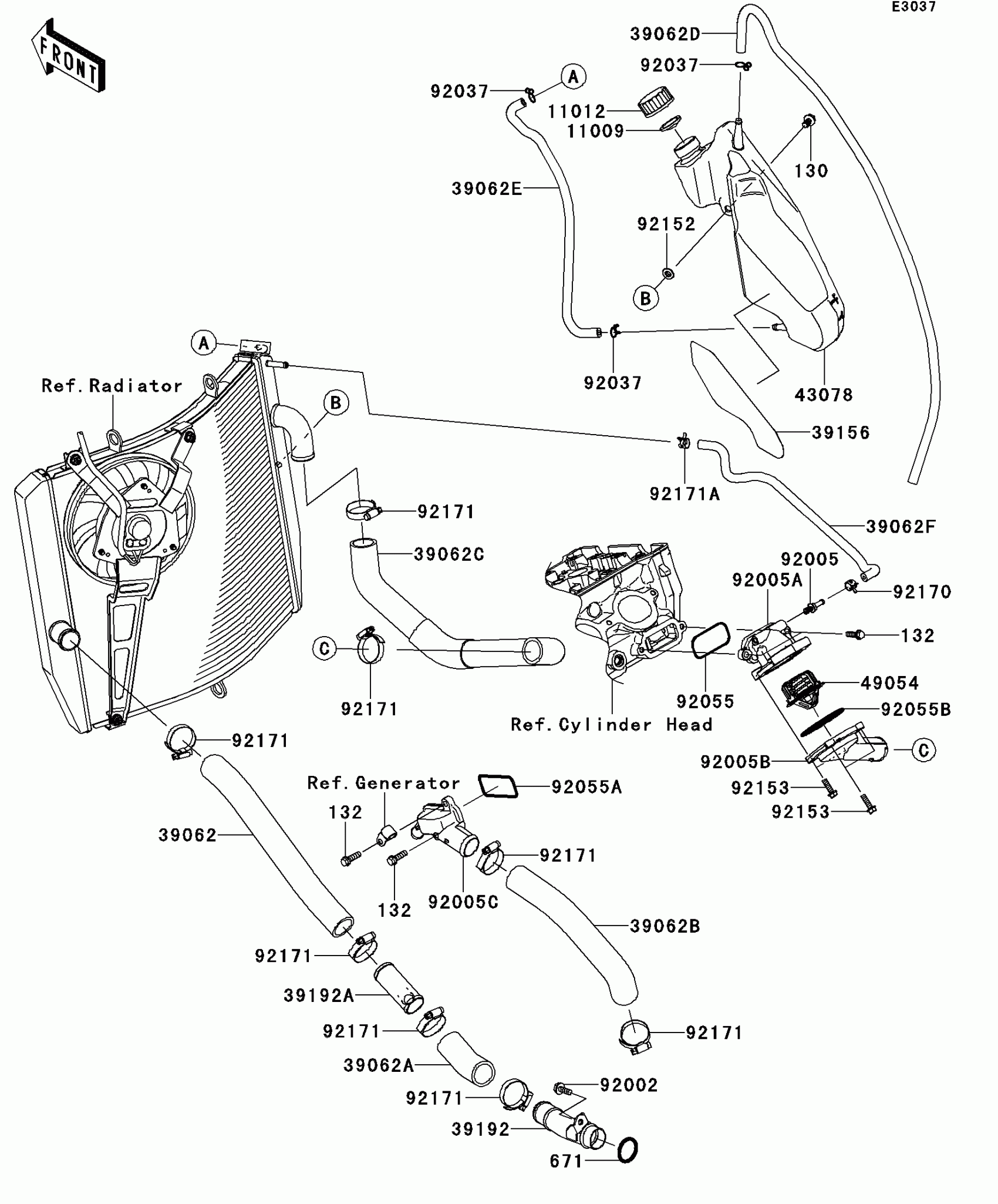

Kawasaki NINJA® ZX™-10R ABS Water Pipe Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.42

11012

CAP

11012-1084

$1.72

39062

HOSE-COOLING,RAD.-3WAY PIPE

39062-0326

$30.40

39062A

HOSE-COOLING,W.PUMP-3WAY PIPE

39062-0327

$11.88

39062B

HOSE-COOLING,W.PUMP-FITTING

39062-0328

$28.66

39062C

HOSE-COOLING,THERMO-CAP

39062-0329

Unavailable

39062D

HOSE-COOLING,OVER FLOW

39062-0332

$8.38

39062E

HOSE-COOLING,RETURN

39062-0333

$7.50

39062F

HOSE,THERMO CASE-RADIATOR

39062-0347

$9.25

39156

PAD

39156-0672

$5.29

39192

PIPE-WATER

39192-0134

$33.33

39192A

PIPE-WATER,3WAY

39192-0558

$8.66

43078

RESERVOIR

43078-0068

$51.16

49054

THERMOSTAT

49054-0004

$59.01

92002

BOLT,6X16

92002-1571

$4.69

92005

FITTING

92005-0056

$10.21

92005A

FITTING,THERMO CASE

92005-0122

$47.28

92005B

FITTING,THERMO CAP

92005-0123

$29.34

92005C

FITTING

92005-0124

$37.95

92037

CLAMP,TUBE

92037-147

$7.34

92055

RING-O,YP 27.6 57.6 1.9

92055-0021

$3.73

92055A

RING-O

92055-0209

$6.00

92055B

RING-O,53.5X2.6

92055-112

$6.63

92152

COLLAR

92152-1414

$7.63

92153

BOLT,FLANGED,5X18

92153-1588

$1.34

92170

CLAMP

92170-1493

$5.00

92171

CLAMP

92171-0179

$8.20

92171A

CLAMP

92171-0719

$2.15

130

BOLT-FLANGED,6X14

130BA0614

$1.20

132

BOLT-FLANGED-SMALL,6X20

132BC0620

$1.34

671

O RING,25MM

671B2525

$5.00
