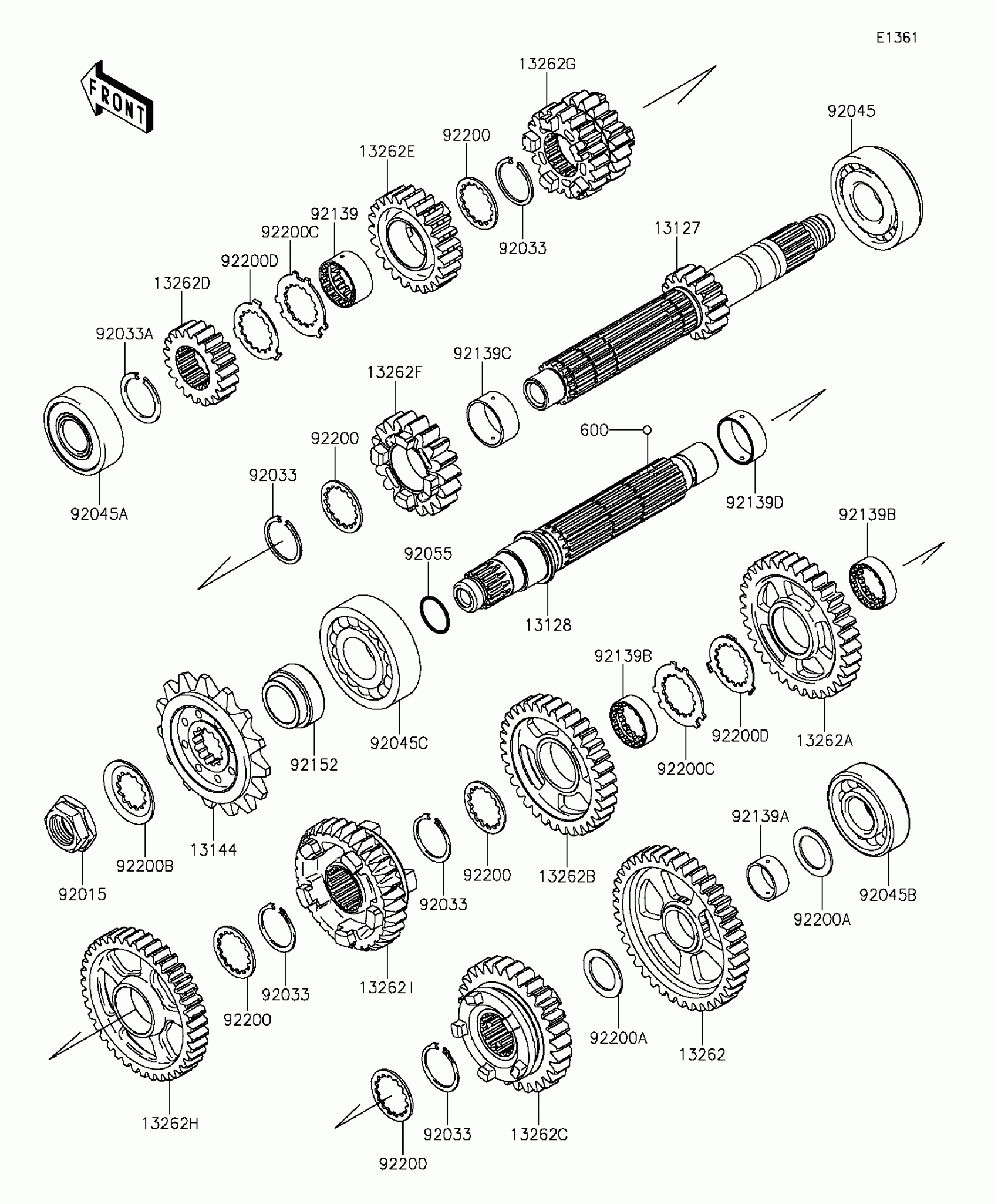

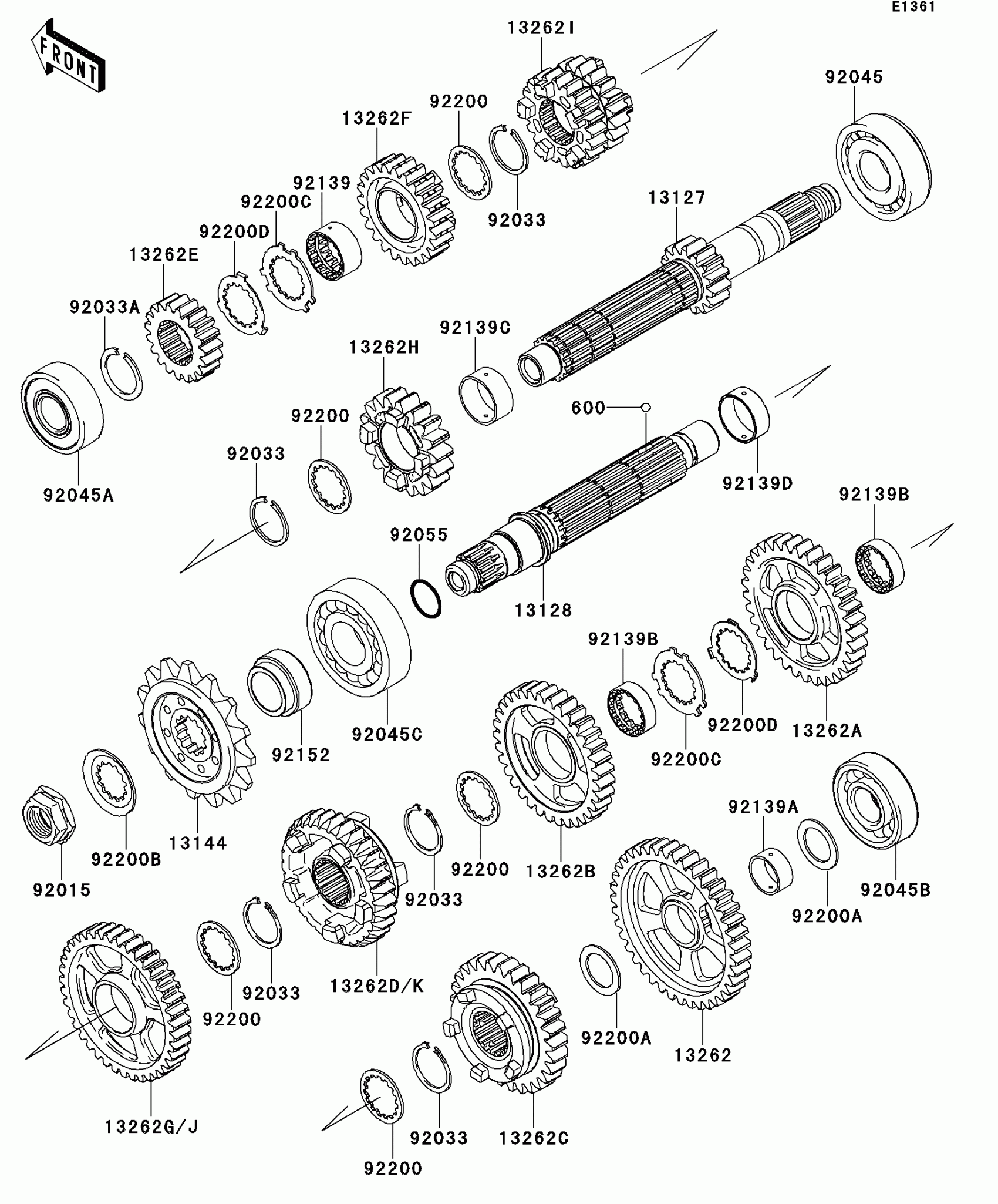

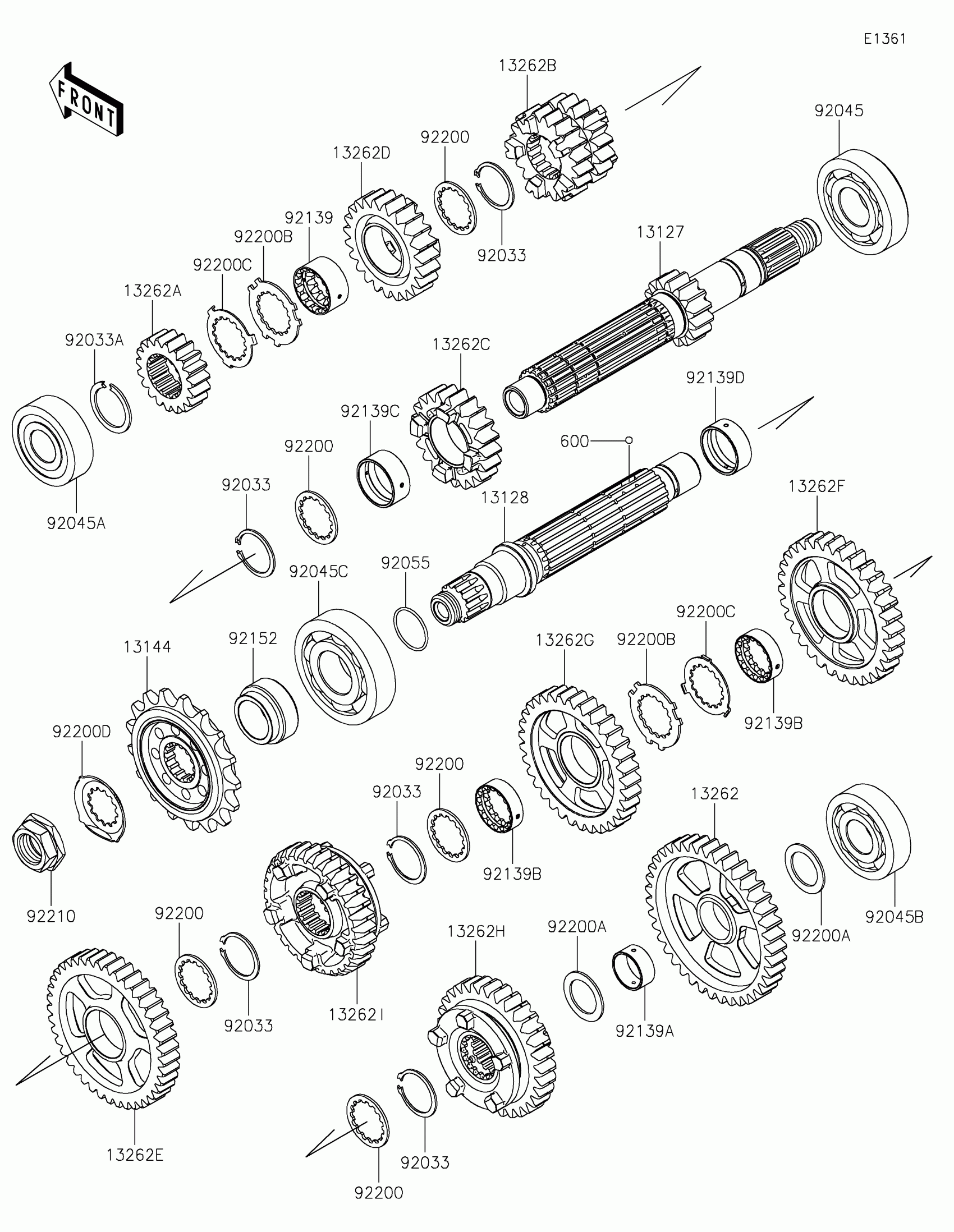

Kawasaki NINJA® ZX™-10R ABS Transmission Diagram

#

Description
Price

13127

SHAFT-TRANSMISSION INPUT

13127-0636

$323.81

13128

SHAFT-TRANSMISSION OUTPUT

13128-0670

$239.21

13144

SPROCKET-OUTPUT,17T,#525

13144-0004

$52.53

13262

GEAR,OUTPUT LOW,39T

13262-0615

Unavailable

13262A

GEAR,OUTPUT 3RD,33T

13262-0803

Unavailable

13262B

GEAR,OUTPUT 4TH,33T

13262-0804

Unavailable

13262C

GEAR,OUTPUT 5TH,26T

13262-0805

Unavailable

13262E

GEAR,INPUT 2ND,19T

13262-0856

$65.97

13262F

GEAR,INPUT TOP,23T

13262-0869

$127.52

13262H

GEAR,INPUT 5TH,18T

13262-0881

$121.24

13262I

GEAR,INPUT 3RD&4TH,19T&21T

13262-0891

$187.50

13262J

GEAR,OUTPUT 2ND,39T

13262-0916

$191.56

13262K

GEAR,OUTPUT TOP,31T

13262-0917

Unavailable

92015

NUT,20MM

92015-1963

$11.31

92033

RING-SNAP,25.9X30.6X1.2

92033-1037

$3.54

92033A

RING-SNAP,T=1.5

92033-1249

$3.78

92045

BEARING-BALL,830045-5SH2

92045-0047

$36.96

92045A

BEARING-BALL,DG2152RDDSH2

92045-0048

$42.78

92045B

BEARING-BALL,63/22LU

92045-0156

$33.46

92045C

BEARING-BALL,63/28

92045-1189

$48.89

92055

RING-O,21.5X1.5

92055-1293

$3.81

92139

BUSHING,GEAR,6TH IN

92139-0036

$24.76

92139A

BUSHING,GEAR,LOW OUT

92139-0038

$12.63

92139B

BUSHING,25.0X31.0X9.4

92139-0309

$19.97

92139C

BUSHING,28.1X31.0X13.5

92139-0324

$19.97

92139D

BUSHING,28.1X31.0X11.5

92139-0734

$10.39

92152

COLLAR

92152-0885

$29.90

92200

WASHER,28.3X34.0X1.6

92200-0050

$3.71

92200A

WASHER,22.1X32.0X1.4

92200-0138

$3.29

92200B

WASHER

92200-1065

$4.97

92200C

WASHER,25.8X40.5X1.5

92200-1522

$4.29

92200D

WASHER,25.2X37.0X1.0

92200-1523

$4.78

600

BALL-STEEL,5/32

600A0500

$0.68
