Description

Price

11056

BRACKET

11056-0269

$6.88

11065

CAP

11065-0282

$7.28

13272

PLATE

13272-0873

$17.24

13272A

PLATE

13272-1082

$7.50

16014

SCREW-PILOT AIR

16014-0002

$25.16

16073

INSULATOR

16073-0129

$6.00

16163

THROTTLE-ASSY,TTK47

16163-0722

$1,896.35

21176

SENSOR,PRESSURE

21176-0111

$222.28

26031

HARNESS,THROTTLE,SUB

26031-0960

$104.31

49033

NOZZLE-INJECTION

49033-0027

$132.97

49056

PIPE-INJECTION

49056-0024

$103.74

49056A

PIPE-INJECTION

49056-0556

$229.64

49116

VALVE-ASSY,ISC

49116-0704

$184.80

51044

TUBE-ASSY,FUEL

51044-0120

$76.19

59071

JOINT,3WAY,T

59071-3752

$10.19

92005

FITTING

92005-0716

$44.98

92005A

FITTING

92005-0717

$22.71

92055

RING-O

92055-0064

$7.65

92055A

RING-O,INJECTION NOZZLE

92055-0124

$2.97

92055B

RING-O

92055-0206

$4.69

92055C

RING-O

92055-0711

$2.34

92055D

RING-O

92055-0712

$2.34

92144

SPRING

92144-1451

$9.58

92145

SPRING,THROTTLE SYNCRO

92145-0055

$16.26

92161

DAMPER

92161-0673

$5.54

92172

SCREW,PIPE INJECTION

92172-0064

$2.80

92172A

SCREW

92172-0499

$5.10

92172B

SCREW,TORX

92172-0720

$5.10

92191

TUBE,3X7X25

92191-0020

$2.39

92191A

TUBE,3X7X100

92191-0023

$4.14

92192

TUBE,3X7X95

92192-0018

$4.22

92192A

TUBE,3X7X55

92192-0106

$8.03

92192B

TUBE

92192-0981

$22.29

92192C

TUBE

92192-0982

$14.44

92192D

TUBE

92192-0983

$25.96

92192E

TUBE

92192-0984

$25.96

223

SCREW-PAN-WS-CROS,5X10

223AA0510

$0.43

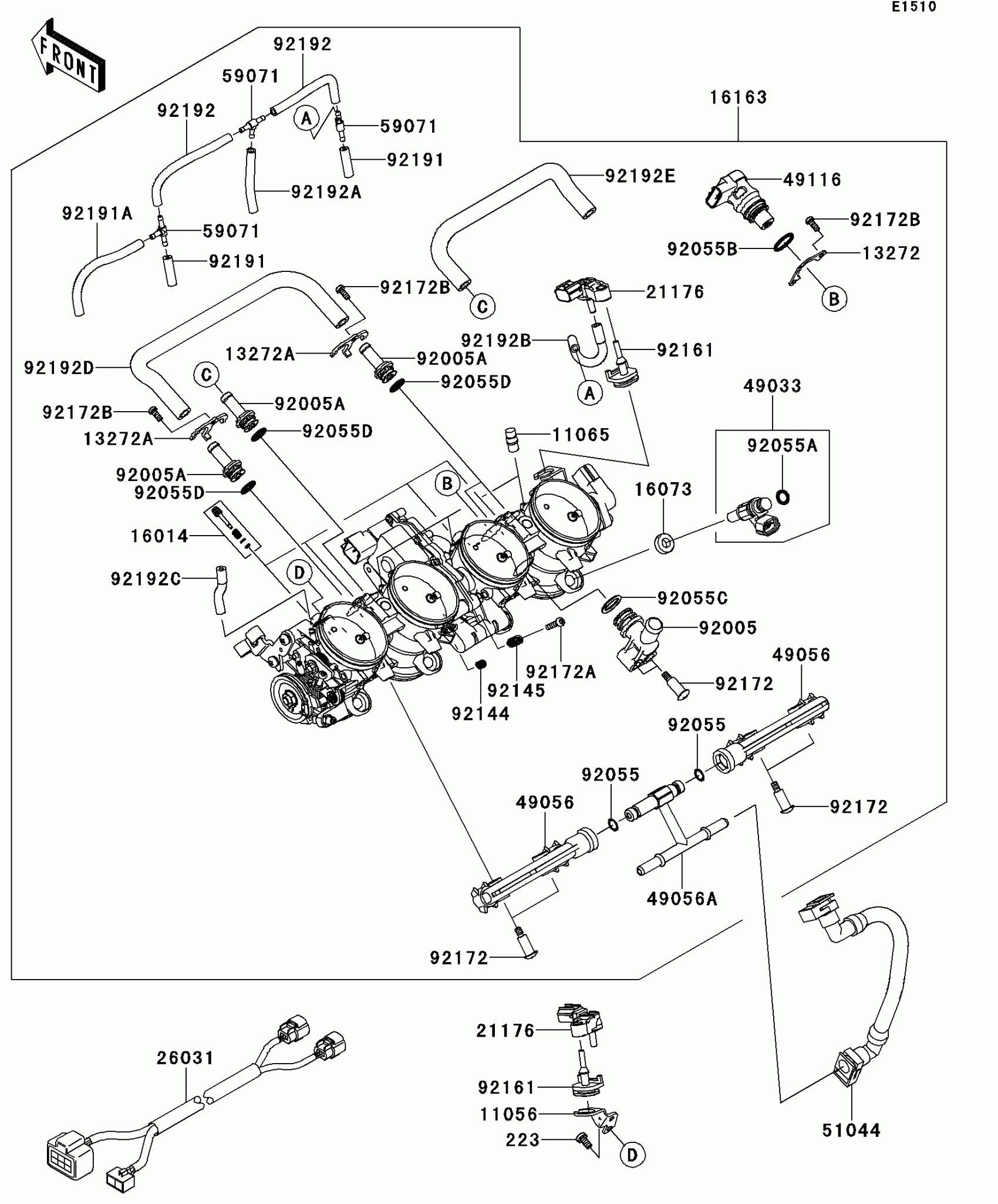

Kawasaki NINJA® ZX™-10R ABS Throttle Diagram

BRACKET

CAP

PLATE

PLATE

SCREW-PILOT AIR

INSULATOR

THROTTLE-ASSY,TTK47

SENSOR,PRESSURE

HARNESS,THROTTLE,SUB

NOZZLE-INJECTION

PIPE-INJECTION

PIPE-INJECTION

VALVE-ASSY,ISC

TUBE-ASSY,FUEL

JOINT,3WAY,T

FITTING

FITTING

RING-O

RING-O,INJECTION NOZZLE

RING-O

RING-O

RING-O

SPRING

SPRING,THROTTLE SYNCRO

DAMPER

SCREW,PIPE INJECTION

SCREW

SCREW,TORX

TUBE,3X7X25

TUBE,3X7X100

TUBE,3X7X95

TUBE,3X7X55

TUBE

TUBE

TUBE

TUBE

SCREW-PAN-WS-CROS,5X10
