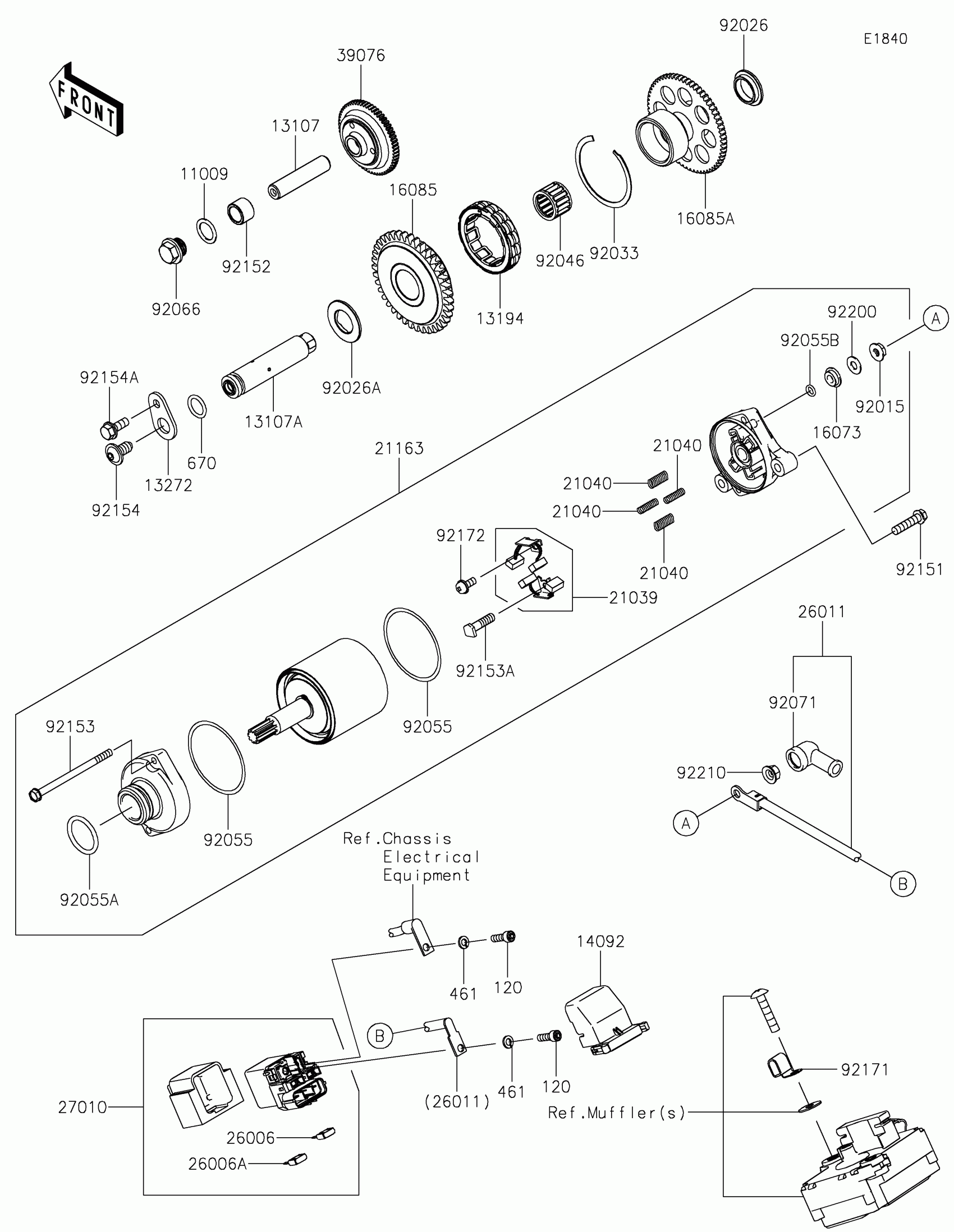

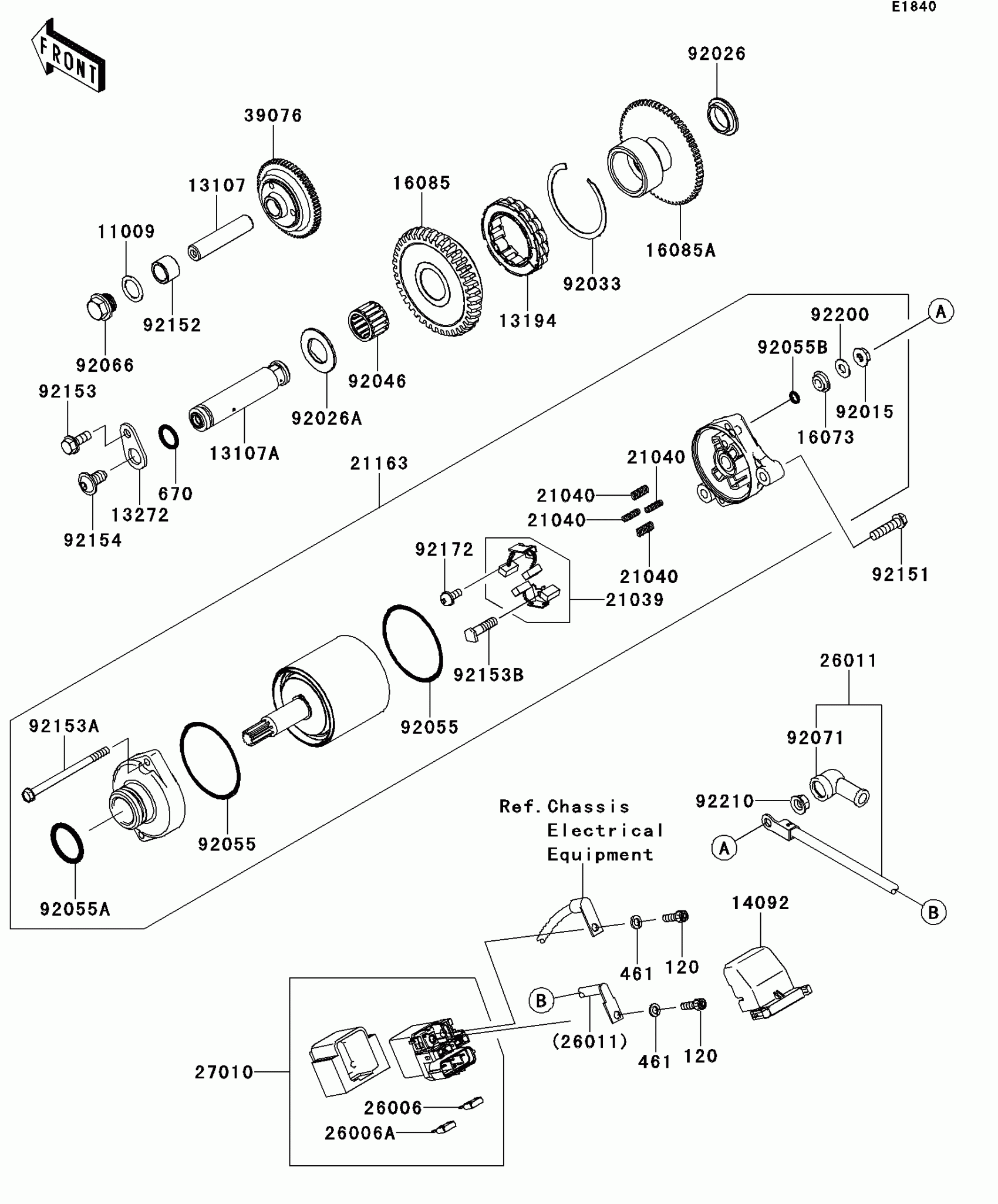

Kawasaki NINJA® ZX™-10R ABS Starter Motor Diagram

#

Description
Price

11009

GASKET,14.3X20X1

11009-1238

$3.89

13107

SHAFT

13107-0231

$28.96

13107A

SHAFT,ONEWAY CLUTCH

13107-0233

$71.78

13194

CLUTCH-ONEWAY

13194-0553

$111.50

13272

PLATE

13272-0888

$5.24

14092

COVER

14092-0109

$9.50

16073

INSULATOR

16073-0053

$11.93

16085

GEAR,39T

16085-0142

$132.19

16085A

GEAR,62T

16085-0143

$143.63

21039

BRUSH,CARBON

21039-0004

$117.72

21040

SPRING-BRUSH

21040-0003

$9.79

21163

STARTER-ELECTRIC

21163-0064

$605.68

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26011

WIRE-LEAD

26011-0308

$39.84

27010

SWITCH

27010-0129

Unavailable

39076

LIMITER

39076-0553

Unavailable

92015

NUT,STARTER MOTOR

92015-1476

$4.31

92026

SPACER,RH

92026-0157

$11.99

92026A

SPACER,LH

92026-0158

$29.61

92033

RING-SNAP

92033-3731

$6.16

92046

BEARING-NEEDLE,FMJ-182417

92046-0040

$14.05

92055

RING-O

92055-0136

$7.75

92055A

RING-O

92055-1276

$9.91

92055B

RING-O,4.5X2.0

92055-1370

$4.69

92066

PLUG,14X8

92066-1273

$8.03

92071

GROMMET

92071-0024

$10.21

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

$2.80

92152

COLLAR,12.2X17X12

92152-0870

$23.23

92153

BOLT,FLANGED,6X16

92153-1551

$2.15

92153A

BOLT

92153-1850

$11.93

92153B

BOLT

92153-1866

$4.65

92154

BOLT,SOCKET,8X16

92154-0397

$2.67

92172

SCREW

92172-0334

$4.65

92200

WASHER

92200-0386

$4.65

92210

NUT,6MM

92210-0188

$2.15

120

BOLT-SOCKET,5X10

120CB0510

$1.64

461

WASHER-SPRING,5MM

461DB0500

$1.50

670

O RING,14MM

670D2014

$5.52
