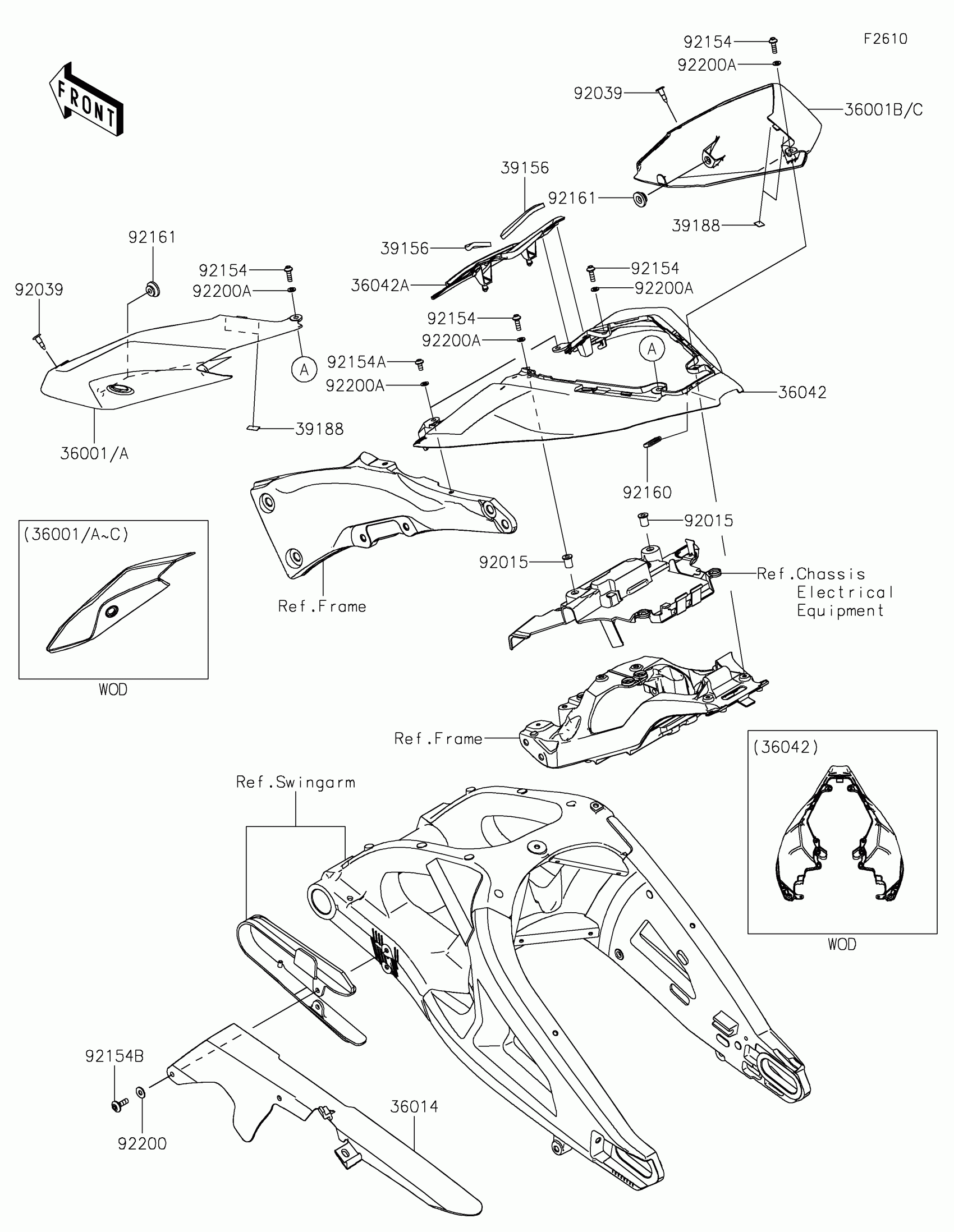

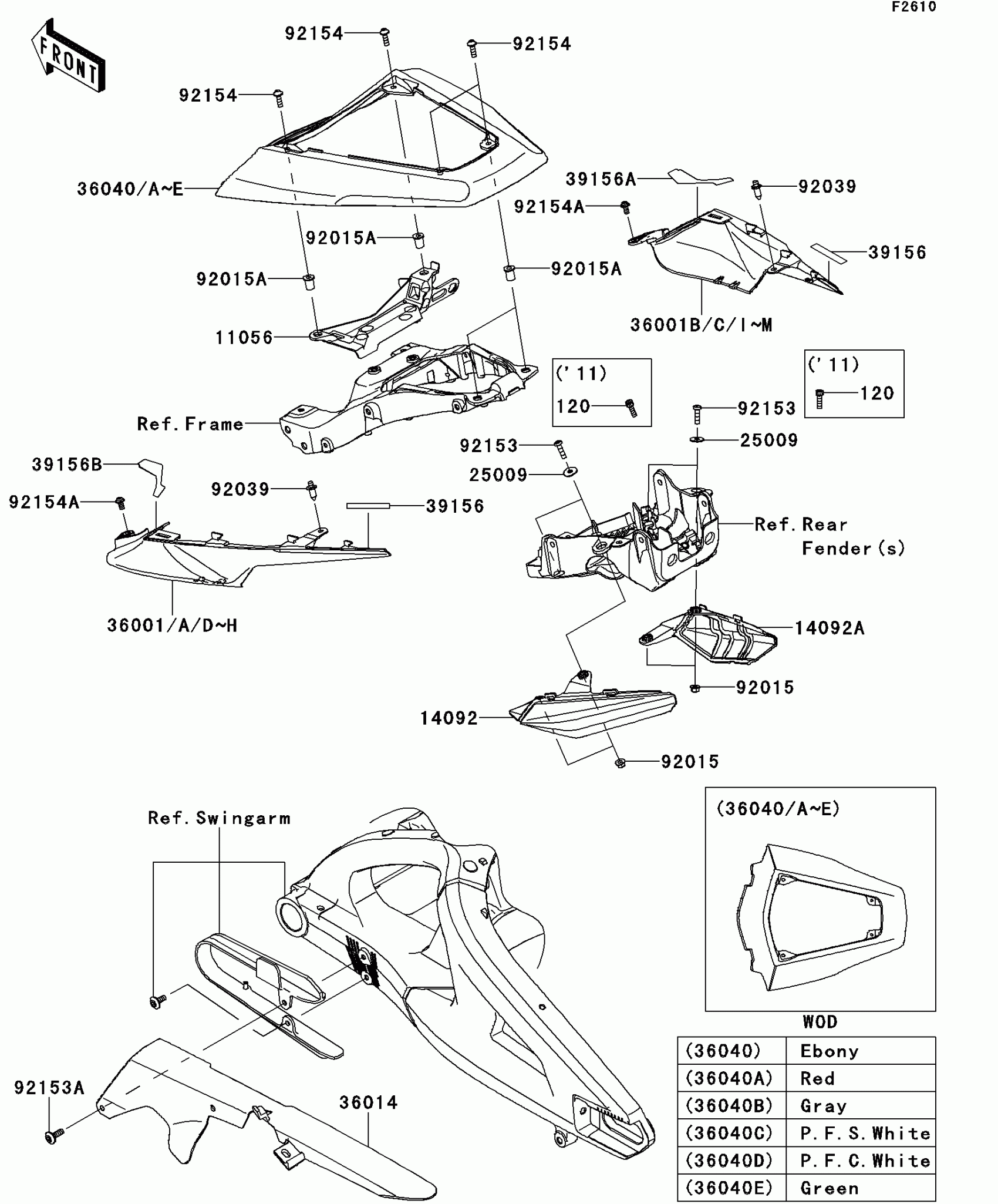

Kawasaki NINJA® ZX™-10R ABS Side Covers/Chain Cover Diagram

Description

Price

11056

BRACKET

11056-0601

$22.28

14092

COVER,RR SIGNAL,LH

14092-0784

$15.47

14092A

COVER,RR SIGNAL,RH

14092-0785

$15.47

25009

WASHER,5.2X16X1.2

25009-004

$3.65

36001G

COVER-SIDE,TAIL,LH,F.EBONY

36001-0580-45L

$106.00

36001L

COVER-SIDE,TAIL,RH,F.EBONY

36001-0581-45L

$106.00

36014

CASE-CHAIN

36014-0062

$26.09

36040D

COVER-TAIL,P.F.C.WHITE

36040-0124-46K

$210.08

36040E

COVER-TAIL,L.GREEN

36040-0124-777

$210.06

39156

PAD,10X50X0.2

39156-0712

$1.18

39156A

PAD,SIDE COVER,RH

39156-0743

$3.32

39156B

PAD,SIDE COVER,LH

39156-0744

$3.32

92015

NUT,LOCK,FLANGED,5MM

92015-1752

$4.31

92015A

NUT,WELL,5MM

92015-1757

$7.29

92039

RIVET

92039-0068

$2.97

92153

BOLT,SOCKET,5X18

92153-0370

$1.94

92153A

BOLT,SOCKET,6X14

92153-0422

$2.41

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92154A

BOLT,SOCKET,5X10

92154-0211

$2.12
