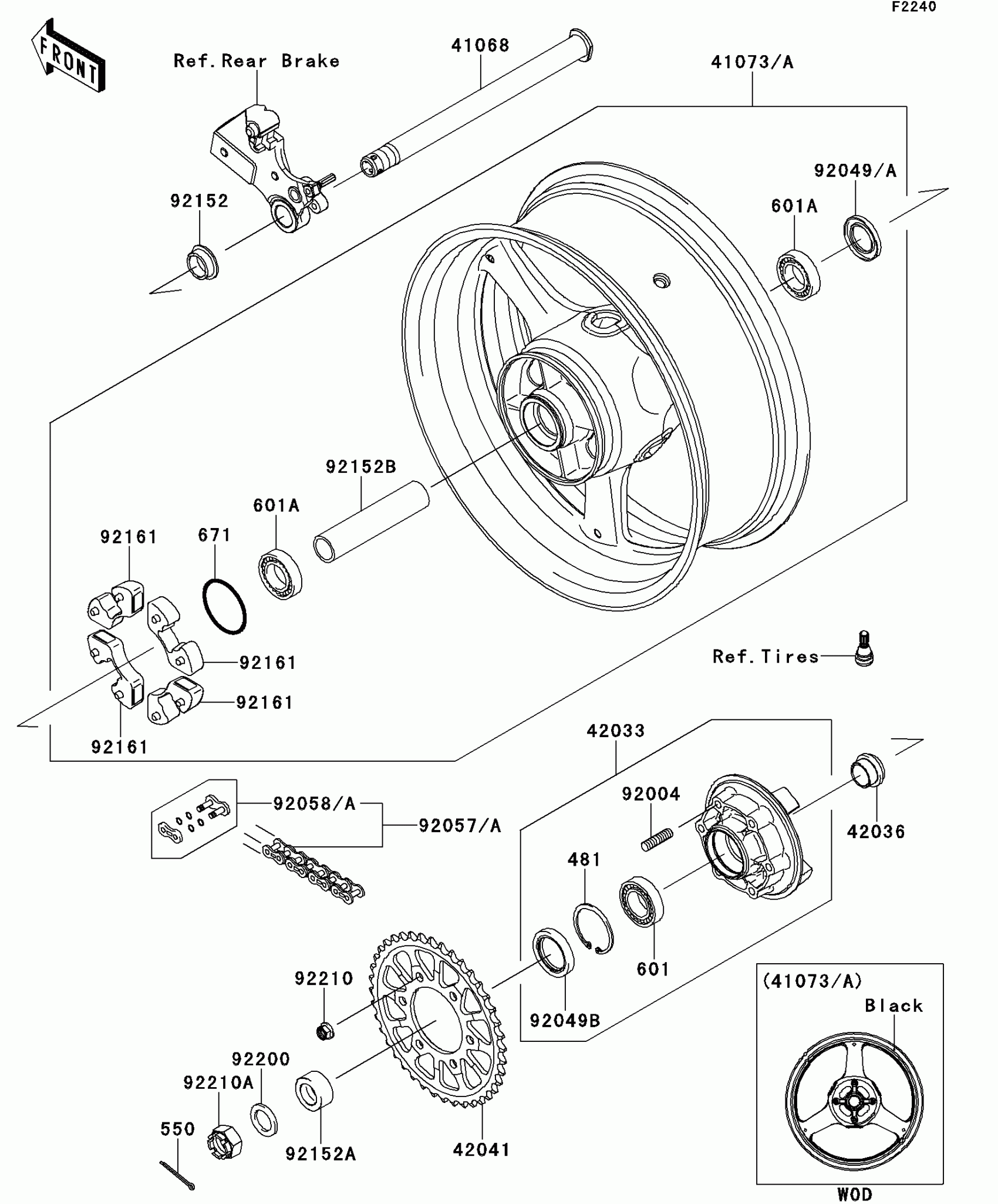

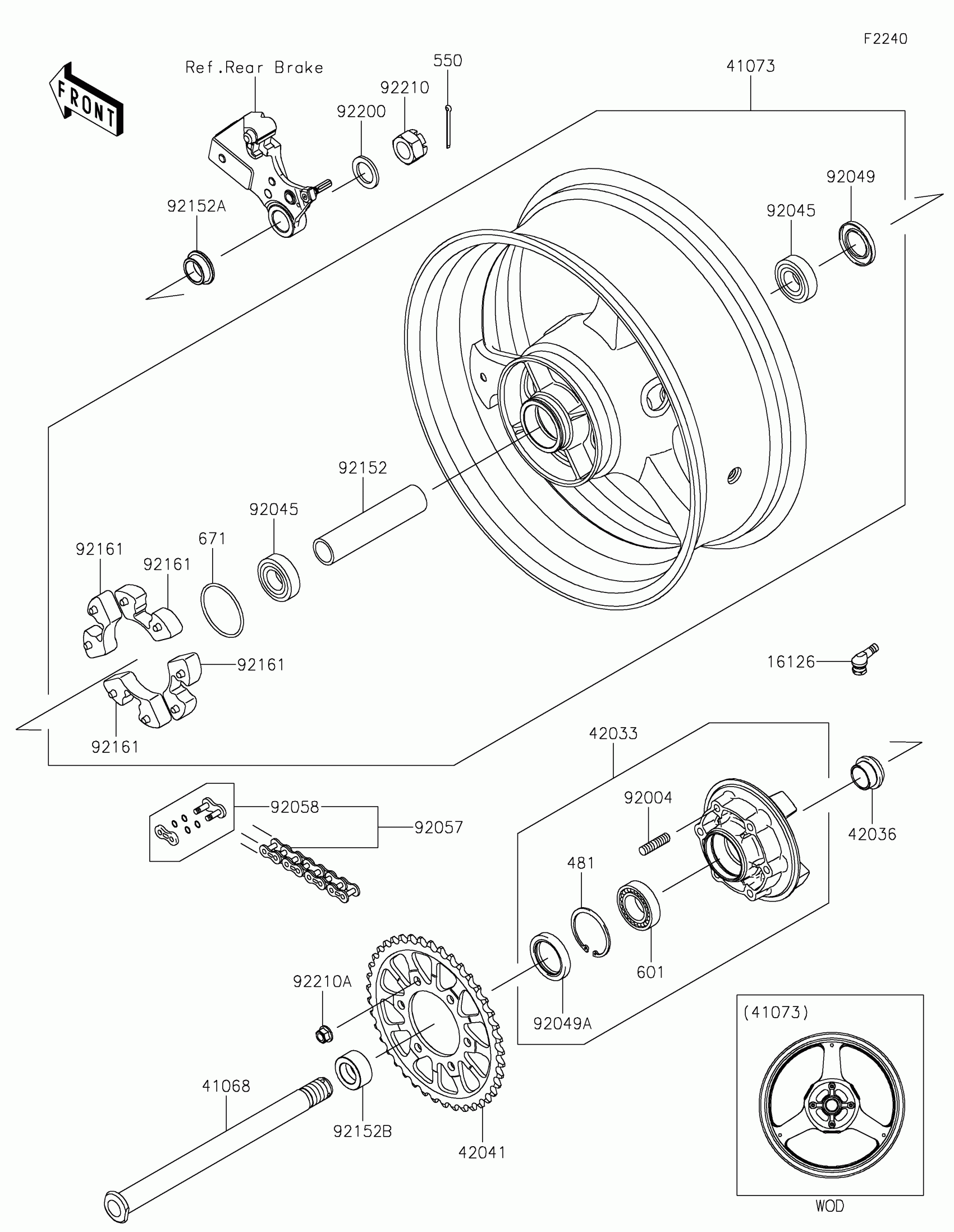

Kawasaki NINJA® ZX™-10R ABS Rear Wheel/Chain Diagram

Description

Price

16126

VALVE

16126-0735

$24.10

41068

AXLE,RR,24X326

41068-0613

$90.89

41073

WHEEL-ASSY,RR,G.BLACK

41073-0758-18F

$995.51

42033

COUPLING-ASSY,RR HUB

42033-0038

$239.47

42036

SLEEVE,RR HUB,L=22

42036-1279

$29.08

42041

SPROCKET-HUB,41T

42041-0095

$82.99

92004

STUD,10X19

92004-0028

$8.92

92045

BEARING-BALL,25X52X15

92045-0804

$20.09

92049

SEAL-OIL,31X52X5

92049-0722

$19.92

92049A

SEAL-OIL,PJN 40 55 8

92049-1376

$17.95

92057

CHAIN,DRIVE,RK525KZX,116L

92057-0818

$267.80

92058

JOINT-CHAIN

92058-0071

$24.50

92152

COLLAR

92152-0868

$34.87

92152A

COLLAR,RR AXLE,RH

92152-2641

$24.22

92152B

COLLAR,RR AXLE,LH

92152-2808

$22.55

92161

DAMPER,SHOCK,RR HUB

92161-0342

$26.13

92200

WASHER,25.5X38X3.2

92200-0278

$2.61

92210

NUT,CASTLE,24MM

92210-0280

$13.60

92210A

NUT,LOCK,FLANGED,10MM

92210-1139

$4.18

481

CIRCLIP

481J5500

$8.84

550

PIN-COTTER,4.0X45

550AA4045

$1.20

601

BEARING-BALL,#6006G

601B6006G

$29.13

671

O RING,60MM

671B2560

$6.91
