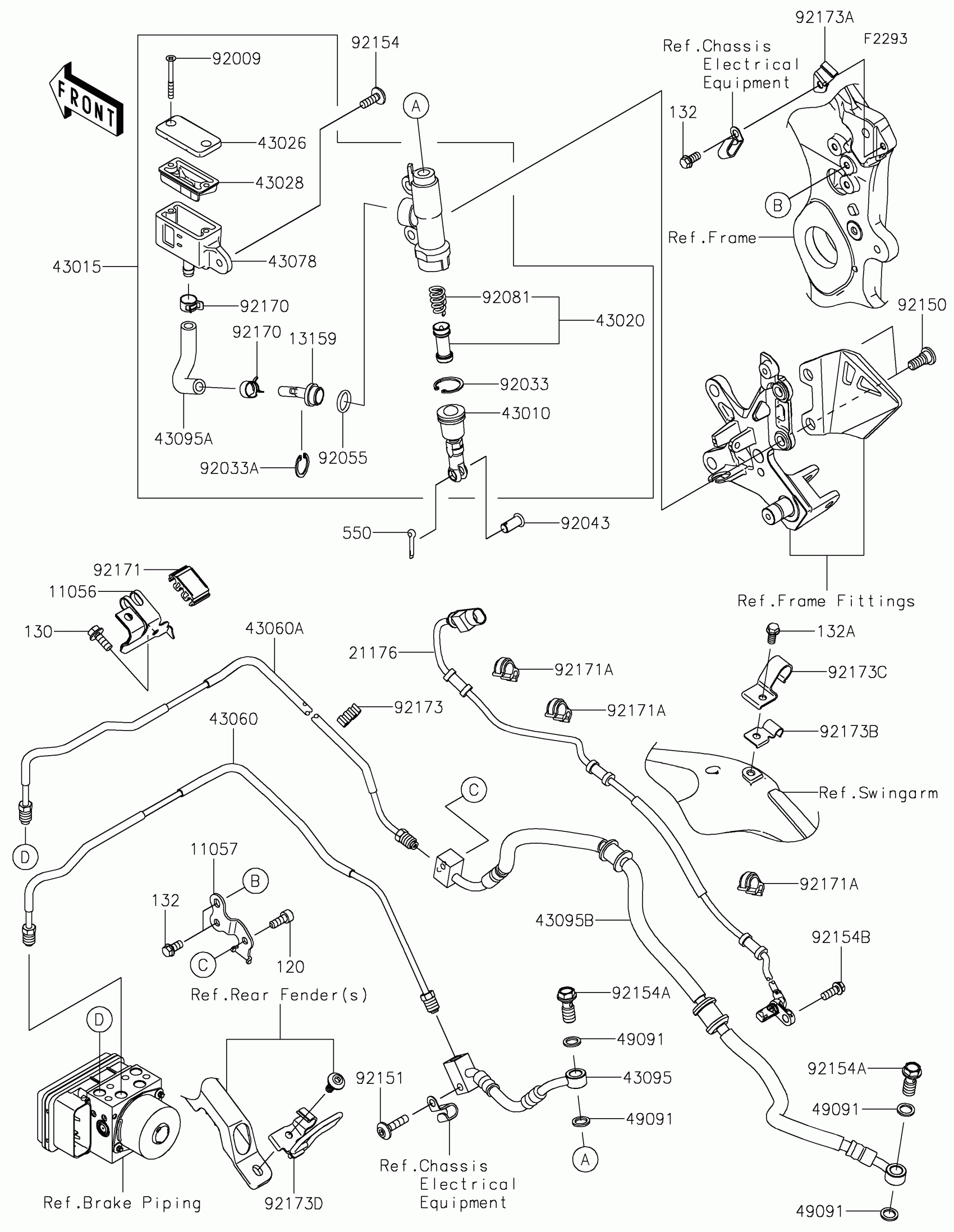

Kawasaki NINJA® ZX™-10R ABS Rear Master Cylinder Diagram

#

Description
Price

11056

BRACKET

11056-1065

$10.36

13159

CONNECTOR

13159-0009

$9.09

21176

SENSOR,RR WHEEL

21176-0708

$117.67

43010

ROD-ASSY-BRAKE

43010-0009

$29.34

43015

CYLINDER-ASSY-MASTER,RR

43015-0161

$232.77

43020

PISTON-COMP-BRAKE

43020-1057

$65.22

43026

CAP-BRAKE

43026-0009

$37.51

43027

PLATE-DIAPHRAGM

43027-1053

$5.67

43028

DIAPHRAGM

43028-1065

$19.09

43060

PIPE-BRAKE,RR M/CYLINDER-HU

43060-0095

$59.26

43060A

PIPE-BRAKE,ABS HU-RR CALIPER

43060-0096

$68.14

43078

RESERVOIR

43078-0071

$30.42

43095

HOSE-BRAKE,RESERVOIR

43095-0585

$34.37

43095A

HOSE-BRAKE,RR M/CYLINDER-SWABK

43095-0595

$35.90

43095B

HOSE-BRAKE,SWABKT-CALIPER

43095-0645

$60.16

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$7.78

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92043

PIN,8X17

92043-0104

$3.90

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92081

SPRING,MASTER CYLINDER

92081-1737

$12.23

92150

BOLT,SOCKET,8X25

92150-1837

$5.00

92151

BOLT,SOCKET,6X25

92151-1611

$2.34

92153

BOLT,OIL,L=23

92153-0627

$5.48

92153A

BOLT,SOCKET,6X12

92153-1617

$1.34

92170

CLAMP,HOSE

92170-1091

$5.00

92170A

CLAMP

92170-1804

$5.29

92171

CLAMP

92171-1731

$3.21

92171A

CLAMP,BRAKE HOSE

92171-1819

$5.54

92173

CLAMP

92173-0181

$4.65

92173A

CLAMP

92173-0240

$4.76

92173B

CLAMP

92173-0259

$6.69

92173C

CLAMP,PIPE

92173-0724

$3.05

92173D

CLAMP

92173-0808

$8.38

120

BOLT-SOCKET,8X20

120CB0820

$4.45

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,6X16

130BA0616

$1.20

132

BOLT-FLANGED-SMALL,6X10

132BB0610

$2.49

224

SCREW-PAN-WP-CROS,4X8

224AA0408

$0.74

550

PIN-COTTER,2.0X15

550AA2015

$1.12
