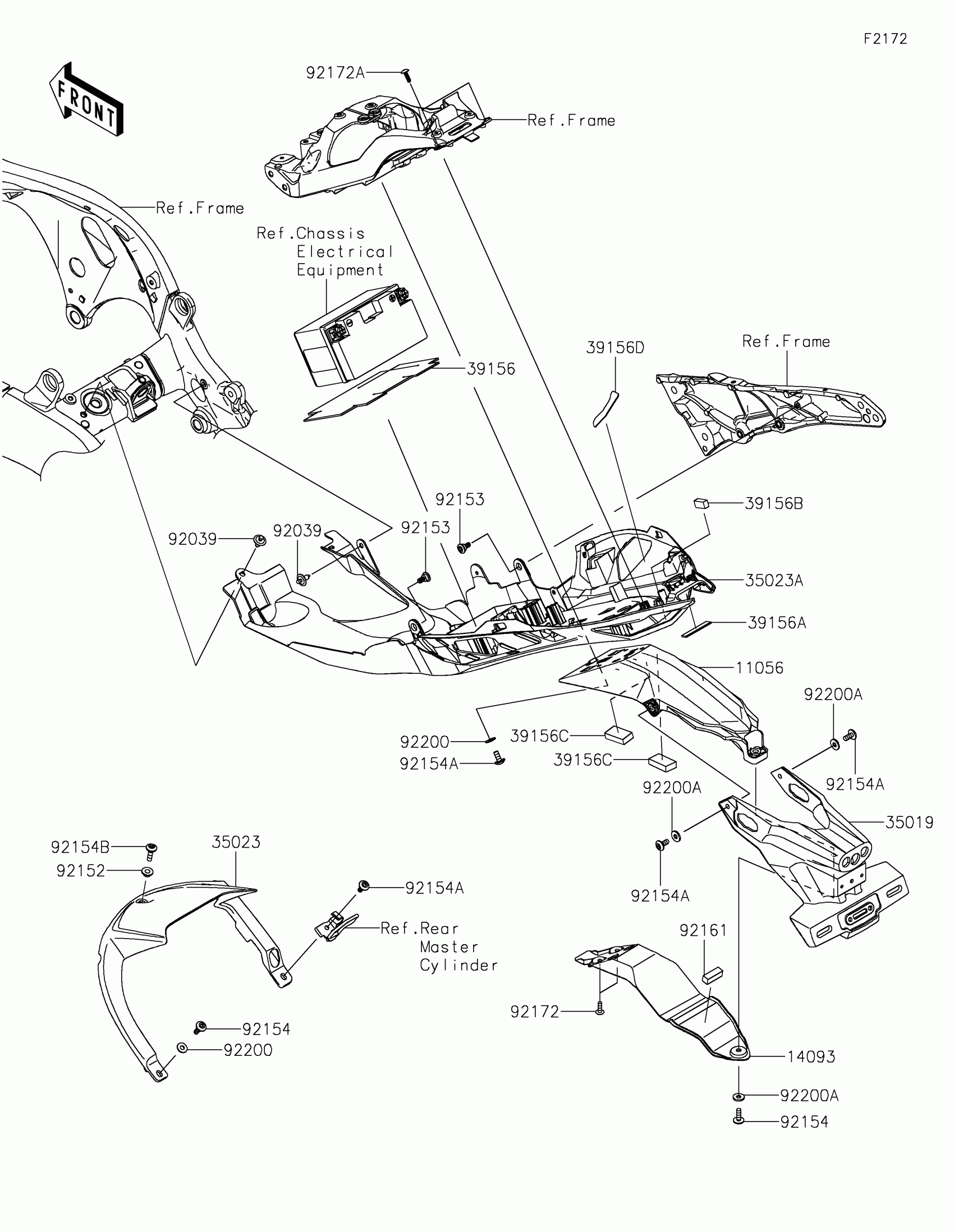

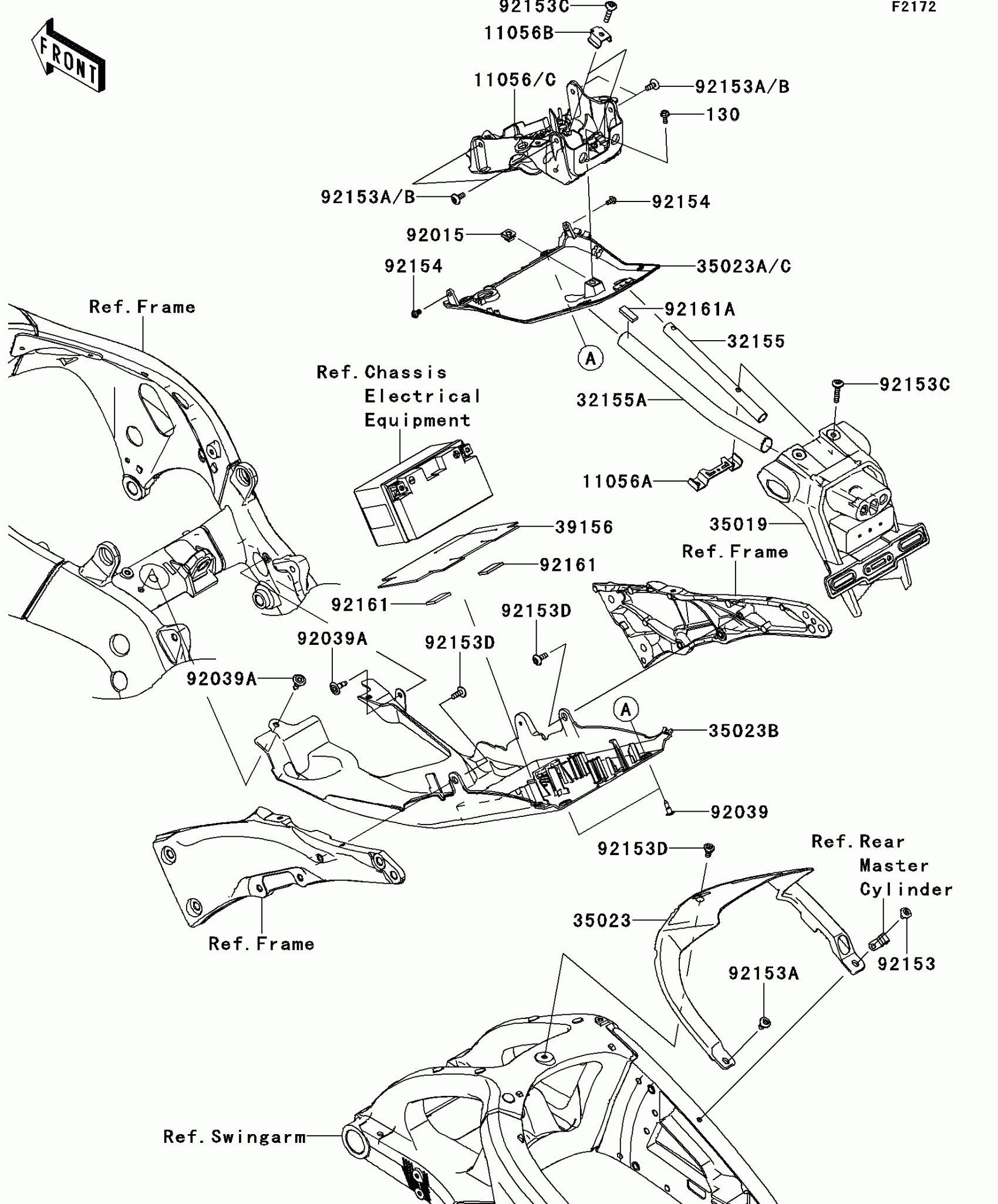

Kawasaki NINJA® ZX™-10R ABS Rear Fender(s) Diagram

Description

Price

11056A

BRACKET

11056-0245

$9.21

11056B

BRACKET

11056-0433

$12.20

11056C

BRACKET,TAIL LAMP

11056-1855

$83.74

32155

PIPE,SIDE

32155-0968

$17.74

32155A

PIPE,CNT

32155-0969

$28.69

35019

FLAP,RR

35019-0561

$36.78

35023

FENDER-REAR,INNER

35023-0188

$32.83

35023B

FENDER-REAR,FR

35023-0328

Unavailable

35023C

FENDER-REAR,RR

35023-0347

$37.78

39156

PAD,REAR FENDER

39156-0754

$35.06

92015

NUT,5MM

92015-1573

$6.63

92039

RIVET

92039-0068

$2.97

92039A

RIVET

92039-1289

$2.80

92153

BOLT,SOCKET,6X10

92153-0411

$2.80

92153A

BOLT,SOCKET,6X14

92153-0422

$2.41

92153B

BOLT,SOCKET,6X14

92153-1446

$2.15

92153C

BOLT,SOCKET,6X30

92153-1528

$3.39

92153D

BOLT,SOCKET,6MM

92153-1956

$3.90

92154

BOLT,SOCKET,5X10

92154-0211

$2.12

92161

DAMPER,20X30X3

92161-0958

$2.32

92161A

DAMPER,10X25X5

92161-0989

$0.58

130

BOLT-FLANGED,5X12

130BB0512

$1.93
