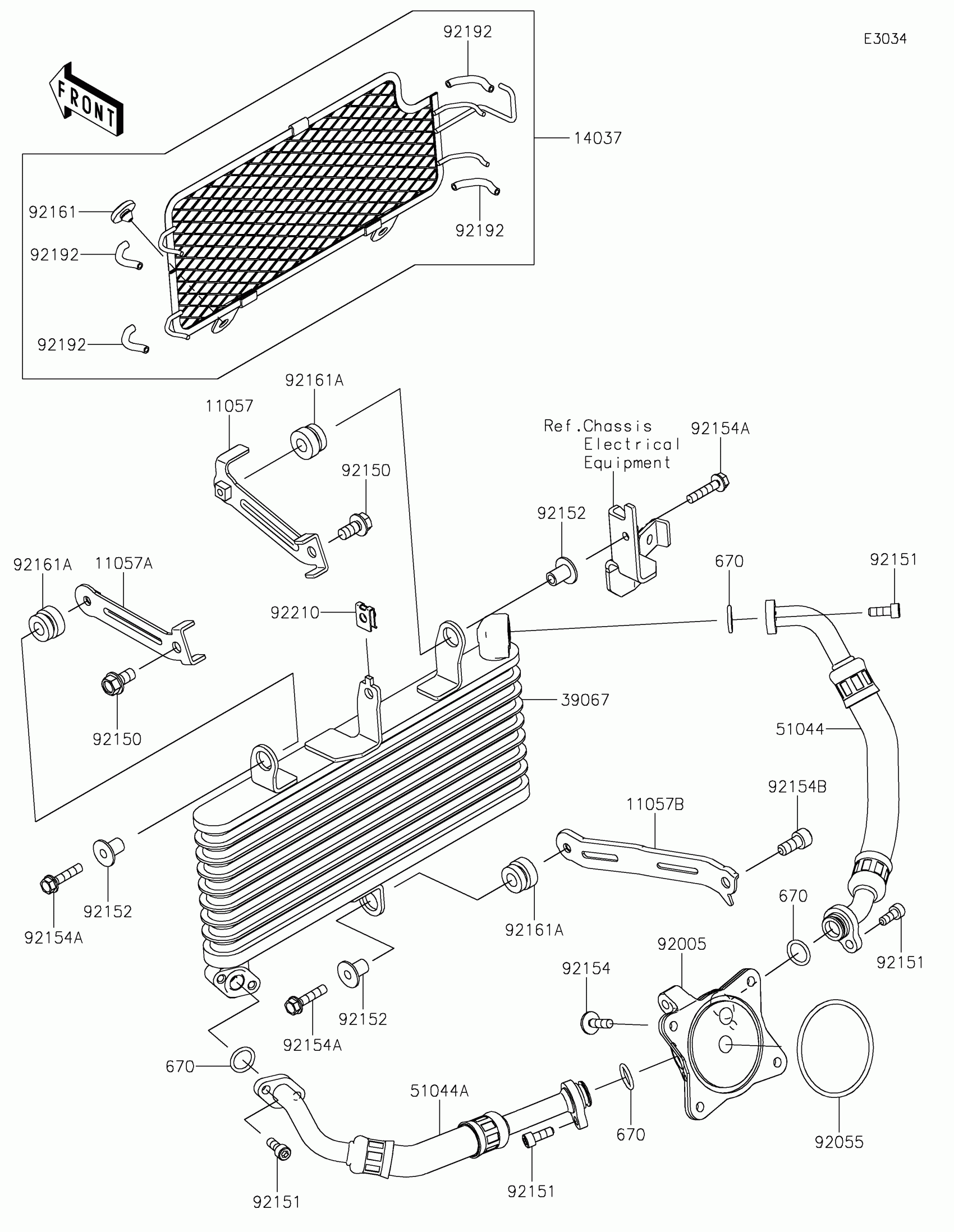

Kawasaki NINJA® ZX™-10R ABS Oil Cooler Diagram

Description

Price

11057

BRACKET,OIL COOLER,RH

11057-4236

$12.62

11057A

BRACKET,OIL COOLER,LH

11057-4237

$9.95

11057B

BRACKET,OIL COOLER,UNDER

11057-4238

$11.42

14037

SCREEN,OIL COOLER

14037-0826

$163.33

39067

COOLER-OIL

39067-0025

$501.24

51044

TUBE-ASSY,RH

51044-1281

$123.48

51044A

TUBE-ASSY,LH

51044-1282

$136.54

92005

FITTING,OIL COOLER

92005-1488

$106.51

92055

RING-O,63.3MM

92055-0739

$4.10

92150

BOLT,8X16

92150-3846

$6.22

92151

BOLT

92151-1166

$2.26

92152

COLLAR

92152-2721

$5.31

92154

BOLT,FLANGED,6X22

92154-0403

$3.35

92154A

BOLT,FLANGED,6X28

92154-4185

$2.58

92154B

BOLT,SOCKET,8X18

92154-4221

$7.78

92161

DAMPER

92161-2342

$6.03

92161A

DAMPER

92161-2343

$3.04

92192

TUBE

92192-2364

$7.95

92210

NUT

92210-1323

$4.18

670

O RING,15MM

670D2015

$1.62
