Description

Price

13042

WEIGHT,HANDLE

13042-5001

$51.69

13091

HOLDER,CLUTCH LEVER

13091-1624

$35.87

13280

HOLDER,CLUTCH LEVER

13280-1160

$47.20

27010

SWITCH,CLUTCH

27010-0717

Unavailable

32099

CASE,THROTTLE

32099-0049

$28.34

46003

HANDLE,LH

46003-0192

$201.93

46003A

HANDLE,RH

46003-0193

$201.93

46019

GRIP-ASSY,THROTTLE

46019-0020

$42.73

46075

GRIP,LH

46075-0068

$18.92

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0078

Unavailable

46091

HOUSING-ASSY-CONTROL,RH

46091-0114

$144.65

46091A

HOUSING-ASSY-CONTROL,LH

46091-0212

$189.41

46092

LEVER-GRIP,CLUTCH

46092-0006

$18.69

92145

SPRING

92145-1286

$5.95

92150

BOLT,6MM

92150-1090

$7.45

92151

BOLT

92151-1523

$7.45

92152

COLLAR

92152-0103

$19.00

92153

BOLT,SOCKET,8X35

92153-0907

$4.92

92153A

BOLT,17X18

92153-1667

$18.95

92154

BOLT,SOCKET,8X30

92154-0502

$3.74

92172

SCREW,3X16

92172-0183

$2.15

92172A

SCREW,ADJUST NUT

92172-1060

$39.14

92210

NUT,LOCK,6MM

92210-0006

$2.46

120

BOLT-SOCKET,6X20

120CA0620

$1.77

220

SCREW-PAN-CROS,5X25

220AB0525

$3.52

220A

SCREW-PAN-CROS,5X35

220AB0535

$2.06

220B

SCREW-PAN-CROS,5X45

220AB0545

$2.06

236

SCREW-PAN-WSP-CROS,4X10

236AB0410

$1.52

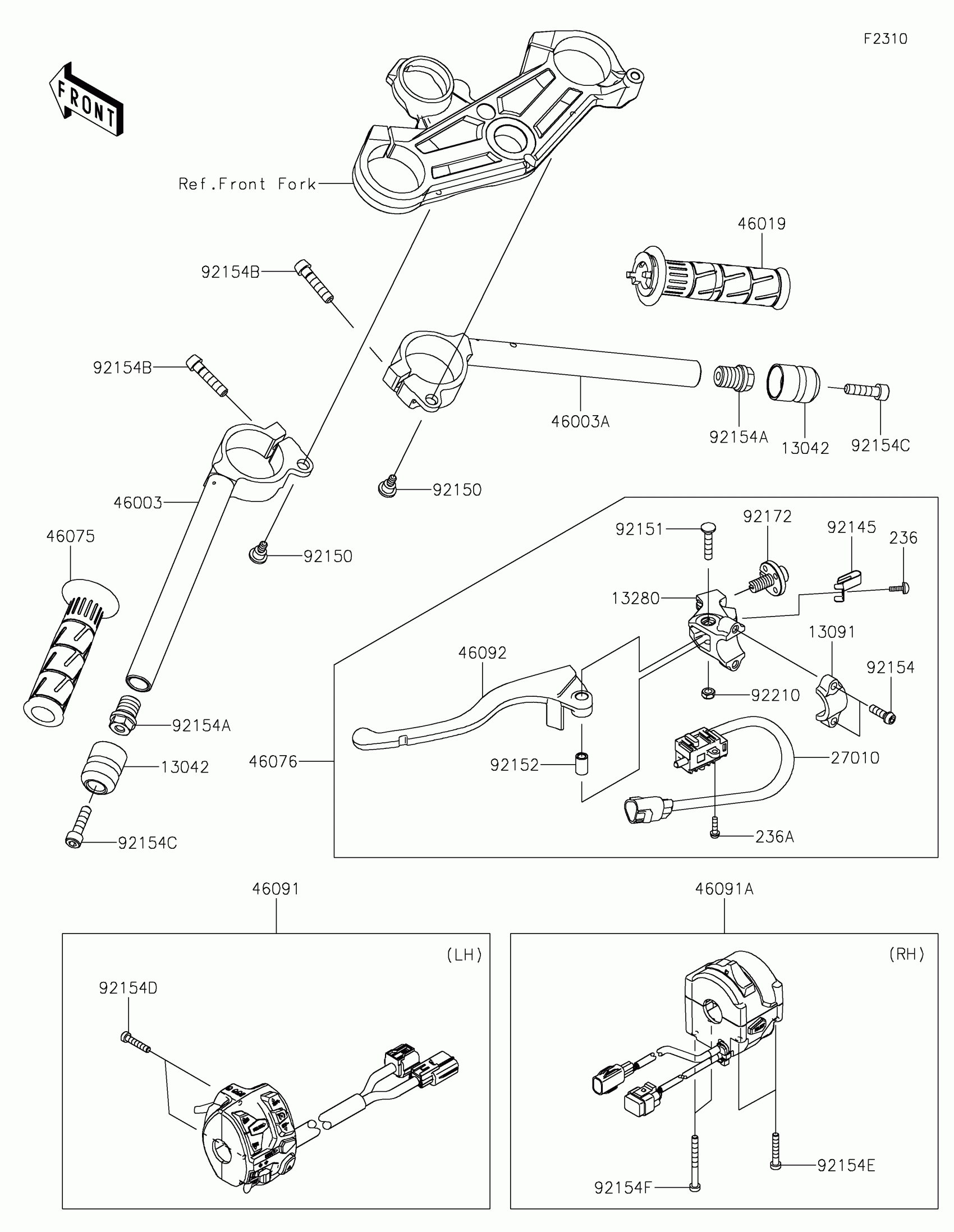

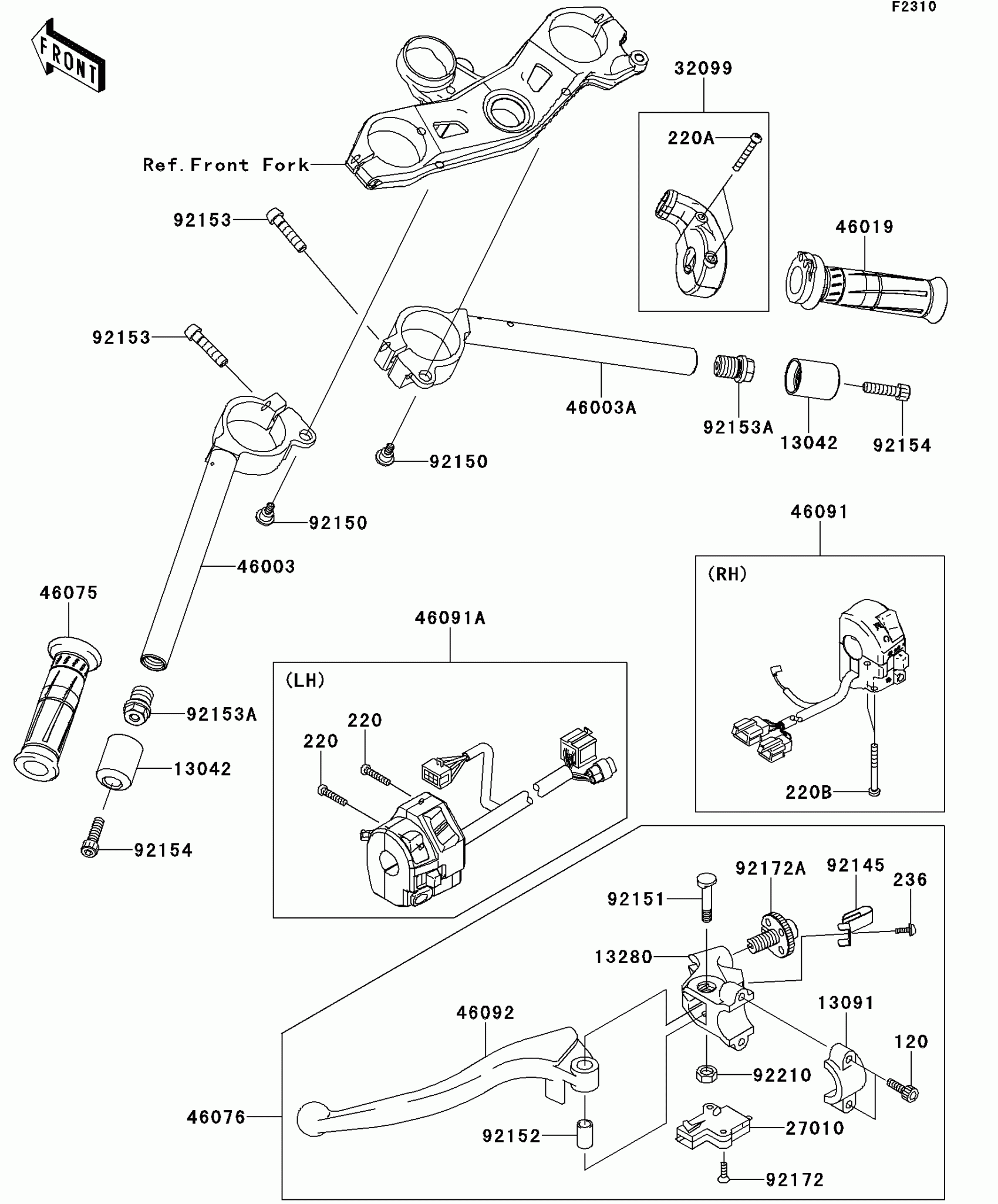

Kawasaki NINJA® ZX™-10R ABS Handlebar Diagram

WEIGHT,HANDLE

HOLDER,CLUTCH LEVER

HOLDER,CLUTCH LEVER

SWITCH,CLUTCH

CASE,THROTTLE

HANDLE,LH

HANDLE,RH

GRIP-ASSY,THROTTLE

GRIP,LH

LEVER-ASSY-GRIP,CLUTCH

HOUSING-ASSY-CONTROL,RH

HOUSING-ASSY-CONTROL,LH

LEVER-GRIP,CLUTCH

SPRING

BOLT,6MM

BOLT

COLLAR

BOLT,SOCKET,8X35

BOLT,17X18

BOLT,SOCKET,8X30

SCREW,3X16

SCREW,ADJUST NUT

NUT,LOCK,6MM

BOLT-SOCKET,6X20

SCREW-PAN-CROS,5X25

SCREW-PAN-CROS,5X35

SCREW-PAN-CROS,5X45

SCREW-PAN-WSP-CROS,4X10
