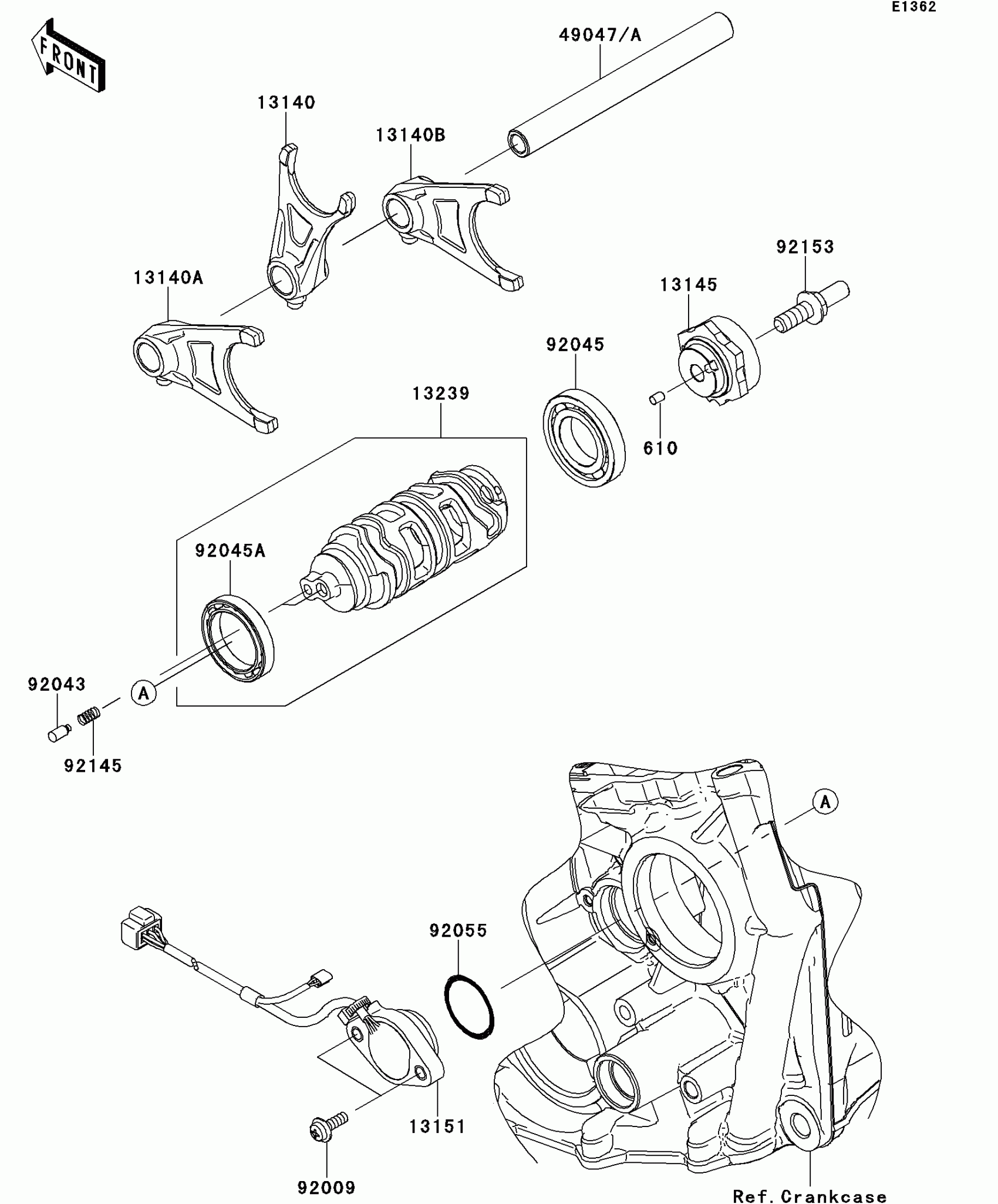

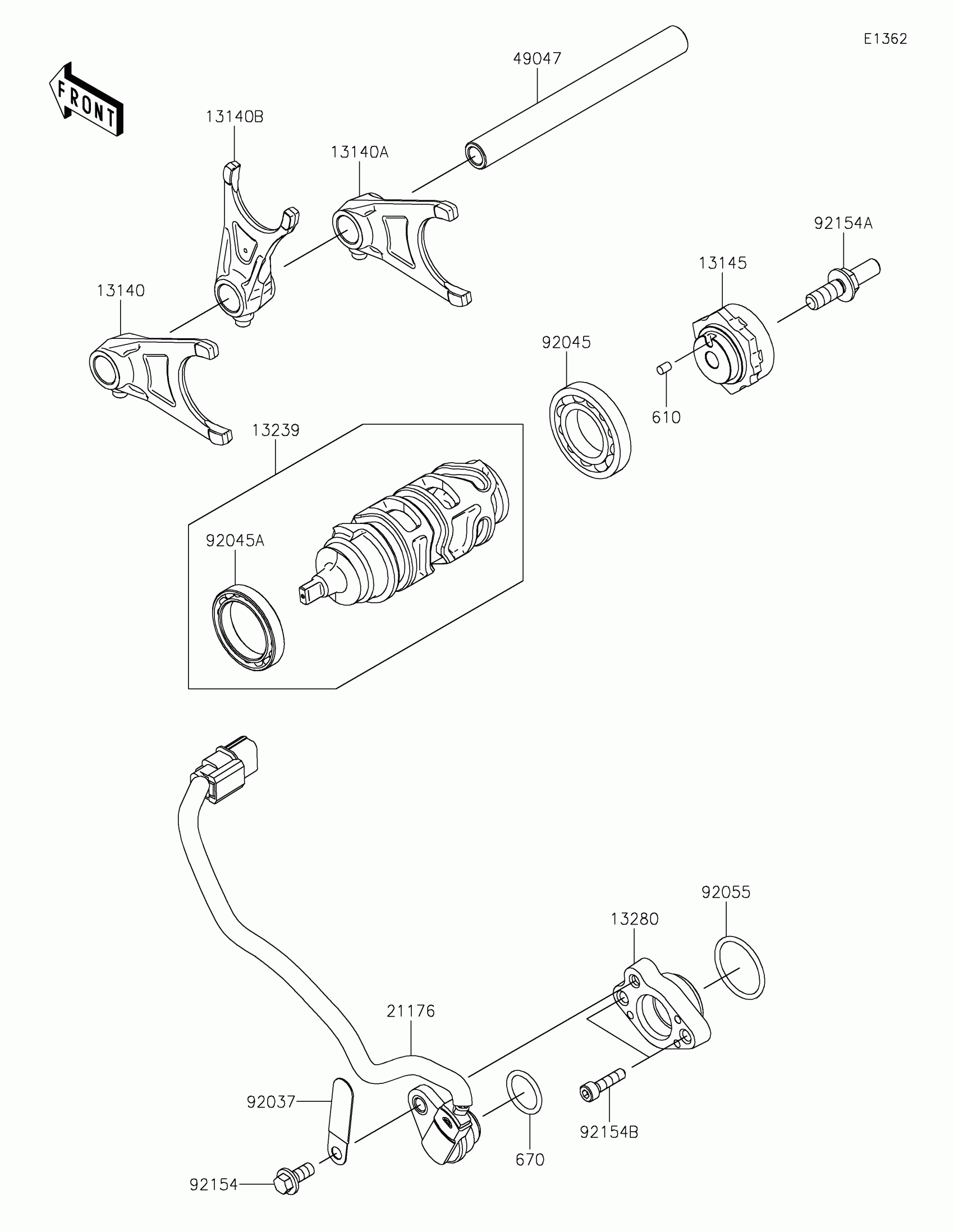

Kawasaki NINJA® ZX™-10R ABS Gear Change Drum/Shift Fork(s) Diagram

Description

Price

13140

FORK-SHIFT,INPUT

13140-0063

$121.48

13140A

FORK-SHIFT,OUTPUT,LH

13140-0064

Unavailable

13140B

FORK-SHIFT,OUTPUT,RH

13140-0065

$109.01

13145

CAM-CHANGE DRUM

13145-0051

$58.29

13151

SWITCH-COMP,GEAR POSITION

13151-0053

$134.53

13239

DRUM-ASSY-CHANGE

13239-0559

$181.27

49047A

ROD-SHIFT

49047-0623

$55.16

92009

SCREW

92009-1895

$1.41

92043

92043-1654

$2.84

92045

BEARING-BALL,16005

92045-1045

$28.80

92045A

BEARING-BALL,6806

92045-1152

$46.71

92055

RING-O,27.7X2.4

92055-091

$4.67

92145

SPRING

92145-1414

$3.03

92153

BOLT

92153-1735

$12.47

610

ROLLER,4X6

610A0406

$3.29
