Description

Price

11056

BRACKET,TANK COVER,SIDE

11056-0242

$7.98

11056A

BRACKET,TANK COVER,FR

11056-1655

$11.87

14069

BREATHER,FUEL TANK

14069-1004

$10.19

14092

COVER,TANK,CNT,M.M.C.GRAY

14092-0786-51B

$174.63

14092B

COVER,TANK,LH,F.EBONY

14092-0787-45L

$215.18

14092C

COVER,TANK,RH,F.EBONY

14092-0788-45L

$214.89

27012

HOOK

27012-0170

$5.54

27012A

HOOK

27012-0171

$5.91

32052

BRACKET-TANK

32052-0154

$36.45

39156

PAD,40X180X1.0

39156-0745

$19.13

51049

CAP-TANK,FUEL

51049-0030

$128.39

51089B

TANK-COMP-FUEL,M.M.C.GRAY

51089-5066-51B

$1,292.99

51089C

TANK-COMP-FUEL,M.M.C.GRAY

51089-5067-51B

$1,292.99

53044

TRIM

53044-1296

$11.99

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92015A

NUT,RUBBER,6MM

92015-1692

$7.34

92015B

NUT,WELL,5MM

92015-1757

$7.29

92022

WASHER-PLAIN

92022-183

$3.92

92037

CLAMP,TUBE

92037-010

$3.92

92037

CLAMP,TUBE

92037-010

$3.92

92037A

CLAMP,TUBE

92037-147

$7.34

92071

GROMMET

92071-1043

$5.46

92075

DAMPER

92075-1982

$4.39

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92152

COLLAR,6.8X10X18.5

92152-0883

$2.34

92152A

COLLAR,6.8X10X60

92152-1182

$4.83

92153

BOLT,SOCKET,6X16

92153-1526

$1.78

92153A

BOLT,FLANGED,6X28

92153-1580

$2.15

92153B

BOLT,SOCKET,5X16

92153-1616

$1.34

92154

BOLT,SOCKET,6X30

92154-0206

$2.75

92154A

BOLT,SOCKET,5X16

92154-0209

$2.75

92154B

BOLT,SOCKET,5X10

92154-0211

$2.12

92160

DAMPER

92160-1613

$3.74

92161

DAMPER

92161-0365

$5.33

92161A

DAMPER,10X30X16

92161-0869

$4.41

92161B

DAMPER,10X90X10

92161-0963

$1.94

92161C

DAMPER

92161-1116

$9.19

92161D

DAMPER,FUEL TANK,RR

92161-1330

$6.18

92171

CLAMP

92171-0782

$3.90

92192

TUBE,6X9X(770)

92192-0975

$11.01

92200

WASHER,6.5X22X1.6

92200-1087

$3.94

130

BOLT-FLANGED,6X12

130AA0612

$0.68

130A

BOLT-FLANGED,6X75

130BA0675

$1.63

702

TUBE-RUBBER,6X200

702A06200

$8.98

702A

TUBE-RUBBER,6X9X750

702A06750

$21.97

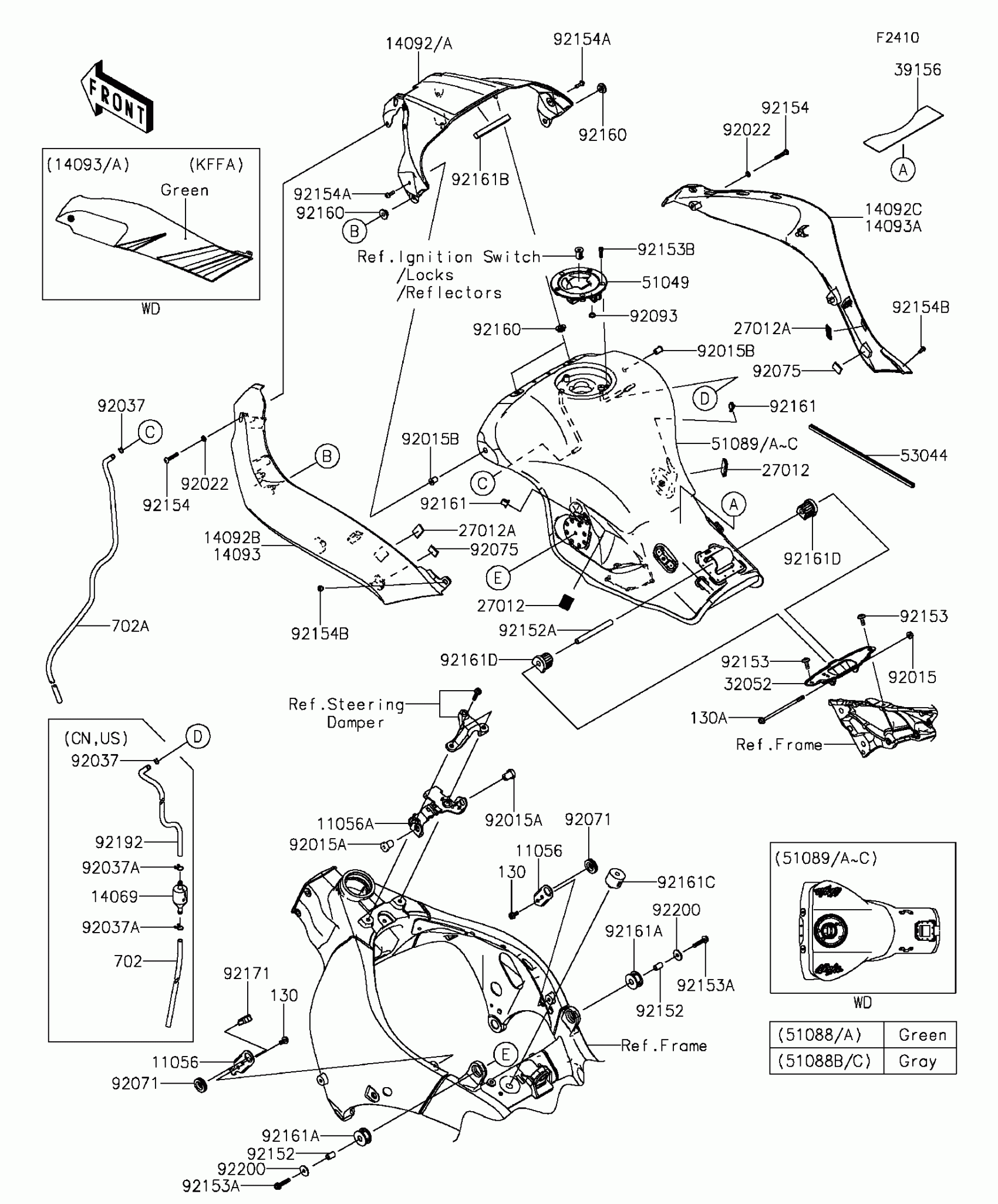

Kawasaki Ninja® ZX™-10R ABS Fuel Tank Diagram

BRACKET,TANK COVER,SIDE

BRACKET,TANK COVER,FR

BREATHER,FUEL TANK

COVER,TANK,CNT,M.M.C.GRAY

COVER,TANK,LH,F.EBONY

COVER,TANK,RH,F.EBONY

HOOK

HOOK

BRACKET-TANK

PAD,40X180X1.0

CAP-TANK,FUEL

TANK-COMP-FUEL,M.M.C.GRAY

TANK-COMP-FUEL,M.M.C.GRAY

TRIM

NUT,FLANGED,6MM

NUT,RUBBER,6MM

NUT,WELL,5MM

WASHER-PLAIN

CLAMP,TUBE

CLAMP,TUBE

CLAMP,TUBE

GROMMET

DAMPER

SEAL,FUEL TANK CAP

COLLAR,6.8X10X18.5

COLLAR,6.8X10X60

BOLT,SOCKET,6X16

BOLT,FLANGED,6X28

BOLT,SOCKET,5X16

BOLT,SOCKET,6X30

BOLT,SOCKET,5X16

BOLT,SOCKET,5X10

DAMPER

DAMPER

DAMPER,10X30X16

DAMPER,10X90X10

DAMPER

DAMPER,FUEL TANK,RR

CLAMP

TUBE,6X9X(770)

WASHER,6.5X22X1.6

BOLT-FLANGED,6X12

BOLT-FLANGED,6X75

TUBE-RUBBER,6X200

TUBE-RUBBER,6X9X750
