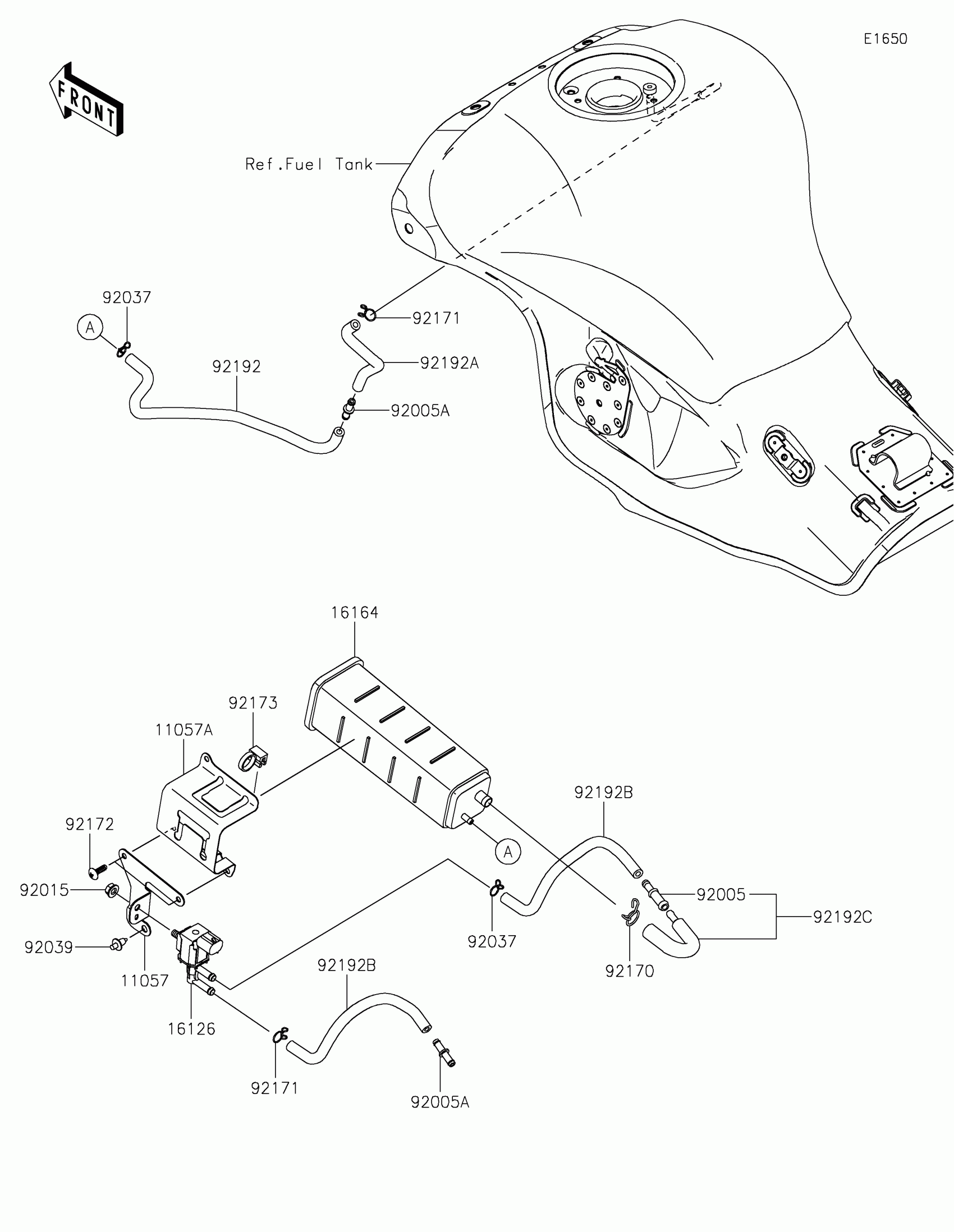

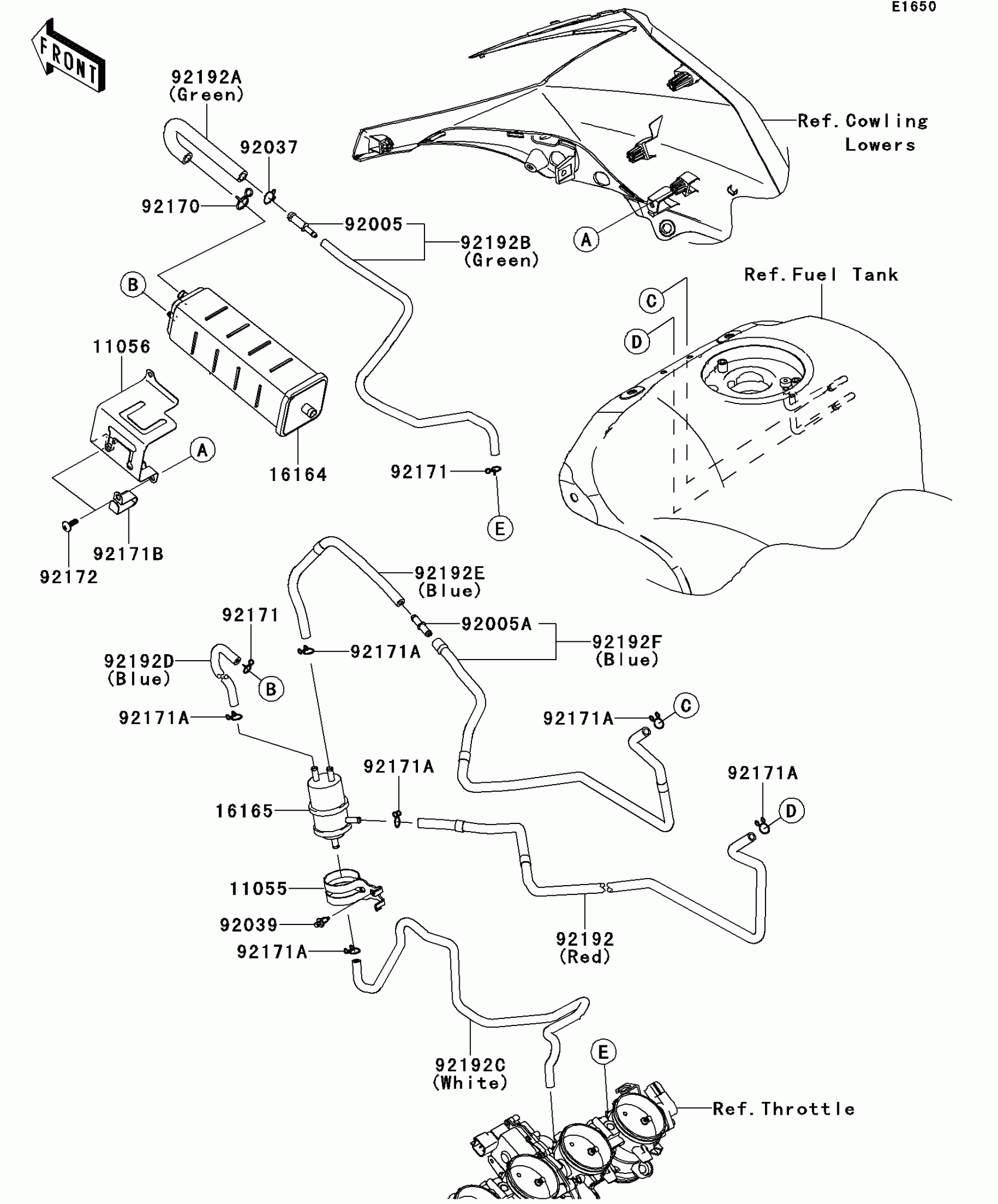

Kawasaki NINJA® ZX™-10R ABS Fuel Evaporative System(CA) Diagram

Description

Price

11055

BRACKET,SEPARATOR

11055-1173

$15.35

11056

BRACKET,CANISTER

11056-0194

$18.77

16164

CANISTER

16164-0009

$137.47

16165

SEPARATOR

16165-1001

$90.01

92005

FITTING

92005-0032

$5.60

92005A

FITTING

92005-0721

$9.09

92037

CLAMP,12.5MM

92037-1271

$2.79

92039

RIVET

92039-0068

$2.97

92170

CLAMP

92170-1695

$2.78

92171

CLAMP

92171-0576

$5.00

92171A

CLAMP

92171-0718

$2.15

92171B

CLAMP

92171-0911

$7.68

92172

SCREW,TAPPING,5X16

92172-0238

$1.00

92192

TUBE,5X10X940,RED

92192-0895

$90.09

92192A

TUBE,FITTING-CANISTER,GREEN

92192-0896

$49.04

92192B

TUBE,FITTING-THROBO,GREEN

92192-0897

$94.81

92192C

TUBE,SEPARATOR-THROBO,WHITE

92192-0898

$17.39

92192D

TUBE,CANISTER-SEPARATOR,BLUE

92192-0989

$18.59

92192E

TUBE,5X10X720,BLUE

92192-0990

$42.99

92192F

TUBE,TANK-SEPARATOR,BLUE

92192-0991

$86.98
