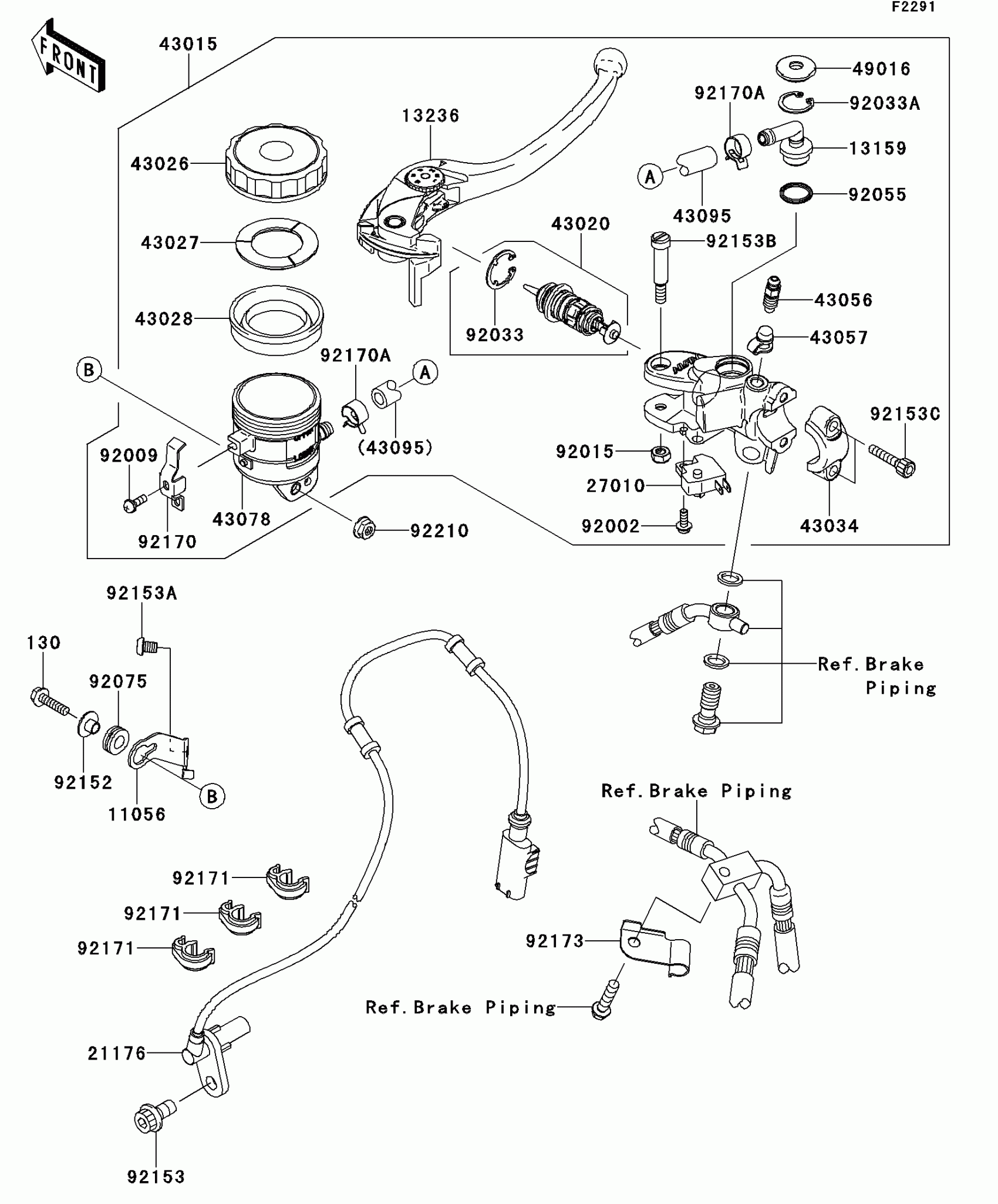

Kawasaki NINJA® ZX™-10R ABS Front Master Cylinder Diagram

#

Description
Price

11056

BRACKET

11056-0180

$12.77

13159

CONNECTOR

13159-1061

$12.96

13236

LEVER-COMP,FRONT BRAKE

13236-0103

$71.47

21176

SENSOR,FR WHEEL

21176-0150

$117.67

27010

SWITCH,BRAKE

27010-0025

$35.04

43015

CYLINDER-ASSY-MASTER,FR

43015-0141

$409.35

43020

PISTON-COMP-BRAKE

43020-0010

$65.94

43026

CAP-BRAKE

43026-1051

$34.20

43027

PLATE-DIAPHRAGM

43027-1051

$5.32

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$19.09

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-0056

$23.08

43056

BREATHER-BRAKE

43056-1056

$14.30

43057

CAP-BREATHER

43057-1001

$4.91

43078

RESERVOIR

43078-1099

$32.29

43095

HOSE-BRAKE,FR MASTER CYLINDER

43095-0366

$13.04

49016

COVER-SEAL

49016-1147

$6.29

92002

BOLT,SCREW,4X12

92002-1323

$3.92

92009

SCREW

92009-1570

$3.09

92015

NUT,FLANGED,6MM

92015-1528

$5.52

92033

RING-SNAP

92033-0034

$4.55

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92075

DAMPER

92075-161

$4.69

92152

COLLAR

92152-0017

$2.80

92153

BOLT,SOCKET,8X16

92153-0327

$6.28

92153A

BOLT,6X8

92153-0578

$2.55

92153B

BOLT,LEVER

92153-0868

$7.83

92153C

BOLT,SOCKET,6X22

92153-1518

$3.90

92170

CLAMP

92170-1090

$14.43

92170A

CLAMP,HOSE

92170-1091

$5.00

92171

CLAMP,BRAKE HOSE

92171-1819

$5.54

92173

CLAMP

92173-0086

$5.05

92210

NUT,FLANGED,5MM

92210-0007

$2.70

130

BOLT-FLANGED,5X20

130BB0520

$2.02
