2014 Kawasaki Ninja® ZX™-10R ABS Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2014 Kawasaki Ninja® ZX™-10R ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

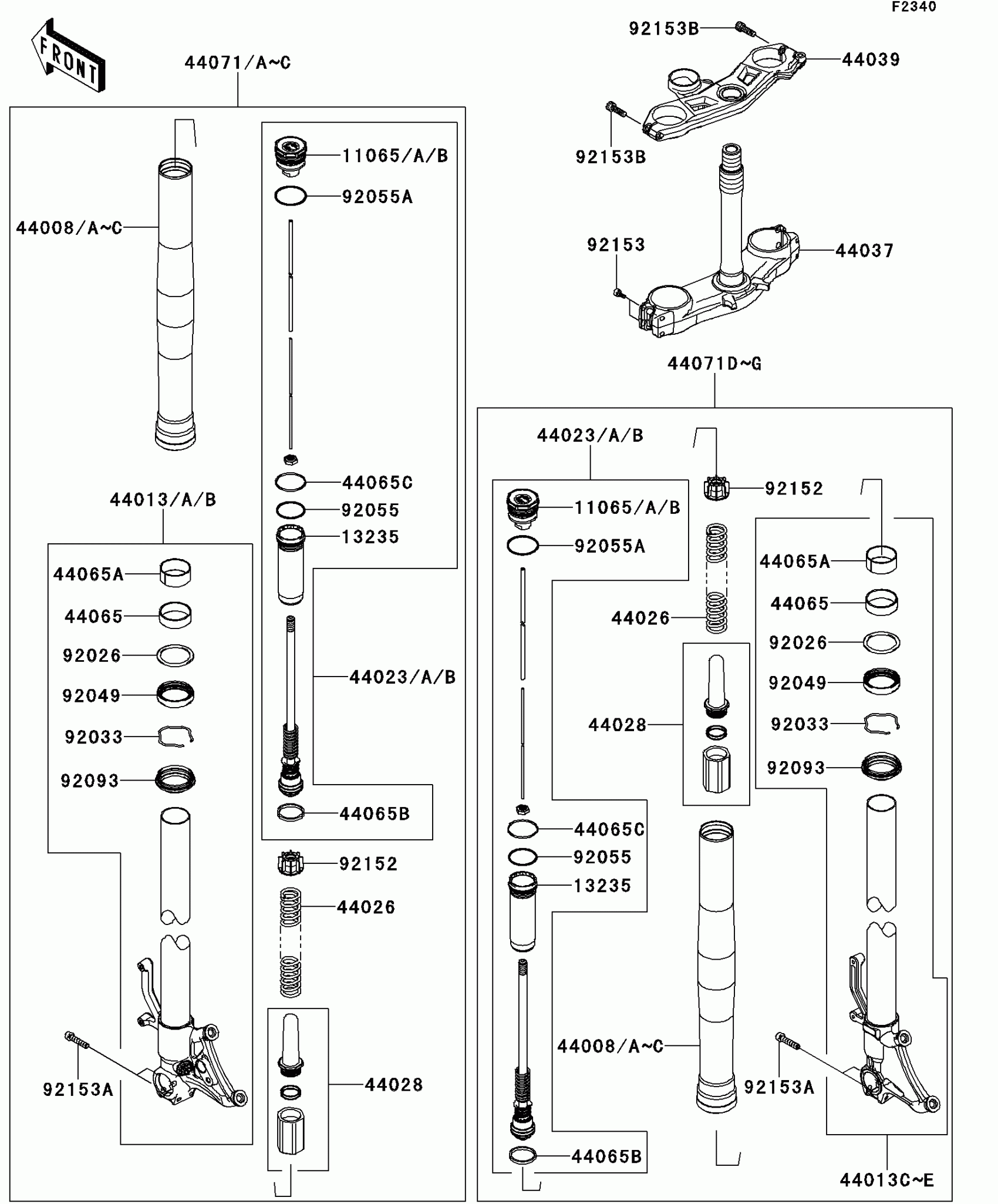

2014 Kawasaki Ninja® ZX™-10R ABS Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,FORK BOLT COMP,P.RED

11065-0379-10B

1
Out of stock

11065A

CAP,FORK BOLT COMP,GRAY

11065-0379-11G

1
Out of stock

13235

GUIDE-COMP

13235-0006

1
Out of stock

44008B

PIPE-FORK OUTER,R.GOLD

44008-0054-484

1
Out of stock

44008C

PIPE-FORK OUTER,A.BLACK

44008-0054-499

1
Out of stock

44013

PIPE-FORK INNER,LH,P.RED

44013-0162-10B

1
Out of stock

44013A

PIPE-FORK INNER,LH,GRAY

44013-0162-11G

1
Out of stock

44013C

PIPE-FORK INNER,RH,P.RED

44013-0163-10B

1
Out of stock

44013D

PIPE-FORK INNER,RH,GRAY

44013-0163-11G

1
Out of stock

44023

CYLINDER-SET-FORK,P.RED

44023-0092-10B

1
Out of stock

44023A

CYLINDER-SET-FORK,GRAY

44023-0092-11G

1
Out of stock

44026

SPRING-FRONT FORK

44026-0154

1
Out of stock

44028

GUIDE-FORK SPRING

44028-0005

1
Out of stock

44037

HOLDER-FORK UNDER

44037-0114

1
Out of stock

44039

HOLDER-FORK UPPER,A.BLACK

44039-0104-499

1
Out of stock

44065

BUSHING-FRONT FORK

44065-0026

1
Out of stock

44065A

BUSHING-FRONT FORK,SLIDE

44065-0038

1
Out of stock

44065B

BUSHING-FRONT FORK

44065-0039

1
Out of stock

44065C

BUSHING-FRONT FORK

44065-0040

1
Out of stock

44071B

DAMPER-ASSY,FORK,LH,GOLD

44071-0699-39U

1
Out of stock

44071C

DAMPER-ASSY,FORK,LH,BLK/GRY/GRY

44071-0699-48L

1
Out of stock

44071F

DAMPER-ASSY,FORK,RH,GOLD

44071-0700-39U

1
Out of stock

44071G

DAMPER-ASSY,FORK,RH,BLK/GRY/GRY

44071-0700-48L

1
Out of stock

92026

SPACER

92026-0165

1
Out of stock

92033

RING-SNAP

92033-1222

1
Out of stock

92049

SEAL-OIL

92049-0064

1
Out of stock

92055

RING-O

92055-0215

1
Out of stock

92055A

RING-O,FORK CAP

92055-1497

1
Out of stock

92093

SEAL,DUST

92093-0042

1
Out of stock

92152

COLLAR

92152-0930

1
Out of stock

92153

BOLT

92153-0853

1
Out of stock

92153A

BOLT,SOCKET,8X35

92153-0854

1
Out of stock

92153B

BOLT,SOCKET,8X25

92153-1625

1
Out of stock
