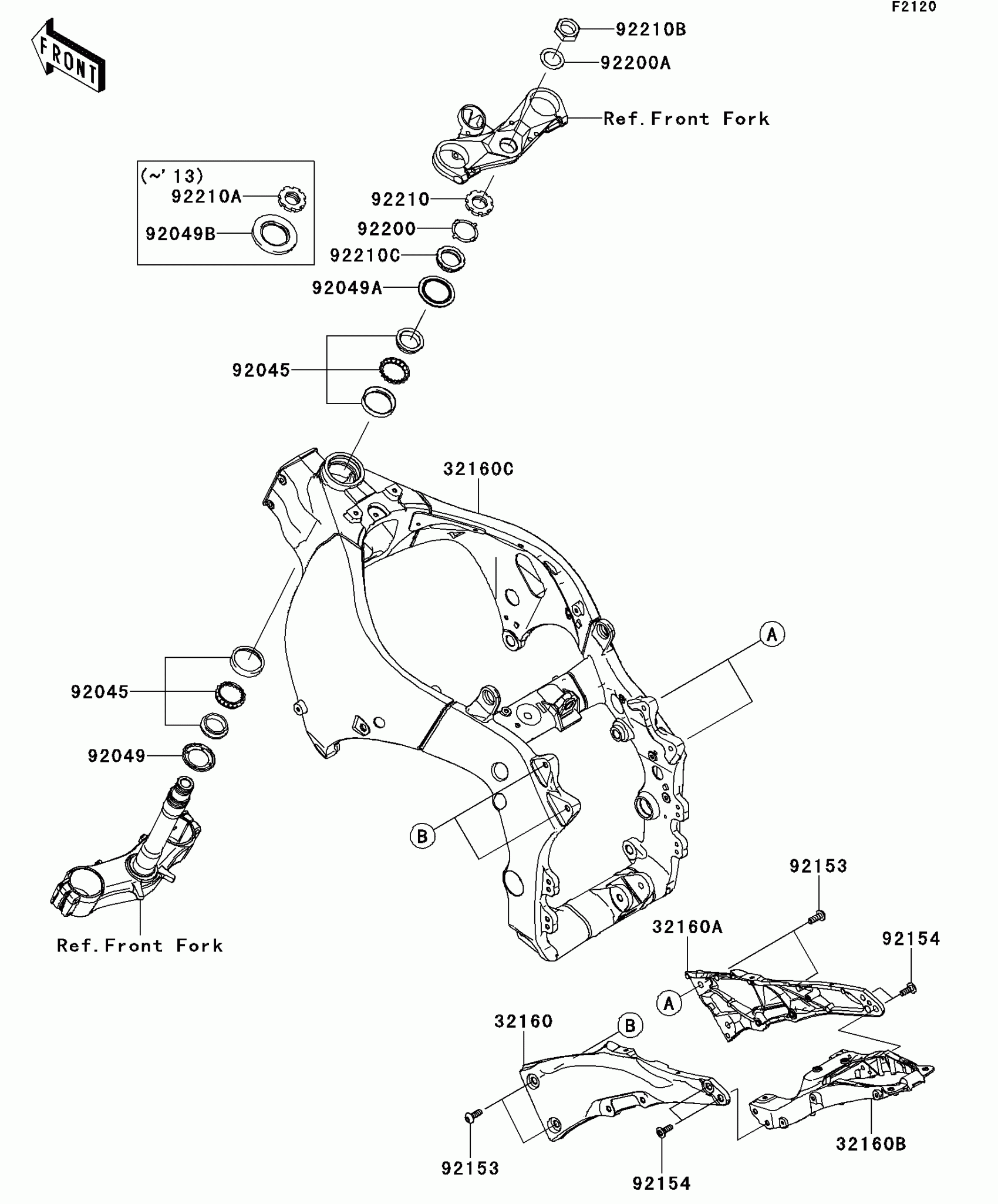

2014 Kawasaki Ninja® ZX™-10R ABS Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2014 Kawasaki Ninja® ZX™-10R ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Kawasaki Ninja® ZX™-10R ABS Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32160

FRAME-COMP,RR,LH,F.S.BLACK

32160-0506-18R

1
Out of stock

32160A

FRAME-COMP,RR,RH,F.S.BLACK

32160-0507-18R

1
Out of stock

32160B

FRAME-COMP,RR

32160-0508

1
Out of stock

32160C

FRAME-COMP,FR,F.S.BLACK

32160-0574-18R

1
Out of stock

92045

BEARING-BALL,SF07A17PX1V1

92045-1384

1
Out of stock

92049

SEAL-OIL,DS35X55X4

92049-0022

1
Out of stock

92049A

SEAL-OIL,43X55.5X8.6

92049-0742

1
Out of stock

92153

BOLT,SOCKET,10X25

92153-1136

1
Out of stock

92154

BOLT,SOCKET,8X23

92154-0077

1
Out of stock

92200

WASHER

92200-0036

1
Out of stock

92200A

WASHER,28.5X40X1.6

92200-0595

1
Out of stock

92210

NUT,35MM

92210-0095

1
Out of stock

92210B

NUT,28MM

92210-0209

1
Out of stock

92210C

NUT,35MM

92210-0823

1
Out of stock
