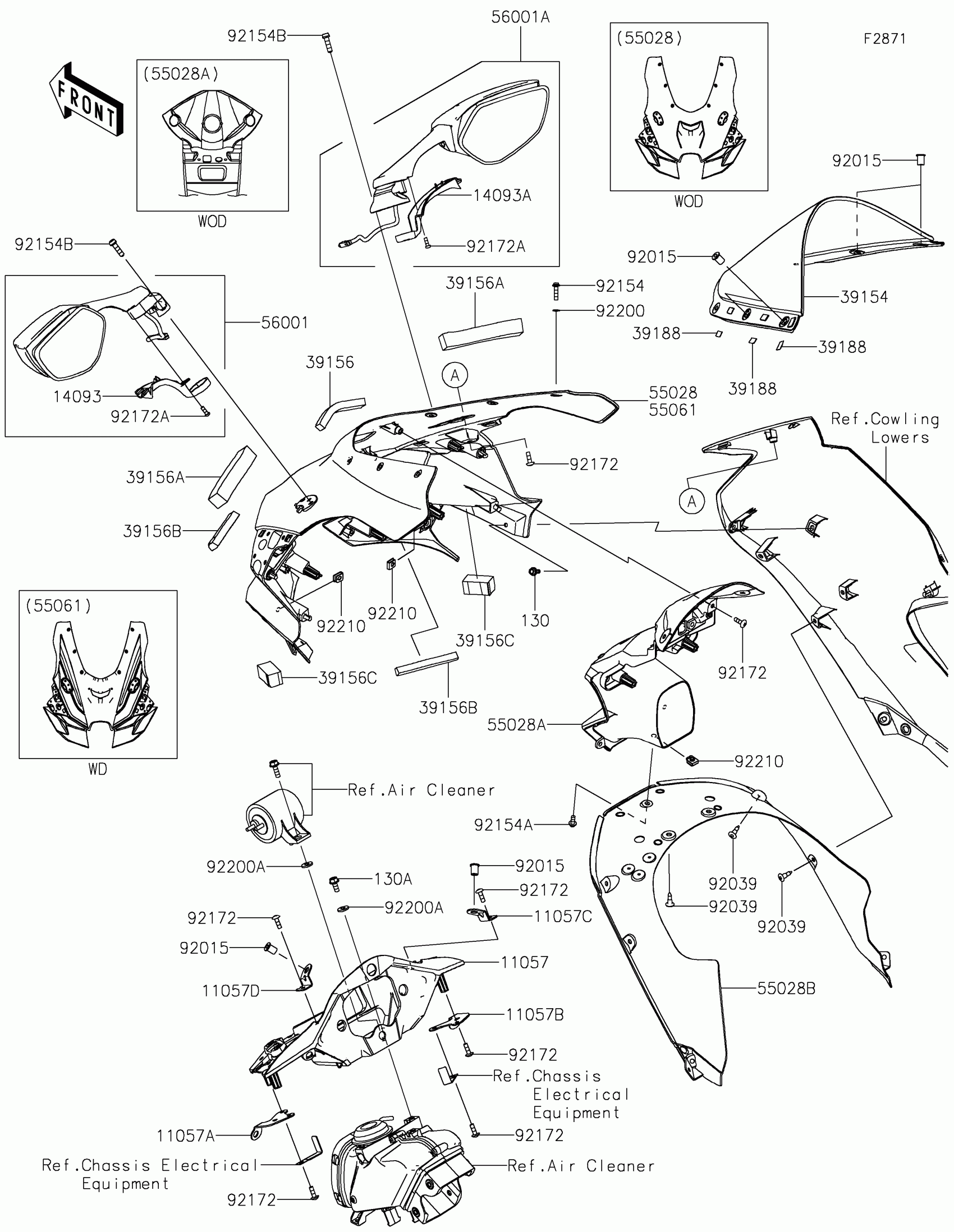

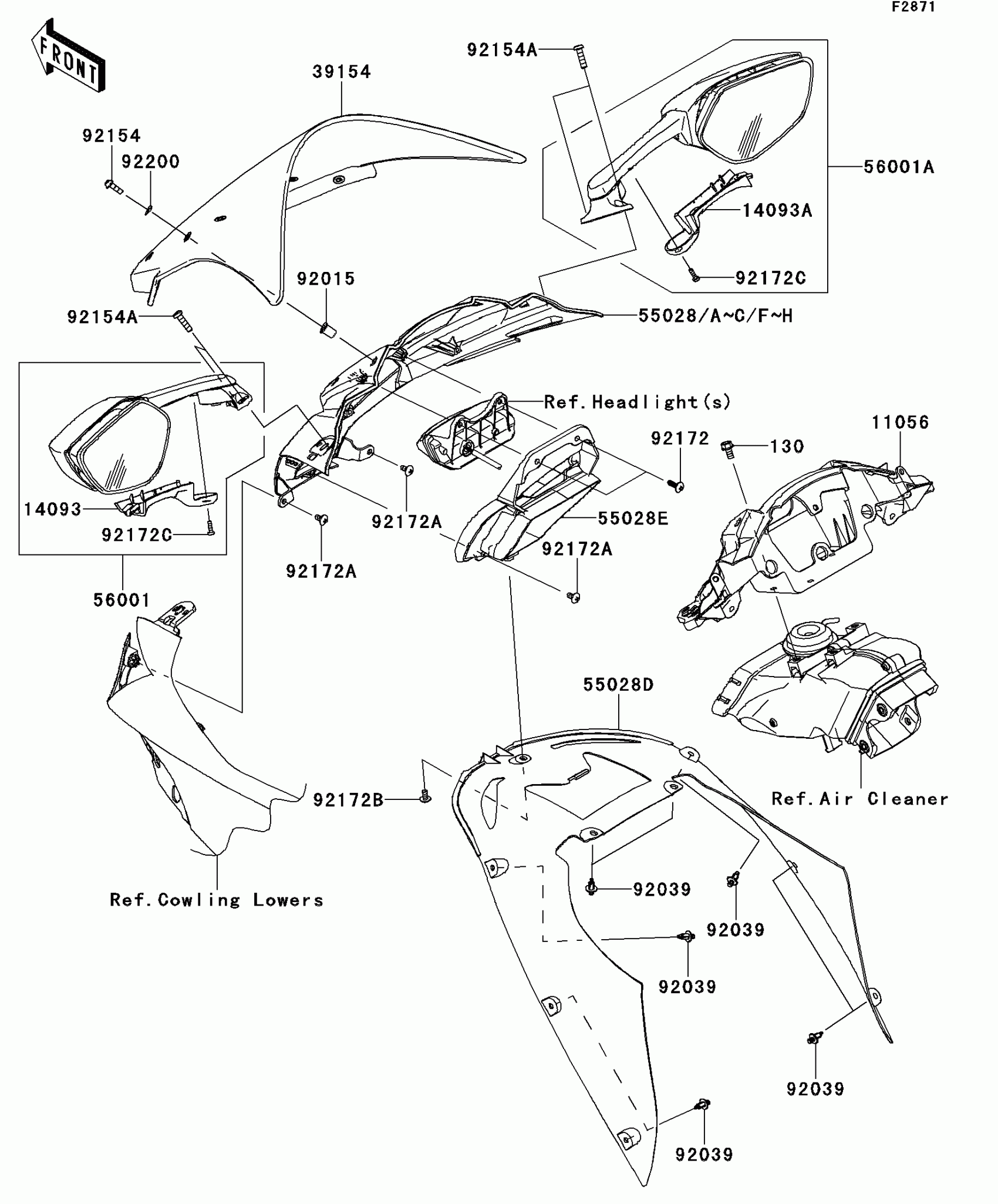

Kawasaki NINJA® ZX™-10R ABS Cowling Diagram

Description

Price

11056

BRACKET,METER

11056-0175

$101.54

14093

COVER,MIRROR,LH

14093-0028

$12.17

14093A

COVER,MIRROR,RH

14093-0029

$12.17

39154

WINDSHIELD

39154-0051

$185.47

55028D

COWLING,FR,CNT

55028-0335

$66.62

55028E

COWLING,RAM AIR

55028-0356

$29.28

55028G

COWLING,UPP,F.EBONY

55028-0458-45L

$321.37

56001

MIRROR-ASSY,LH

56001-0288

$338.23

56001A

MIRROR-ASSY,RH

56001-0289

$338.23

92015

NUT,WELL,5MM

92015-1757

$5.58

92039

RIVET

92039-0068

$2.09

92154

BOLT,SOCKET,5X16

92154-0209

$1.95

92154A

BOLT,SOCKET,6X22

92154-0402

$1.24

92172

SCREW,TAPPING,5X16

92172-0238

$0.84

92172A

SCREW,TAPPING,5X10

92172-0262

$1.04

92172B

SCREW,TAPPING,5X10

92172-0335

$1.57

92172C

SCREW-PAN-CROS,4X10

92172-0871

$0.69

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.36

130

BOLT-FLANGED,6X12

130BA0612

$1.25
