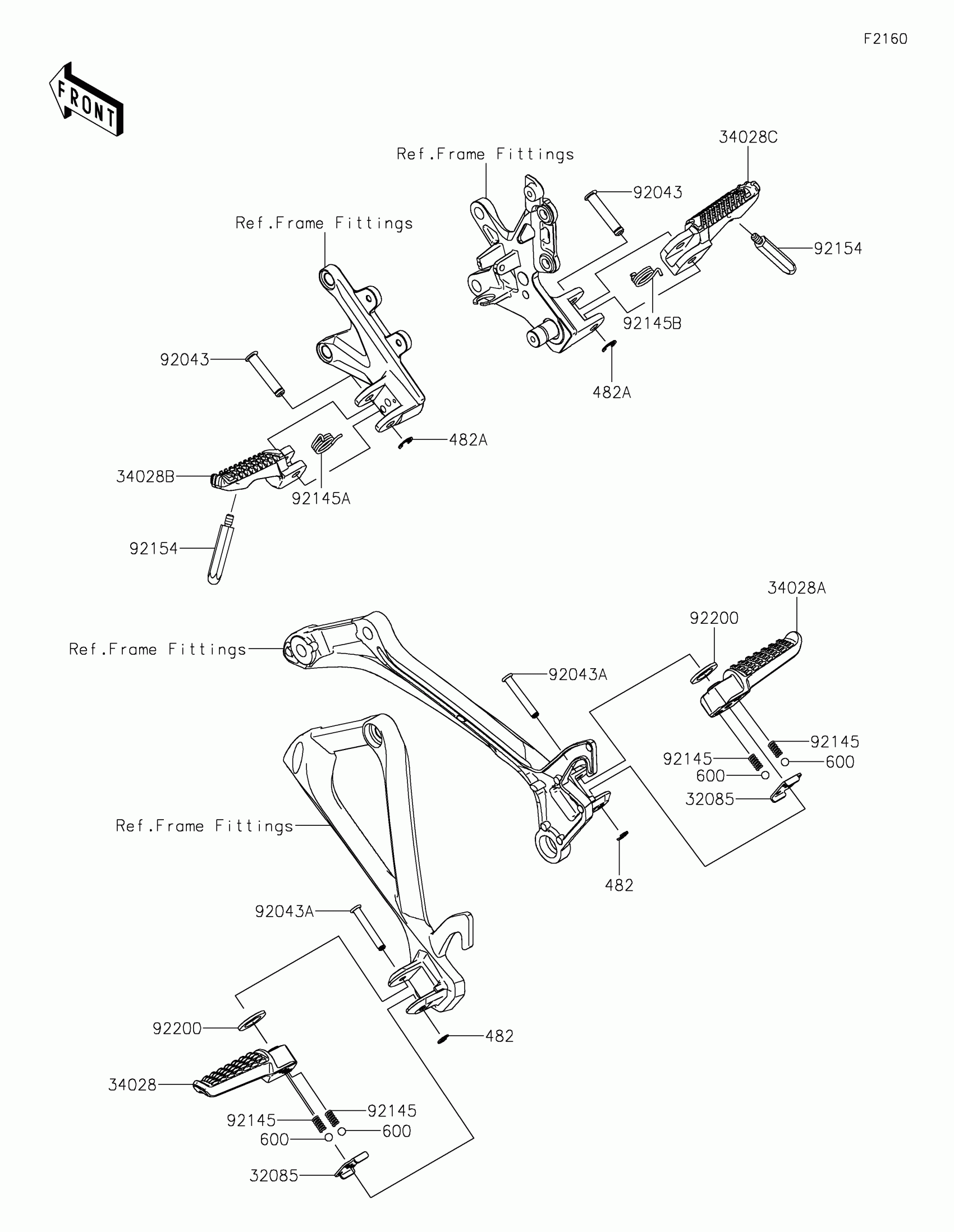

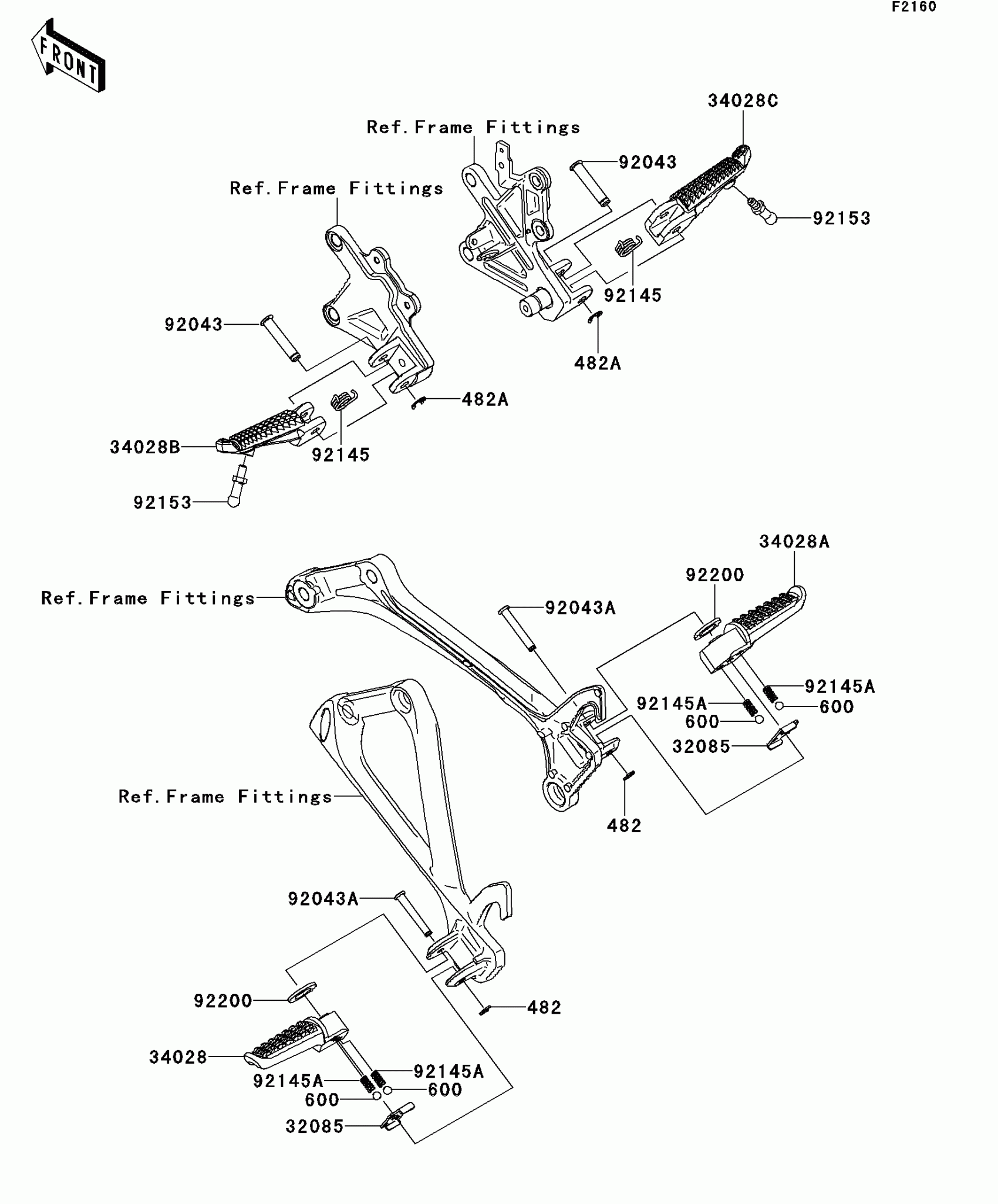

Kawasaki NINJA® ZX™-10R ABS Footrests Diagram

Description

Price

32085

STOPPER,REAR STEP

32085-0047

$5.57

34028

STEP,RR,LH

34028-0380

$79.46

34028A

STEP,RR,RH

34028-0381

$79.46

34028B

STEP,FR,LH

34028-0384

$71.91

34028C

STEP,FR,RH

34028-0385

$71.91

92043

PIN,8X40.5

92043-0877

$4.96

92043A

PIN,6X40

92043-1595

$2.34

92145

SPRING

92145-1319

$1.81

92145A

SPRING

92145-1950

$5.27

92145B

SPRING

92145-2218

$5.27

92154

BOLT,BANK SENSOR

92154-4254

$9.47

92200

WASHER,16X26X2.3

92200-0043

$7.65

482

CIRCLIP-TYPE-E

482EA5000

$1.34

482A

CIRCLIP-TYPE-E

482EA7000

$3.92

600

BALL-STEEL,1/4

600A0800

$0.62
