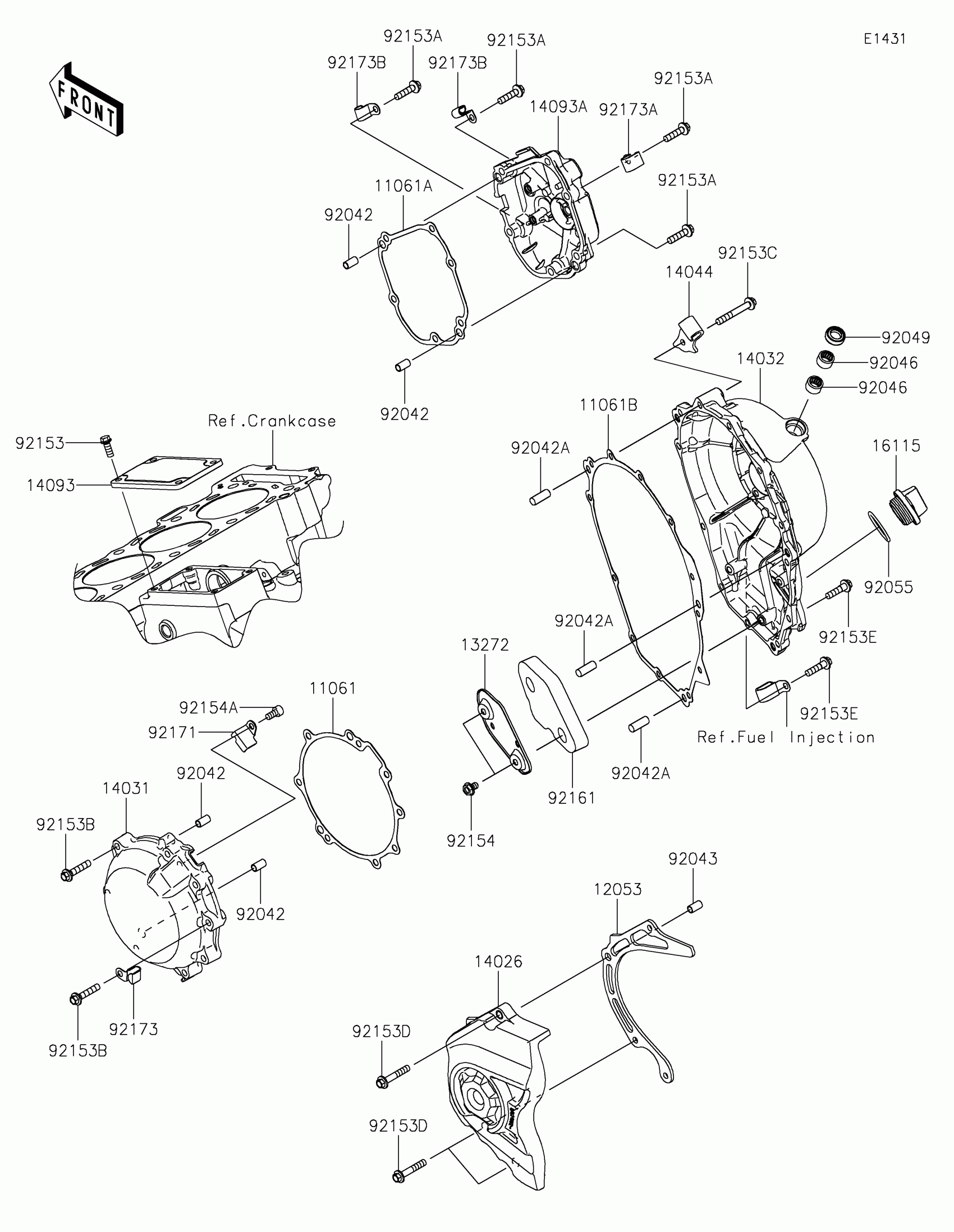

Kawasaki NINJA® ZX™-10R ABS Engine Cover(s) Diagram

#

Description
Price

11061

GASKET,GENERATOR COVER

11061-0441

$13.90

11061A

GASKET,PULSER COVER

11061-0442

$9.91

11061B

GASKET

11061-0735

$30.11

12053

GUIDE-CHAIN

12053-0176

$16.08

13272

PLATE

13272-0892

$7.71

14026

COVER-CHAIN

14026-0083

$102.75

14031

COVER-GENERATOR

14031-0555

$154.61

14032

COVER-CLUTCH

14032-0560

$237.12

14044

HOLDER-CABLE

14044-0046

$5.53

14092

COVER,PULSER

14092-0152

$84.29

14092A

COVER,STARTER

14092-0153

$20.53

16115

CAP-OIL FILLER

16115-1009

$14.30

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92042A

PIN,DOWEL,8X22

92042-044

$5.52

92046

BEARING-NEEDLE,HK1210FM

92046-0034

$15.63

92049

SEAL-OIL,CLUTCH RELEASE

92049-1475

$4.18

92055

RING-O,31.5X2.6

92055-049

$4.31

92152

COLLAR,7.5X9.5X12

92152-0887

$3.35

92153

BOLT,6X16

92153-0695

$3.07

92153A

BOLT,FLANGED,6X25

92153-1569

$1.78

92153B

BOLT,FLANGED,6X30

92153-1574

$2.15

92153C

BOLT,FLANGED,6X45

92153-1575

$2.15

92153D

BOLT,FLANGED,6X35

92153-1579

$2.15

92153E

BOLT,FLANGED,6X25

92153-1716

$1.78

92154

BOLT,SOCKET,6X12

92154-0040

$2.12

92154A

BOLT,FLANGED,6X10

92154-0492

$5.65

92161

DAMPER,CLUTCH COVER

92161-0873

$15.80

92171

CLAMP

92171-0534

$6.38

92171A

CLAMP

92171-0938

$3.90
