Cowling Lowers(LNFAN-LPFAL)

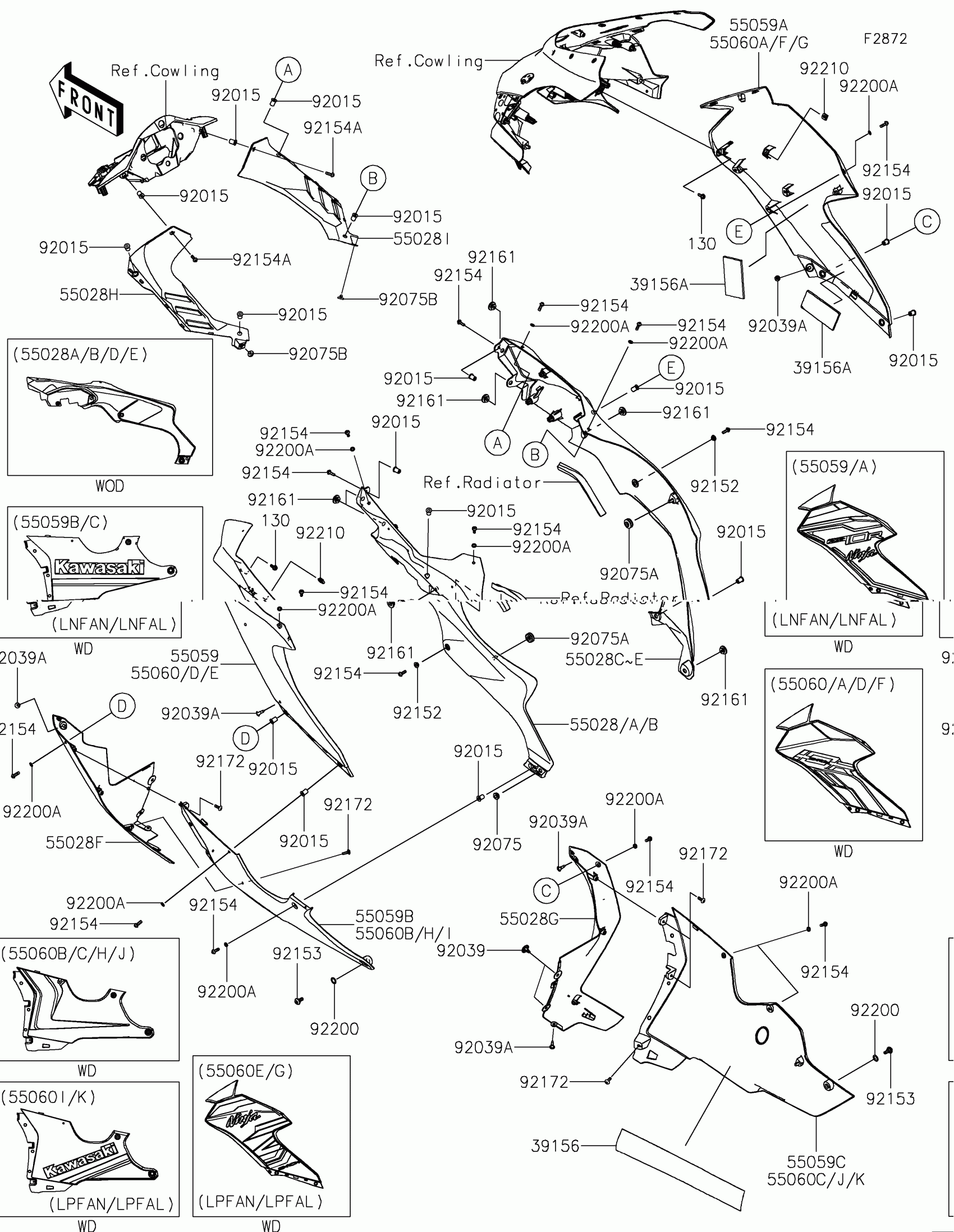

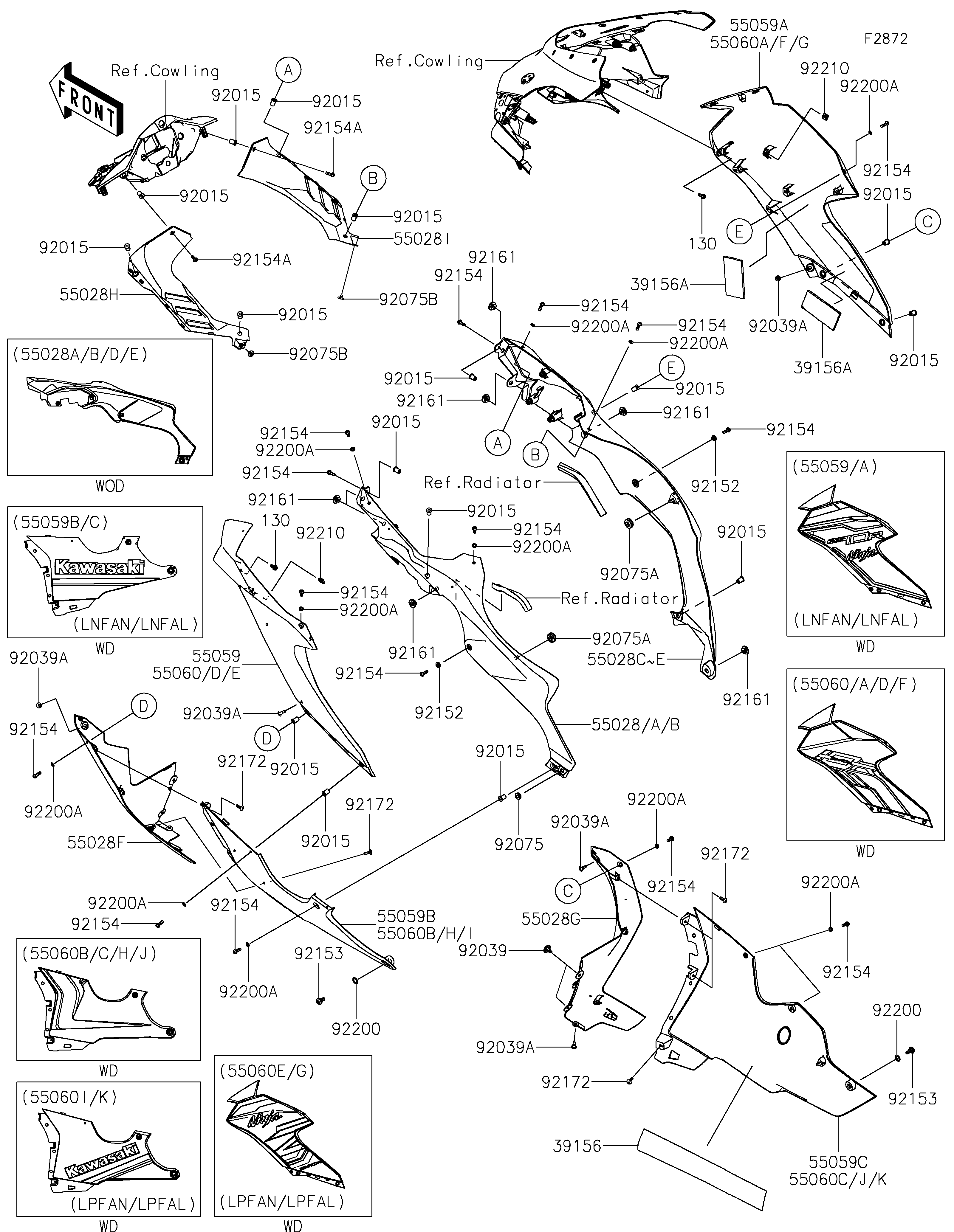

Kawasaki Ninja® ZX-10R ABS Cowling Lowers(LNFAN-LPFAL) Diagram
#
39156
PAD,49X400X0.3
39156-0753
$17.74
39156A
PAD,100X50X5
39156-2543
$2.64
55028
COWLING,SIDE,LH,M.M.G.GRAY
55028-0759-68P
$242.22
55028A
COWLING,SIDE,LH,L.GREEN
55028-0759-777
$242.22
55028B
COWLING,SIDE,LH,EBONY
55028-0759-H8
$242.23
55028C
COWLING,SIDE,RH,M.M.G.GRAY
55028-0760-68P
$255.31
55028D
COWLING,SIDE,RH,L.GREEN
55028-0760-777
$255.31
55028E
COWLING,SIDE,RH,EBONY
55028-0760-H8
$255.31
55028F
COWLING,FR,LWR,LH
55028-0765
$59.51
55028G
COWLING,FR,LWR,RH
55028-0766
$55.38
55028H
COWLING,INNER,LH
55028-0767
$30.76
55028I
COWLING,INNER,RH
55028-0768
$30.76
55059
COWLING,WINGLET,LH,EBONY
55059-5406-H8
$465.67
55059A
COWLING,WINGLET,RH,EBONY
55059-5407-H8
$463.85
55059B
COWLING,LWR,LH,P.B.WHITE
55059-5408-54X
$306.75
55059C
COWLING,LWR,RH,P.B.WHITE
55059-5409-54X
$311.42
55060
COWLING,WINGLET,LH,M.M.G.GRAY
55060-5109-68P
$366.10
55060A
COWLING,WINGLET,RH,M.M.G.GRAY
55060-5110-68P
$364.61
55060B
COWLING,LWR,LH,M.D.BLACK
55060-5111-17K
$281.03
55060C
COWLING,LWR,RH,M.D.BLACK
55060-5112-17K
$293.07
55060D
COWLING,WINGLET,LH,M.M.G.GRAY
55060-5314-68P
$420.23
55060E
COWLING,WINGLET,LH,EBONY
55060-5315-H8
$533.48
55060F
COWLING,WINGLET,RH,M.M.G.GRAY
55060-5317-68P
$420.23
55060G
COWLING,WINGLET,RH,EBONY
55060-5318-H8
$533.48
55060H
COWLING,LWR,LH,M.D.BLACK
55060-5319-17K
$324.61
55060I
COWLING,LWR,LH,L.GREEN
55060-5321-777
$337.52
55060J
COWLING,LWR,RH,M.D.BLACK
55060-5322-17K
$331.16
55060K
COWLING,LWR,RH,L.GREEN
55060-5324-777
$344.06
92015
NUT,WELL,5MM
92015-1757
$7.29
92039
RIVET,HOLE 8MM
92039-0014
$3.29
92039A
RIVET
92039-0068
$2.97
92075
DAMPER,6X16X7
92075-1011
$7.33
92075A
DAMPER
92075-1067
$4.69
92075B
DAMPER,BOOST SENSOR
92075-2113
$1.15
92152
COLLAR
92152-2740
$6.52
92153
BOLT,SOCKET,6MM
92153-0489
$3.73
92154
BOLT,SOCKET,5X16
92154-0209
$2.75
92154A
BOLT,SOCKET,5X16
92154-1701
$1.19
92161
DAMPER,6X20X7.5
92161-1937
$1.94
92172
SCREW,TAPPING,5X16
92172-0175
$1.78
92200
WASHER,10.4X15.9X0.5
92200-0157
$2.15
92200A
WASHER,5.2X10X1.0
92200-1820
$0.63
92210
NUT
92210-0571
$3.52
130
BOLT-FLANGED,5X12
130BA0512
$2.22
