Description

Price

13087

HUB-CLUTCH

13087-0010

$130.85

13087A

HUB-CLUTCH

13087-0011

$193.80

13088

PLATE-FRICTION

13088-0003

$18.69

13088A

PLATE-FRICTION

13088-0013

$18.69

13089

PLATE-CLUTCH,T=2.3

13089-0008

Unavailable

13089A

PLATE-CLUTCH,T=2.6

13089-0009

$12.86

13089B

PLATE-CLUTCH,T=2.9

13089-1093

$12.41

13091

HOLDER,CLUTCH SPRING

13091-1840

$4.65

13095

HOUSING-COMP-CLUTCH

13095-0558

$477.11

13102

RELEASE-COMP-CLUTCH

13102-0041

$60.60

13187

PLATE-CLUTCH OPERATING

13187-0006

$84.73

39130

SPRING-LEAF

39130-1078

$9.89

39130A

SPRING-LEAF

39130-1079

$9.89

46102

ROD

46102-0047

$67.80

92026

SPACER

92026-0164

$19.32

92045

BEARING-BALL,6903/2A

92045-1053

$26.91

92046

BEARING-NEEDLE

92046-0041

$22.40

92139

BUSHING,25X38X17.3

92139-0304

$37.67

92144

SPRING,FRICTION PLATE

92144-1854

$8.90

92145

SPRING,CLUTCH

92145-0220

$7.20

92145A

SPRING,RELEASE-COMP

92145-0325

$3.87

92152

COLLAR

92152-0866

$41.41

92153

BOLT

92153-0797

$10.37

92200

WASHER,FRICTION PLATE

92200-1260

$10.28

92200A

WASHER,12X18.5X0.5

92200-1487

$2.75

92210

NUT

92210-0152

$10.11

120

BOLT-SOCKET,6X20

120Q0620

$1.20

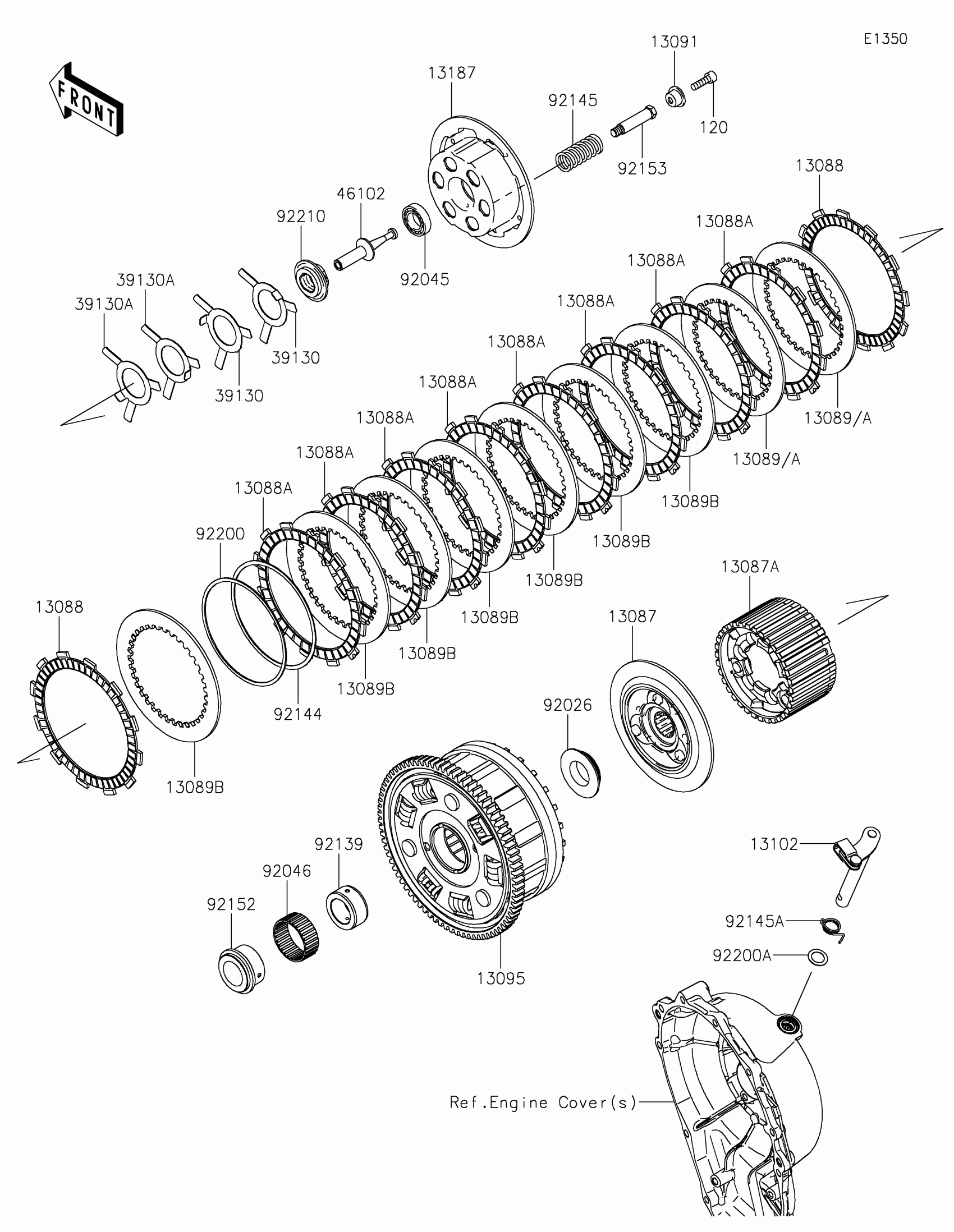

Kawasaki NINJA® ZX™-10R ABS Clutch Diagram

HUB-CLUTCH

HUB-CLUTCH

PLATE-FRICTION

PLATE-FRICTION

PLATE-CLUTCH,T=2.3

PLATE-CLUTCH,T=2.6

PLATE-CLUTCH,T=2.9

HOLDER,CLUTCH SPRING

HOUSING-COMP-CLUTCH

RELEASE-COMP-CLUTCH

PLATE-CLUTCH OPERATING

SPRING-LEAF

SPRING-LEAF

ROD

SPACER

BEARING-BALL,6903/2A

BEARING-NEEDLE

BUSHING,25X38X17.3

SPRING,FRICTION PLATE

SPRING,CLUTCH

SPRING,RELEASE-COMP

COLLAR

BOLT

WASHER,FRICTION PLATE

WASHER,12X18.5X0.5

NUT

BOLT-SOCKET,6X20
