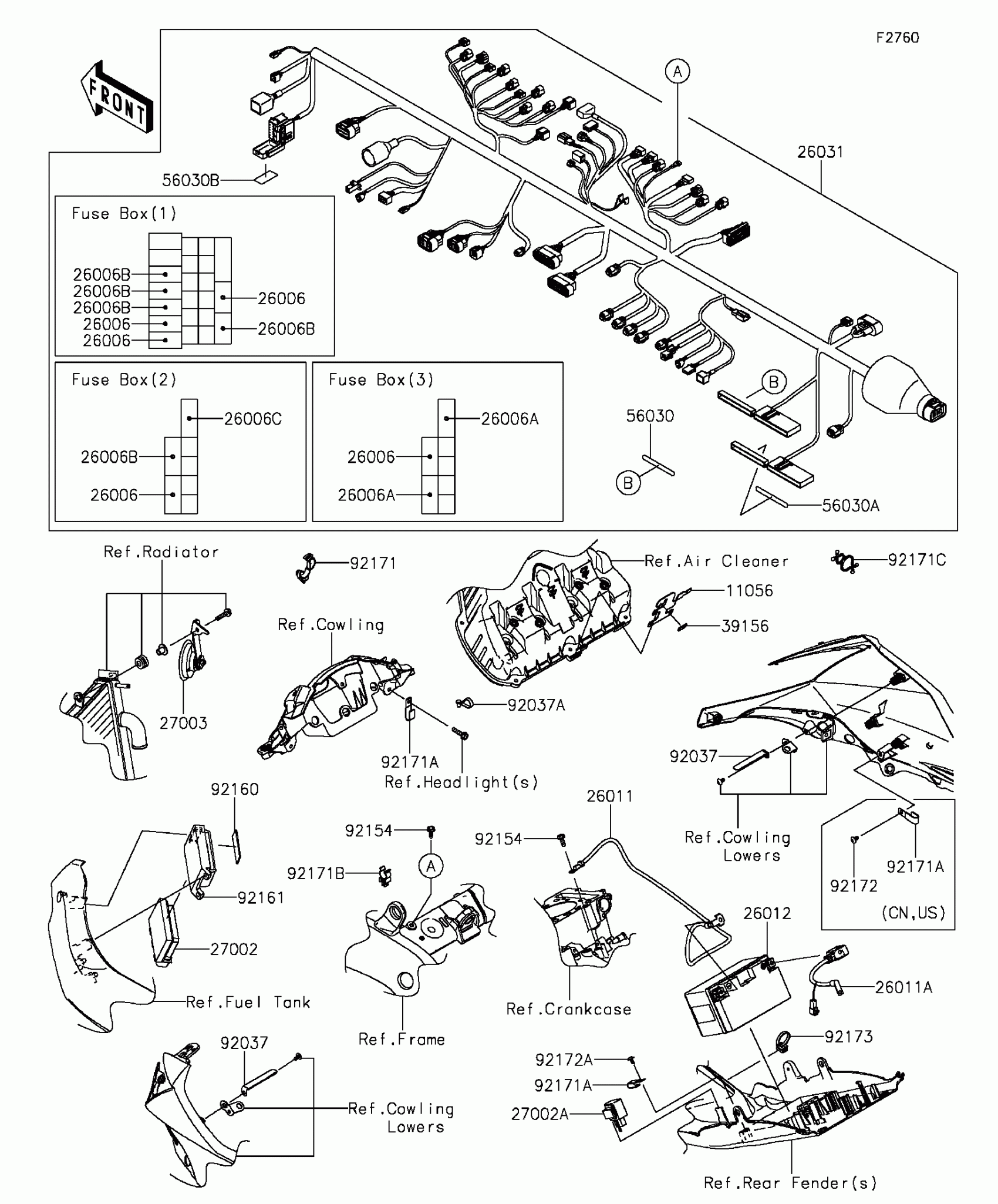

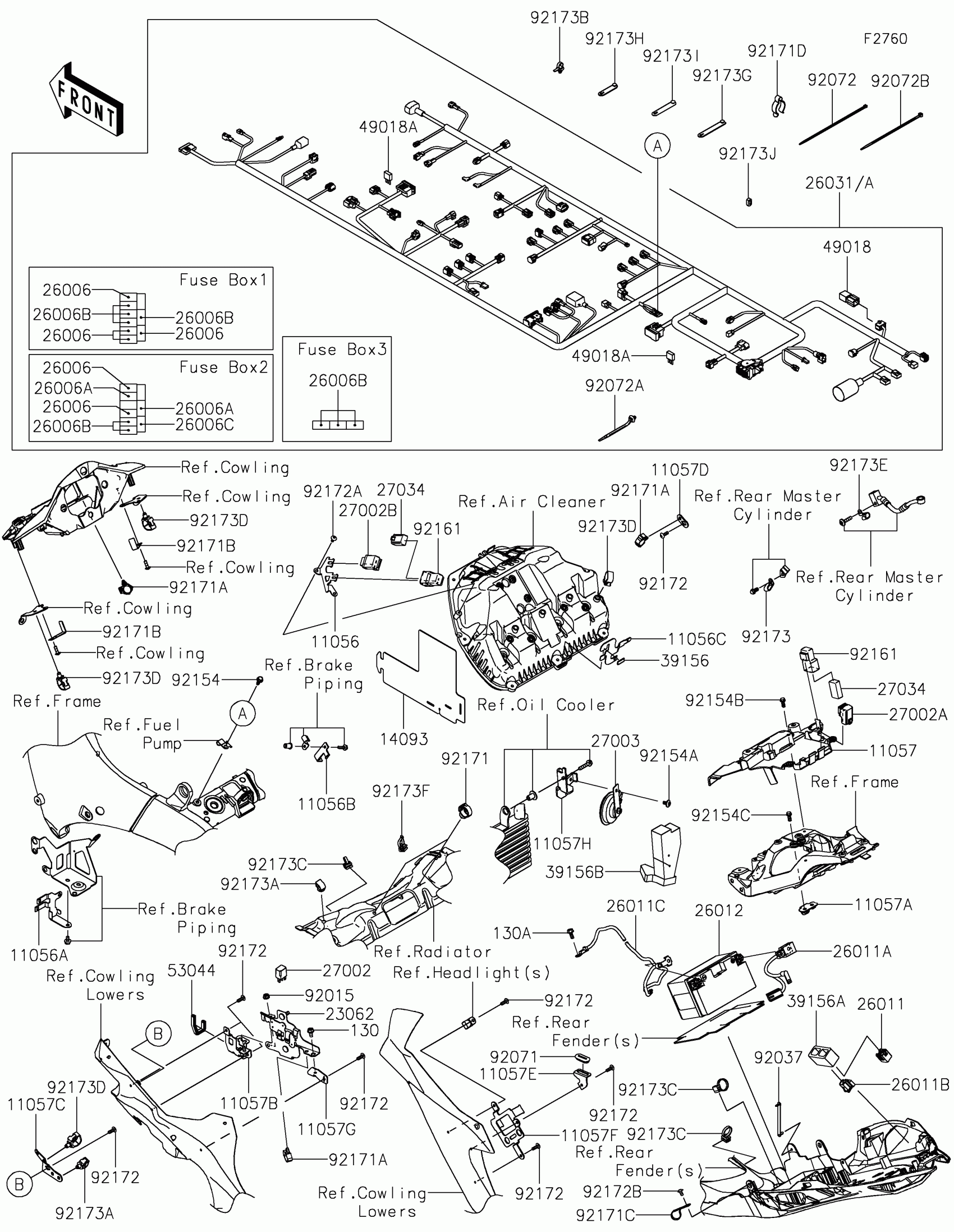

Kawasaki Ninja® ZX™-10R ABS Chassis Electrical Equipment Diagram

Description

Price

11056

BRACKET

11056-0384

$6.22

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,25A,NATURAL

26006-0020

$6.57

26006B

FUSE,MINI BLADE,10A,RED

26006-1078

$4.87

26006C

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26011

WIRE-LEAD,BATTERY(-)

26011-0298

$46.32

26011A

WIRE-LEAD,BATTERY(+)

26011-0316

$43.92

26012

BATTERY,YTZ10S,12V 8.6AH

26012-0564

Unavailable

26031

HARNESS,MAIN

26031-1717

$1,034.88

27002

RELAY-ASSY

27002-0007

Unavailable

27002A

RELAY-ASSY,SIGNAL LAMP

27002-1097

$47.41

27003

HORN

27003-0073

$83.74

39156

PAD,HEAT GUARD

39156-0389

$2.13

56030

LABEL,FUSE BOX2

56030-0399

$4.37

56030A

LABEL,FUSE BOX3

56030-0400

$4.37

56030B

LABEL,FUSE BOX1

56030-0755

$4.37

92037

CLAMP

92037-1679

$5.52

92037A

CLAMP,SPEED,L=80.5

92037-1903

$7.84

92154

BOLT,FLANGED,6X16

92154-0551

$1.63

92160

DAMPER

92160-1075

$6.57

92161

DAMPER,RELAY BOX

92161-0909

$19.83

92171

CLAMP,CLIP,DIA=20

92171-0068

$2.80

92171A

CLAMP

92171-0305

$7.21

92171A

CLAMP

92171-0305

$7.21

92171B

CLAMP

92171-0687

$11.30

92171C

CLAMP

92171-1176

$4.34

92172

SCREW,TAPPING,5X10

92172-0262

$1.34

92172A

SCREW,TAPPING,5X10

92172-0335

$2.15

92173

CLAMP

92173-0791

$11.16
