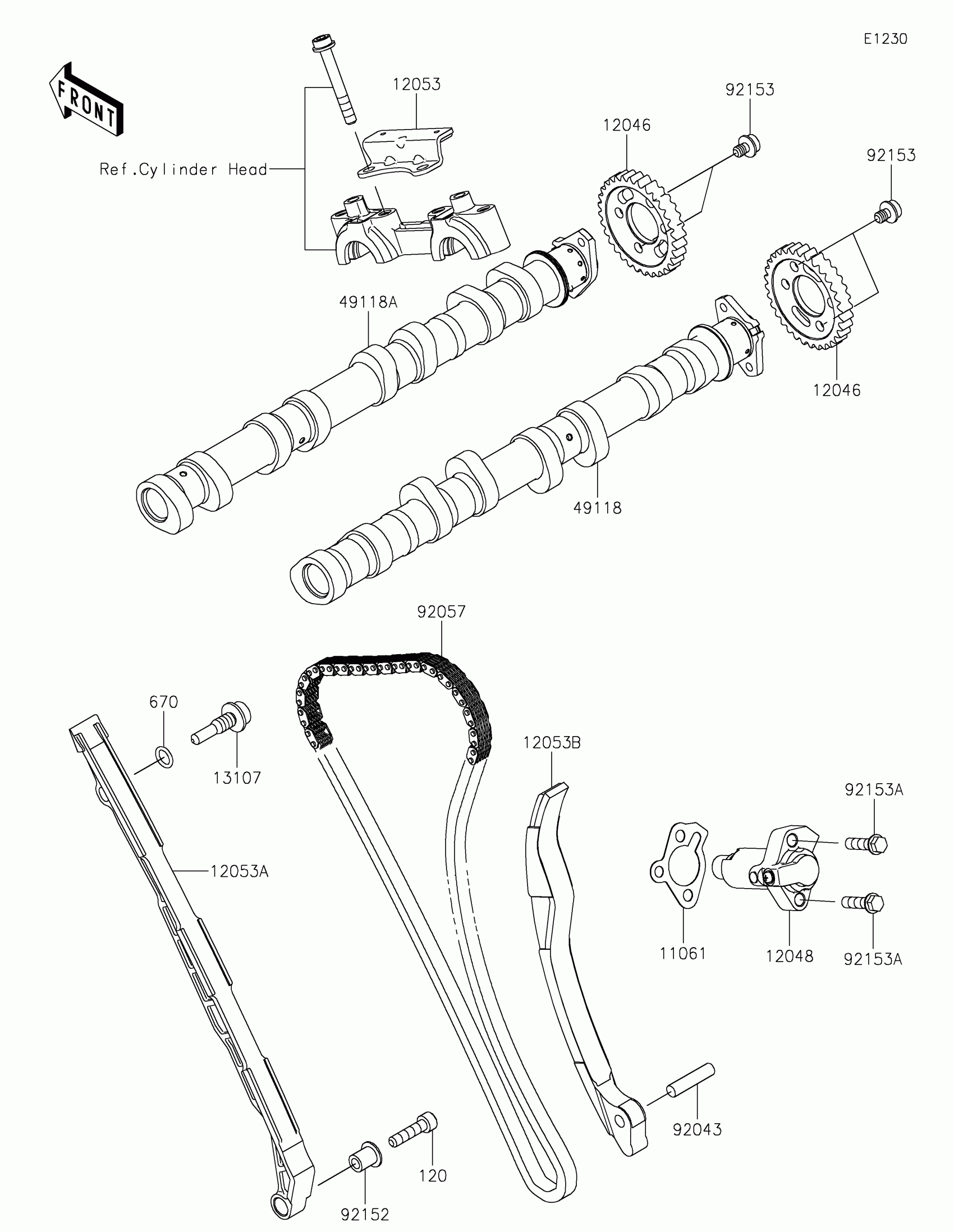

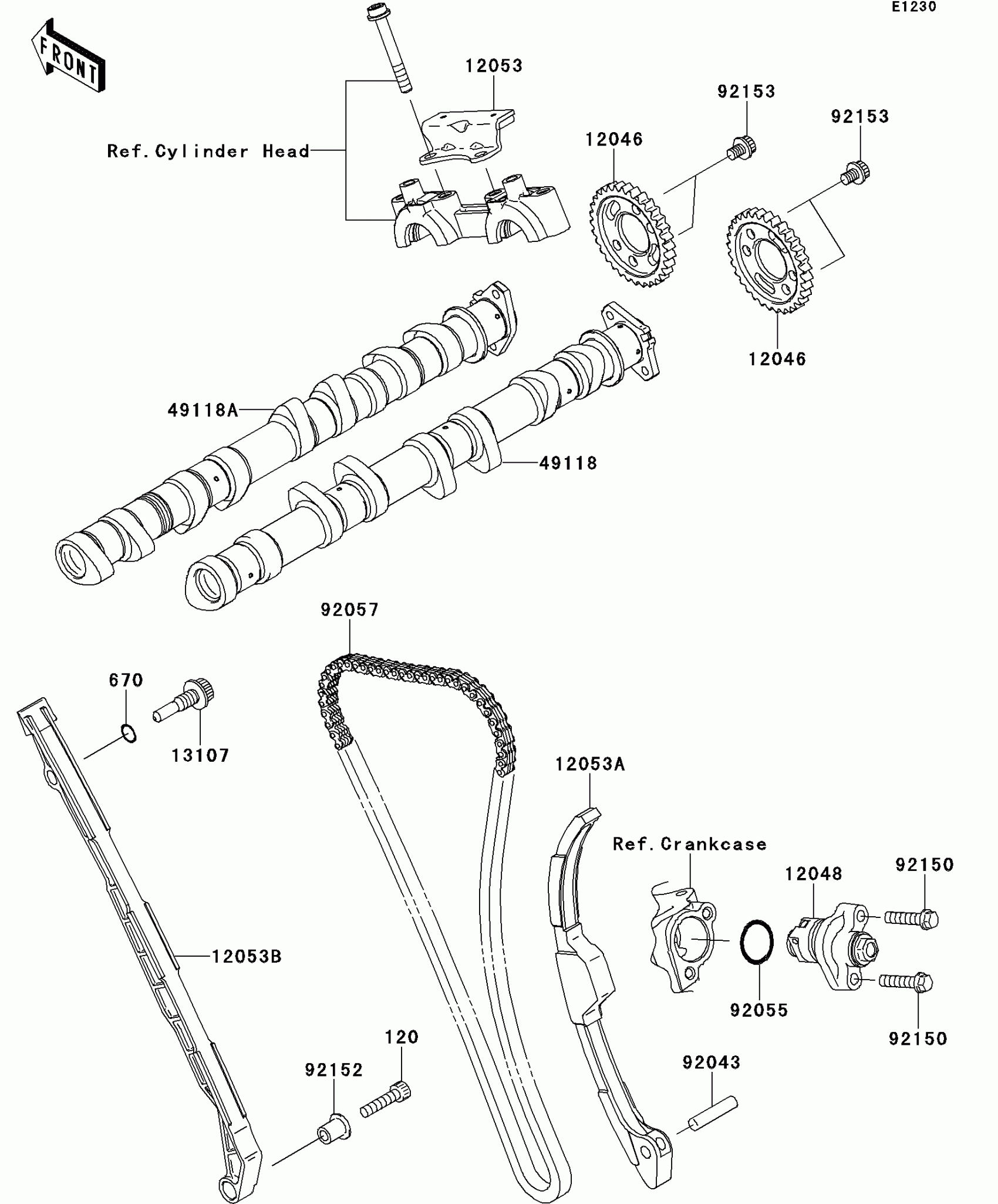

Kawasaki NINJA® ZX™-10R ABS Camshaft(s)/Tensioner Diagram

Description

Price

12046

SPROCKET,32T

12046-0098

$54.81

12048

TENSIONER-ASSY

12048-0088

$135.39

12053

GUIDE-CHAIN,UPP

12053-0173

$69.66

12053A

GUIDE-CHAIN,RR

12053-0174

$120.31

12053B

GUIDE-CHAIN,FR

12053-0175

$78.82

13107

SHAFT,CHAIN GUIDE

13107-0157

$10.65

49118

CAMSHAFT-COMP,INTAKE

49118-0718

$419.89

49118A

CAMSHAFT-COMP,EXHAUST

49118-0719

$419.89

92043

PIN,7X30.7

92043-0062

$5.25

92055

RING-O,20.8X1.9

92055-0053

$4.83

92057

CHAIN,98XRH2015-126M

92057-0202

$110.12

92150

BOLT,FLANGED-SMALL,6X25

92150-1779

Unavailable

92152

COLLAR

92152-0413

$8.68

92153

BOLT,FLANGED,6X8

92153-0455

$2.55

120

BOLT-SOCKET,6X25

120CA0625

$2.06

670

O RING,9MM

670D1509

$4.69
