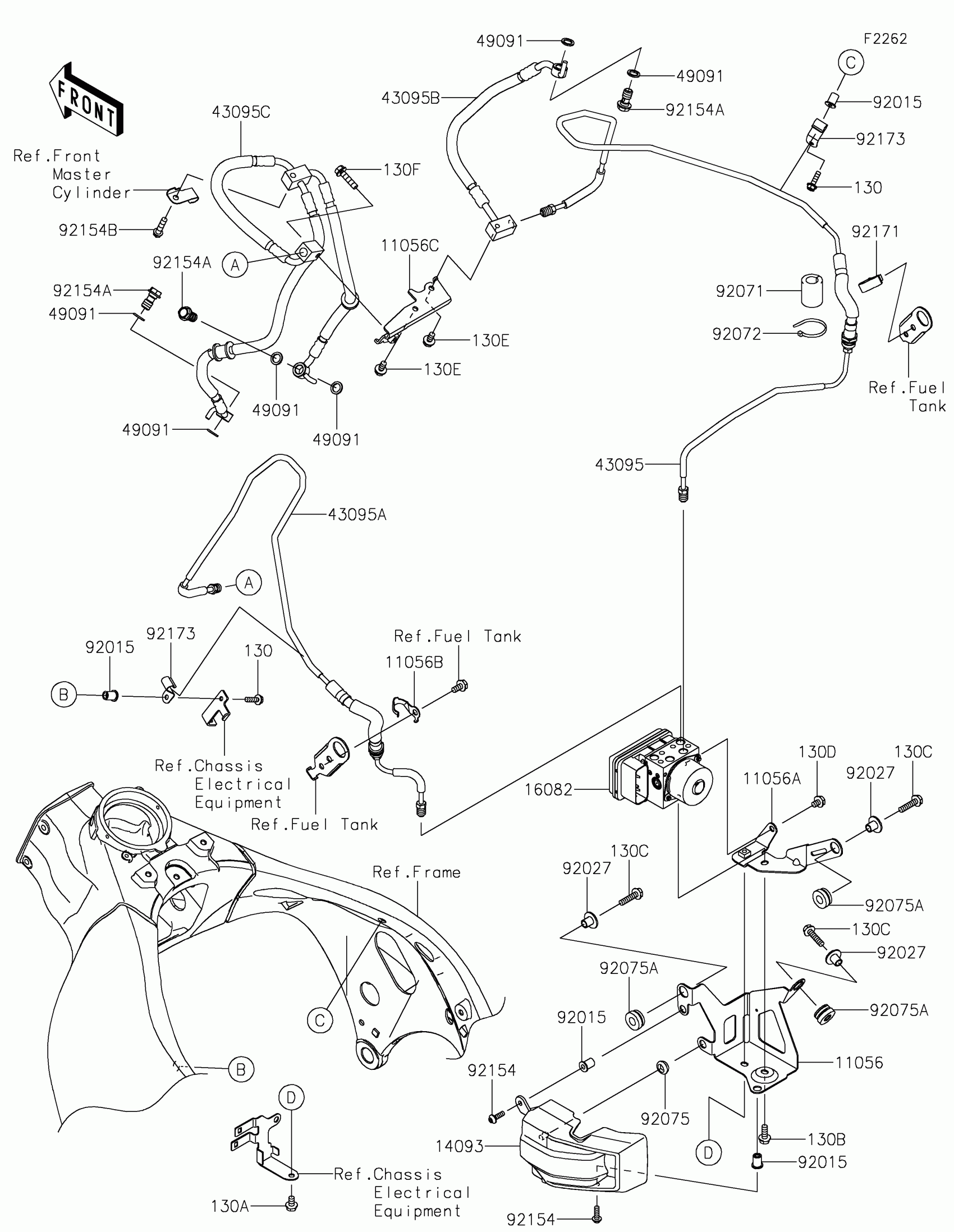

Kawasaki NINJA® ZX™-10R ABS Brake Piping Diagram

#

Description
Price

11056

BRACKET,ABS UNIT,MAIN

11056-0325

$22.68

11056A

BRACKET,ABS UNIT,SUB

11056-0326

$11.77

11056B

BRACKET

11056-0327

$7.24

11056C

BRACKET

11056-0334

$10.99

14092

COVER,ABS UNIT

14092-0200

$14.58

16082

PUMP-ASSY-OIL,ABS

16082-0058

$1,629.06

43095

HOSE-BRAKE,M/CYLINDER-ABS HU

43095-0591

$120.05

43095A

HOSE-BRAKE,ABS HU-FR CALIPER

43095-0592

$91.90

43095B

HOSE-BRAKE,CALIPER-ABS HU

43095-0647

$145.46

43095C

HOSE-BRAKE,ABS HU-M/CYLINDER

43095-0648

$40.78

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92015

NUT,WELL,5MM

92015-1757

$7.29

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$5.57

92071

GROMMET

92071-1143

$6.51

92072

BAND,L=148

92072-3768

$3.92

92075

DAMPER,6X16X7

92075-1011

$7.33

92075A

DAMPER

92075-277

$2.84

92153

BOLT,OIL,L=23

92153-0627

$5.48

92153A

BOLT,FLANGED,6X25

92153-1795

$2.15

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92171

CLAMP

92171-0782

$3.90

92173

CLAMP

92173-0786

$5.65

130

BOLT-FLANGED,5X16

130BA0516

$0.86

130A

BOLT-FLANGED,6X10

130BA0610

$1.20

130B

BOLT-FLANGED,6X16

130BA0616

$1.20

130C

BOLT-FLANGED,6X25

130BA0625

$1.20

130D

BOLT-FLANGED,6X8

130BB0608

$6.07

132

BOLT-FLANGED-SMALL,6X22

132BA0622

$1.94
