Description

Price

11010

FILTER-ASSY-AIR

11010-0713

$411.26

11013

ELEMENT-AIR FILTER

11013-0041

$63.97

11061

GASKET

11061-0444

$4.06

11061A

GASKET

11061-0445

$5.60

13280

HOLDER

13280-0712

$21.41

14037

SCREEN

14037-0107

$44.49

14073

DUCT,SUB FUNNEL

14073-0294

$16.18

14073A

DUCT

14073-0295

$20.51

14073B

DUCT,FUNNEL,#1

14073-0712

$13.30

14073C

DUCT,FUNNEL,#3

14073-0713

$13.30

16073

INSULATOR

16073-0129

$6.00

16126

VALVE,AIR SWITCHING

16126-0038

$189.89

39045

DUCT-ASSY

39045-0056

$194.91

39156

PAD

39156-0922

$4.06

49033

NOZZLE-INJECTION

49033-0027

$132.97

49056

PIPE-INJECTION

49056-0032

$16.76

92005

FITTING

92005-0125

$11.34

92037

CLAMP,TUBE

92037-147

$7.34

92037A

CLAMP,L=45

92037-1539

$5.00

92055

RING-O,INJECTION NOZZLE

92055-0124

$2.97

92066

PLUG

92066-0717

$7.64

92066A

PLUG,DRAIN

92066-1211

$8.51

92093

SEAL

92093-0173

$8.22

92093A

SEAL

92093-0175

$1.93

92093B

SEAL

92093-0176

$3.62

92093C

SEAL

92093-0177

$17.74

92093D

SEAL

92093-0573

$12.46

92152

COLLAR,6.5X10.5X13.1

92152-0547

$5.65

92153

BOLT,FLANGED,5MM

92153-0361

$4.18

92154

BOLT,SOCKET,6X30

92154-0435

$1.63

92154A

BOLT,FLANGED,BUTTON,6X18

92154-0996

$2.26

92160

DAMPER

92160-1162

$5.00

92161

DAMPER

92161-0973

$15.01

92161A

DAMPER

92161-0974

$15.01

92161B

DAMPER

92161-0984

$14.16

92170

CLAMP

92170-1060

$8.10

92171

CLAMP

92171-0391

$4.15

92172

SCREW,TAPPING,5X20

92172-0009

$2.80

92172A

SCREW,TAPPING,5X16

92172-0482

$1.19

92172B

SCREW,TAPPING,5X20

92172-0483

Unavailable

92173

CLAMP

92173-0224

$30.40

92192

TUBE,7X10X500

92192-0156

$18.42

92192A

TUBE

92192-0886

$19.83

92192B

TUBE,12X17.6X38

92192-0887

$16.21

92192C

TUBE,ASV-A/C

92192-0888

$14.44

92192D

TUBE,BREATHER

92192-0889

$13.37

92200

WASHER,6.5X22X1.6

92200-1087

$3.94

670

O RING,8MM

670E1508

$1.82

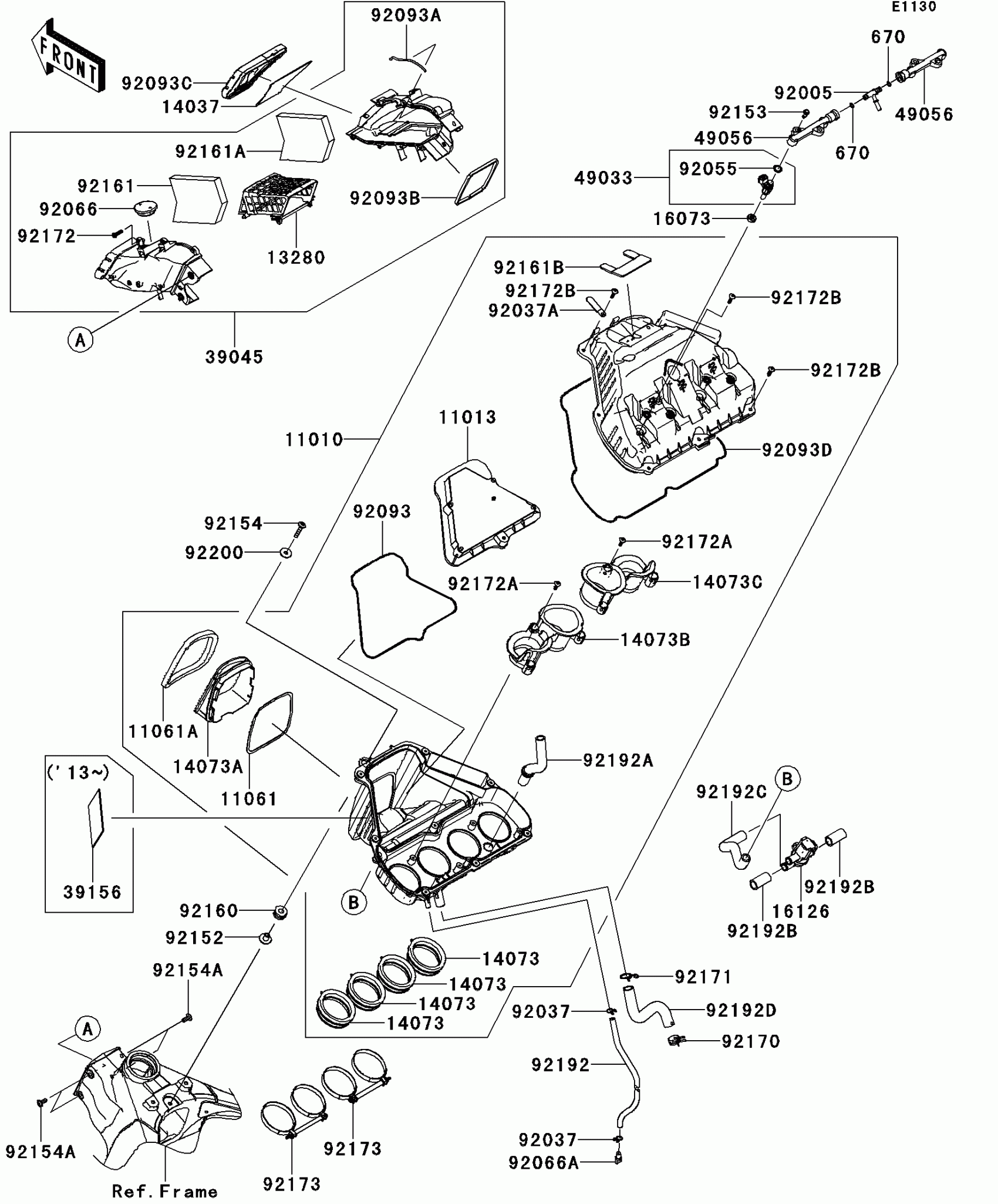

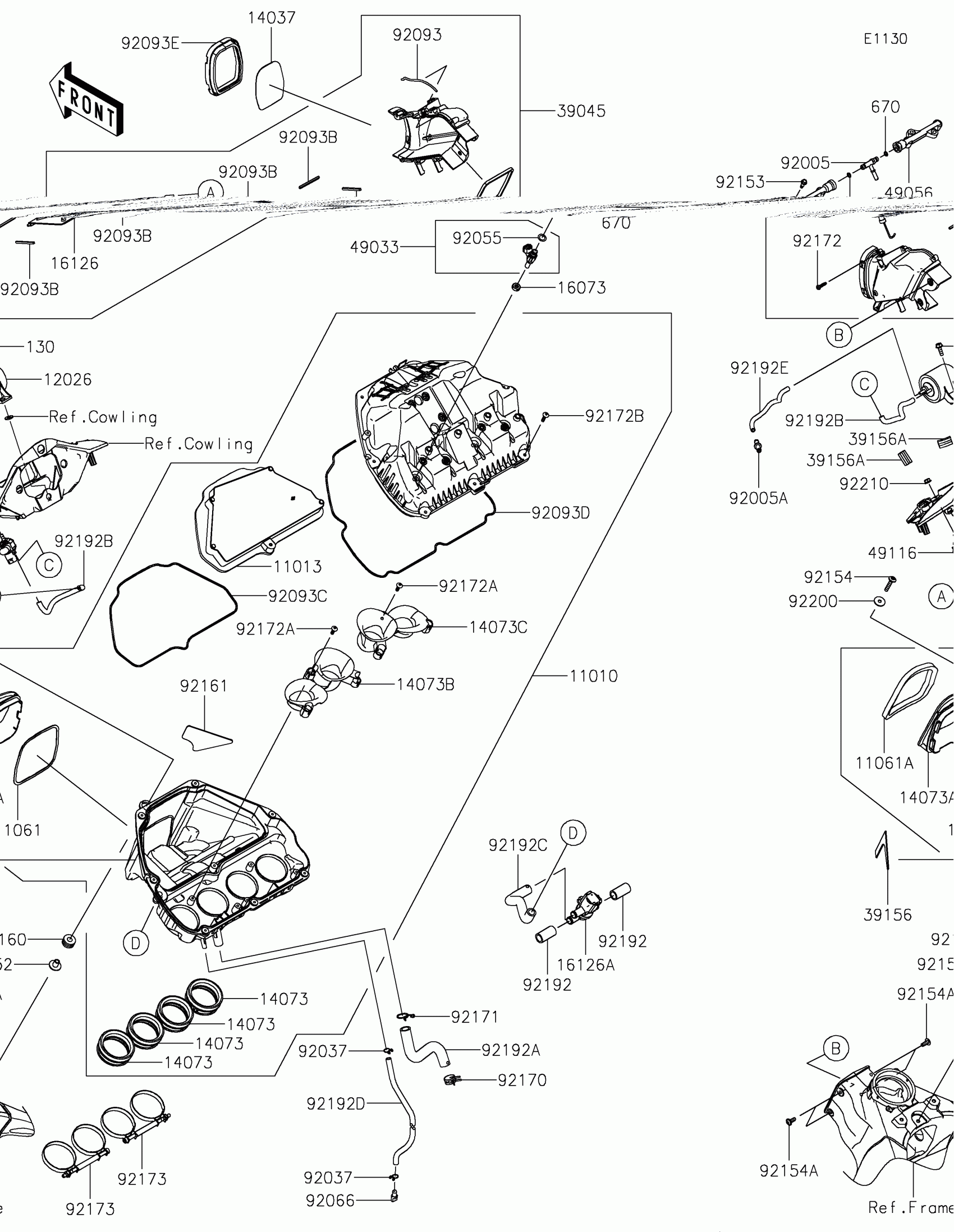

Kawasaki NINJA® ZX™-10R ABS Air Cleaner Diagram

FILTER-ASSY-AIR

ELEMENT-AIR FILTER

GASKET

GASKET

HOLDER

SCREEN

DUCT,SUB FUNNEL

DUCT

DUCT,FUNNEL,#1

DUCT,FUNNEL,#3

INSULATOR

VALVE,AIR SWITCHING

DUCT-ASSY

PAD

NOZZLE-INJECTION

PIPE-INJECTION

FITTING

CLAMP,TUBE

CLAMP,L=45

RING-O,INJECTION NOZZLE

PLUG

PLUG,DRAIN

SEAL

SEAL

SEAL

SEAL

SEAL

COLLAR,6.5X10.5X13.1

BOLT,FLANGED,5MM

BOLT,SOCKET,6X30

BOLT,FLANGED,BUTTON,6X18

DAMPER

DAMPER

DAMPER

DAMPER

CLAMP

CLAMP

SCREW,TAPPING,5X20

SCREW,TAPPING,5X16

SCREW,TAPPING,5X20

CLAMP

TUBE,7X10X500

TUBE

TUBE,12X17.6X38

TUBE,ASV-A/C

TUBE,BREATHER

WASHER,6.5X22X1.6

O RING,8MM
