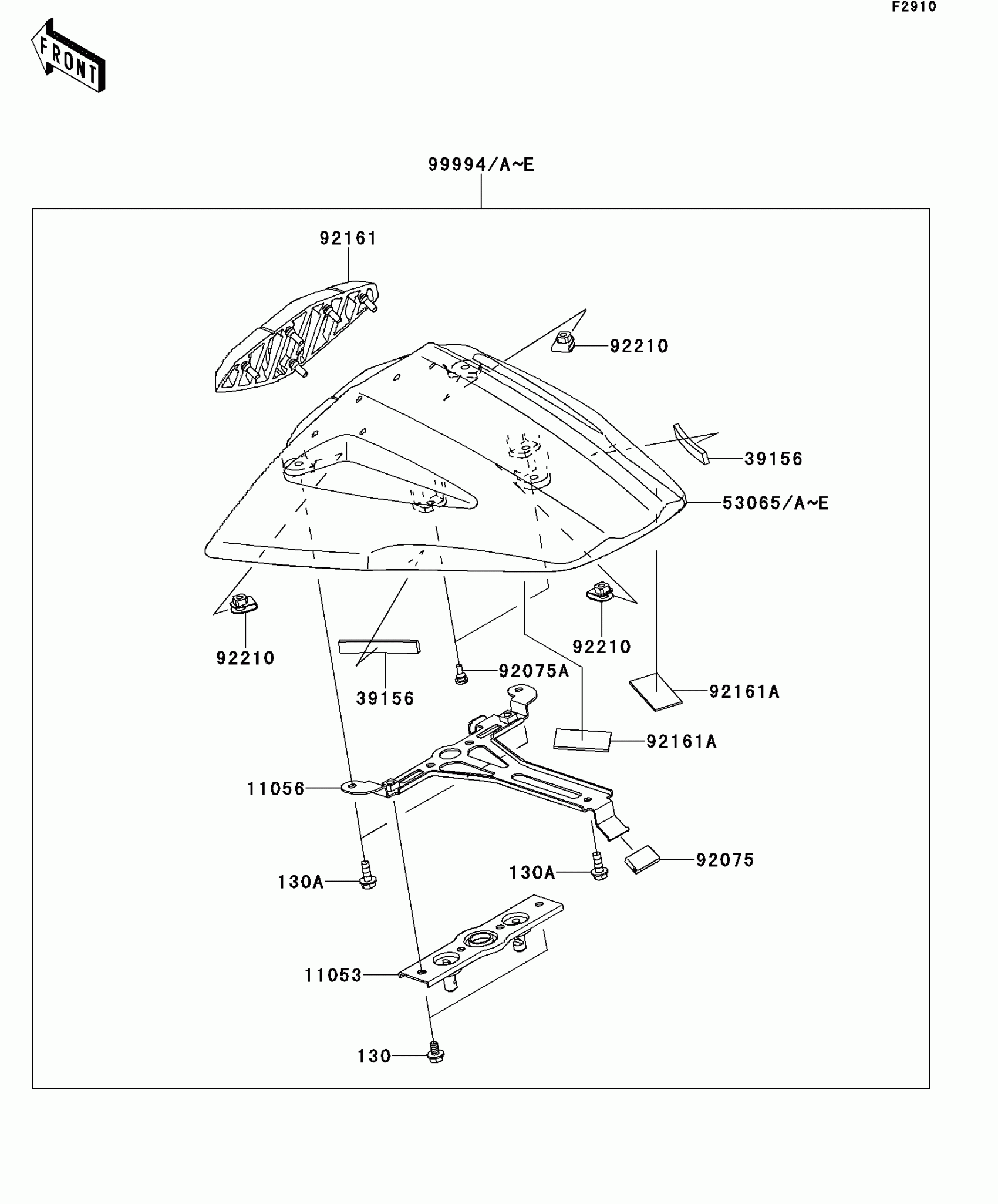

Kawasaki NINJA® ZX™-10R ABS Accessory(Single Seat Cover) Diagram

Description

Price

11053

BRACKET,SEAT LOCK STRIKER

11053-0386

$30.68

11056

BRACKET,SEAT COVER

11056-0240

$32.62

39156

PAD,10X70X4

39156-0735

$3.25

53065D

COVER SEAT,P.F.C.WHITE

53065-0020-46K

$239.33

53065E

COVER SEAT,L.GREEN

53065-0020-777

$239.36

92075

DAMPER

92075-1446

$4.17

92075A

DAMPER,6X10X15

92075-1808

$1.06

92161

DAMPER

92161-0921

$50.76

92161A

DAMPER,45X25X2

92161-1381

$1.66

92210

NUT,6MM

92210-0277

$3.74

99994D

KIT,SINGLE SEAT COVER,WHITE

99994-0320-46K

$271.27

99994E

KIT,SINGLE SEAT COVER,L.GREEN

99994-0320-777

$271.27

130

BOLT-FLANGED,6X10

130BA0610

$0.97

130A

BOLT-FLANGED,6X16

130BA0616

$0.97
